Product Details | TORSION HELICAL SPRING
5360-00-598-9051 An open-or close-wound coil spring consisting of one or more helical coils, wound from different shapes and types of material and finished at the ends, designed to exert pressure in a rotating direction around the coil axis. Excludes springs designed for thermal actuation (springs in which the torsion forces are counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.20210050018Guns, through 30mm53600034Coil, Flat, Leaf, and Wire Springs
Part Alternates: W799F113, W799FPART113, 113, 1K1520P77, 5360-00-598-9051, 00-598-9051, 5360005989051, 005989051
Hardware and Abrasives | Coil, Flat, Leaf, and Wire Springs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-598-9051 | 04228 ( SPRING, HELICAL, TORSION ) |
Drawings & Photos | NSN 5360-00-598-9051
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5360-00-598-9051
5360-00-598-9057, 5360-00-598-9069, 5360-00-598-9072, 5360-00-598-9076, 5360-00-598-9099
Technical Data | NSN 5360-00-598-9051
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| STYLE DESIGNATOR | C1A SINGLE TORSION LEFT HAND |
| INSIDE DIAMETER | 0.500 INCHES MINIMUM AND 0.531 INCHES MAXIMUM |
| SPRING FREE LENGTH | 0.563 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.614 INCHES MINIMUM AND 0.645 INCHES MAXIMUM |
| HOOK RADIUS | 0.068 INCHES NOMINAL FIRST END 0.047 INCHES NOMINAL BOTH ENDS |
| END LENGTH FROM SECOND BEND TO THIRD BEND OR END | 0.156 INCHES NOMINAL OVERALL |

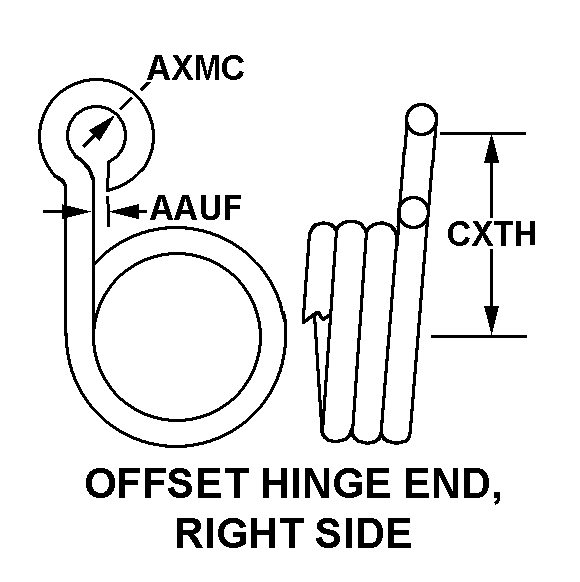

| END STYLE | G8 OFFSET HINGE END, RIGHT SIDE FIRST END G20 MACHINE LOOP END SECOND END |
| COIL HELIX DIRECTION | LEFT-HAND |
| COIL QUANTITY | 6 |
| END ANGULAR RELATIONSHIP | ENDS ANGLED ONE TO OTHER |
| MANUFACTURERS CODE | 28835 |
| DESIGN CONTROL REFERENCE | W799FPART113 |
Restrictions/Controls & Freight Information | NSN 5360-00-598-9051
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177940 | SPRINGS:SPRINGS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
