Product Details | NONMETALLIC BUSHING
5365-01-230-5290 An item, made of rubber or plastic, usually cylindrical, with or without a flange, having one or more holes extending through its entire length, usually parallel to its axis. The overall length must exceed 25 percent of its diameter or a distance across the peripheral flats for items without a flange. For items formed of other material see BUSHING, SLEEVE. Excludes BUMPER, NONMETALLIC and GROMMET NONMETALLIC.
Part Alternates: 32294781, 3229478-1, 5365-01-230-5290, 01-230-5290, 5365012305290, 012305290
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 APR 1986 | 01-230-5290 | 39929 ( BUSHING, NONMETALLIC ) |

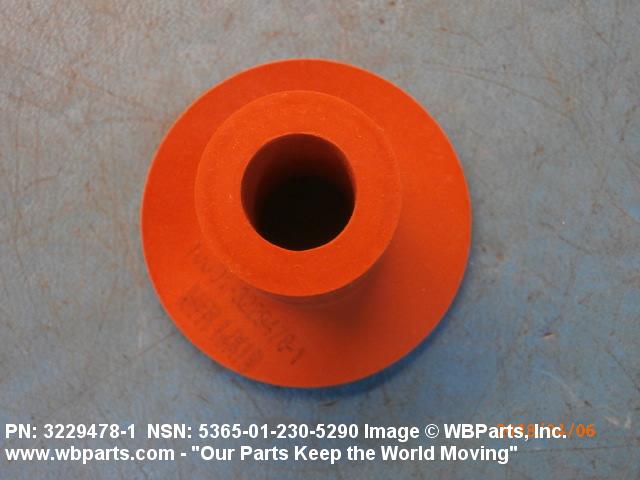

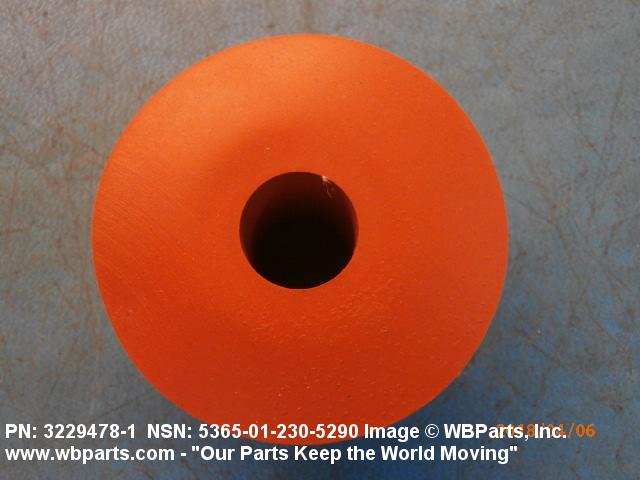

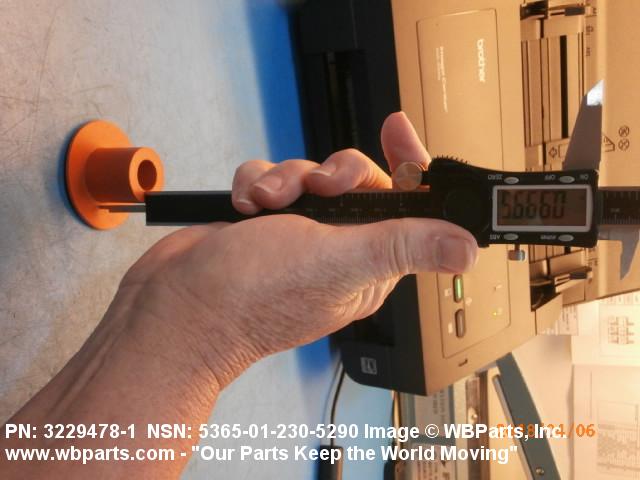

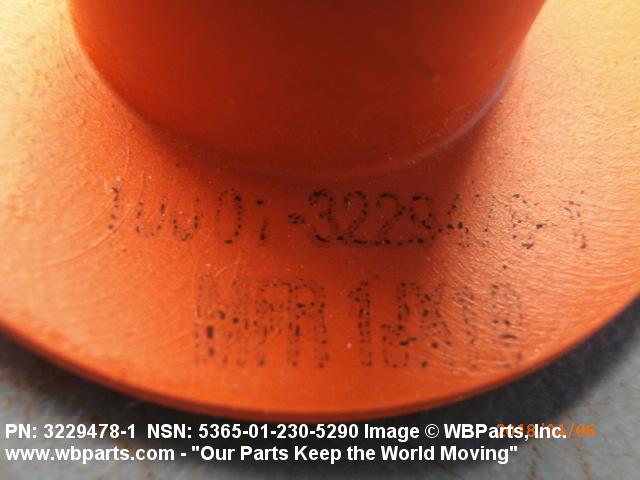

Drawings & Photos | NSN 5365-01-230-5290
Demand History | NSN 5365-01-230-5290
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-01-230-5290 | 2023-09-27 | 468 | DIBBS |
| 5365-01-230-5290 | 2023-09-19 | 468 | DIBBS |
| 5365-01-230-5290 | 2022-08-12 | 96 | United States |
| 5365-01-230-5290 | 2019-10-10 | 848 | DIBBS |
| 5365-01-230-5290 | 2018-03-26 | 5 | United States |
| 5365-01-230-5290 | 2017-03-20 | 550 | DIBBS |
| 5365-01-230-5290 | 2013-02-27 | 468 | DIBBS |
| 5365-01-230-5290 | 2011-11-22 | 145 | DIBBS |
| 5365-01-230-5290 | 2010-09-07 | 3 | DIBBS |
| 5365-01-230-5290 | 2010-08-21 | 96 | DIBBS |
| 5365-01-230-5290 | 2010-08-12 | 45 | DIBBS |
| 5365-01-230-5290 | 2010-08-12 | 48 | DIBBS |
| 5365-01-230-5290 | 2010-05-01 | 11 | DIBBS |
| 5365-01-230-5290 | 2009-06-06 | 186 | DIBBS |
Cross Reference | NSN 5365-01-230-5290
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3229478-1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5365-01-230-5290
Related Products | NSN 5365-01-230-5290
5365-01-230-5291, 5365-01-230-5294, 5365-01-230-5295, 5365-01-230-5296, 5365-01-230-5297
Technical Data | NSN 5365-01-230-5290
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SILICONE CLASS Q |
| MATERIAL DOCUMENT AND CLASSIFICATION | ZZ-R-765, CLASS 2A, GRADE 70 FED SPEC SINGLE MATERIAL RESPONSE |
| DESIGN TYPE | SINGLE CENTRALLY LOCATED HOLE |
| STYLE DESIGNATOR | 1 ROUND FLANGED |

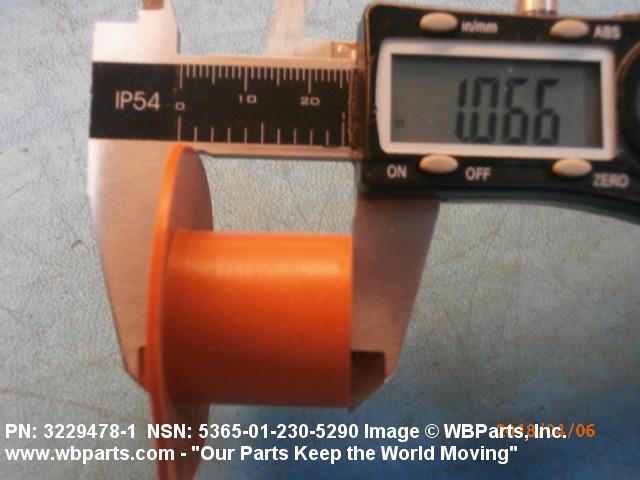

| OVERALL LENGTH | 1.052 INCHES MINIMUM AND 1.068 INCHES MAXIMUM |

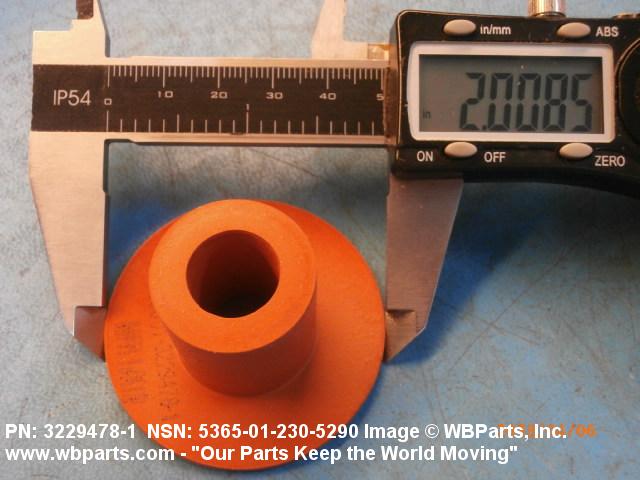

| FLANGE DIAMETER | 2.000 INCHES NOMINAL |

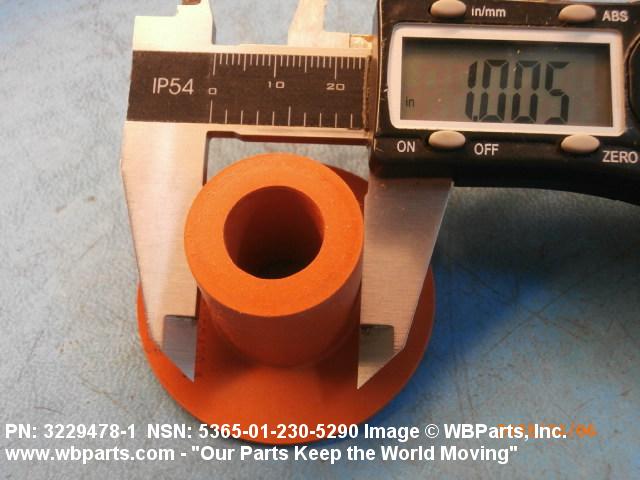

| BODY DIAMETER | 1.000 INCHES MINIMUM AND 1.010 INCHES MAXIMUM |
| BODY LENGTH | 1.000 INCHES NOMINAL |

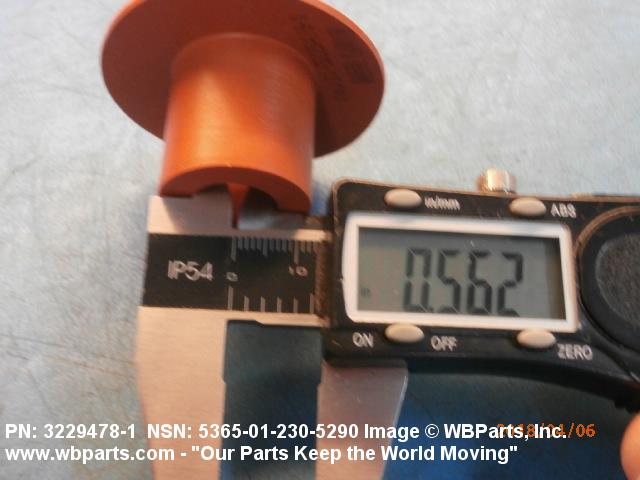

| CENTER HOLE DIAMETER | 0.557 INCHES MINIMUM AND 0.567 INCHES MAXIMUM |
| FLANGE HEIGHT | 0.052 INCHES MINIMUM AND 0.068 INCHES MAXIMUM |
| CORNER RADIUS BETWEEN FLANGE AND BODY | 0.010 INCHES MINIMUM AND 0.040 INCHES MAXIMUM |
| NONMETALLIC HARDNESS RATING | 65.0 MINIMUM SHORE DUROMETER A AND 75.0 MAXIMUM SHORE DUROMETER A |
Restrictions/Controls & Freight Information | NSN 5365-01-230-5290
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Z | 240 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-01-230-5290
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Z | 240 months | Purchasing | QTY UOM |
1 EA : Each |
