Product Details | ELECTRONIC FREQUENCY CONVERTER
5895-01-009-9225 An electronic device having frequency mixing circuits and an integral oscillator which mixes the incoming frequency(ies) with the oscillator frequency, the resultant frequency(ies) being a combination of the two sources. Includes equipment that performs these functions at either radio or power line frequencies. Excludes items that change frequency by means of rotating equipment or rectifier and switching or keying circuitry.20358950037Miscellaneous Communication Equipment59630018Electronic Modules61300035Converters, Electrical, Nonrotating
Part Alternates: CAT3463A, UDAC133, UDAC13-3, 138C059H02, 138C618H01, 5895-01-009-9225, 01-009-9225, 5895010099225, 010099225
Communication, Detection, and Coherent Radiation Equipment | Miscellaneous Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 01 MAR 1990 | 01-009-9225 | 00329 ( CONVERTER, FREQUENCY, ELECTRONIC ) |

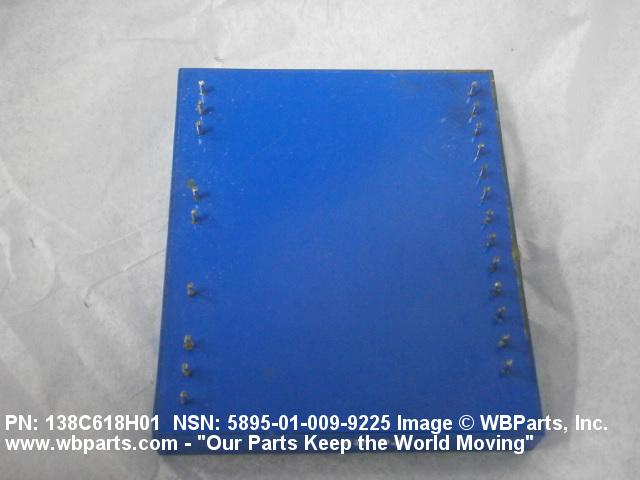

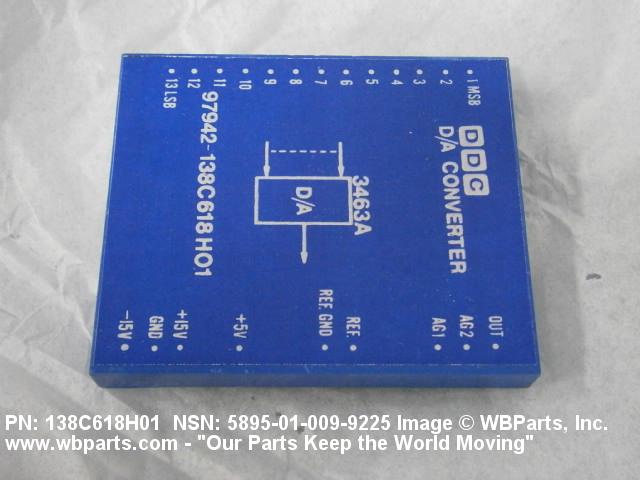

Drawings & Photos | NSN 5895-01-009-9225
Demand History | NSN 5895-01-009-9225
Cross Reference | NSN 5895-01-009-9225
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 138C059H02 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 138C618H01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| CAT3463A | 19645 | DATA DEVICE CORPORATION |
| UDAC13-3 | 19645 | DATA DEVICE CORPORATION |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5895-01-009-9225
5895-01-010-0248, 5895-01-010-0471, 5895-01-010-0506, 5895-01-010-0706, 5895-01-010-1380
Technical Data | NSN 5895-01-009-9225
| Characteristic | Specifications |
|---|---|
| CIRCUIT CONSTRUCTION TYPE | SOLID STATE |
| INCLOSURE TYPE | ENCASED |
| ENVIRONMENTAL PROTECTION | VIBRATION AND SALT SPRAY RESISTANT |
| INSTALLATION DESIGN | MODULE |
| OVERALL LENGTH | 2.610 INCHES MINIMUM AND 2.640 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.670 INCHES NOMINAL |
| OVERALL WIDTH | 1.110 INCHES MINIMUM AND 1.140 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5895-01-009-9225
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | C | Munitions List Item or Commerce Control List Item. Demilitarization required. Remove and/or demilitarize installed key point(s) as prescribed in the Defense Demilitarization Manual, or lethal parts, components and accessories. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
