Product Details | INDUCTIVE WIRE WOUND FIXED RESISTOR
5905-01-039-0581 INC 37403 REINSTATED ON 010303~A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self-supporting. The item must have inherent characteristics of inducing self-inductance. Opposition to current flow is an inherent property of the resistance wire and is manifested by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE. See also RESISTOR (1), FIXED, WIRE WOUND, NONINDUCTIVE.
Part Alternates: 0107B9580G0002, 1026, 107B9580G2, 832C498P14, 5905-01-039-0581, 01-039-0581, 5905010390581, 010390581
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 APR 1977 | 01-039-0581 | 37403 ( RESISTOR, FIXED, WIRE WOUND, INDUCTIVE ) |
Drawings & Photos | NSN 5905-01-039-0581
Demand History | NSN 5905-01-039-0581
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5905-01-039-0581
5905-01-039-1145, 5905-01-039-1251, 5905-01-039-1268, 5905-01-039-1269, 5905-01-039-1298
Technical Data | NSN 5905-01-039-0581
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 4.000 OHMS |
| FIXED TAP QUANTITY | 5 |
| FIXED TAP TERMINAL TYPE | TAB, SOLDER LUG |
| SECTION NOMINAL RESISTANCE | 0.500 OHMS 0.500 OHMS 1.000 OHMS 1.000 OHMS 0.500 OHMS 0.500 OHMS |

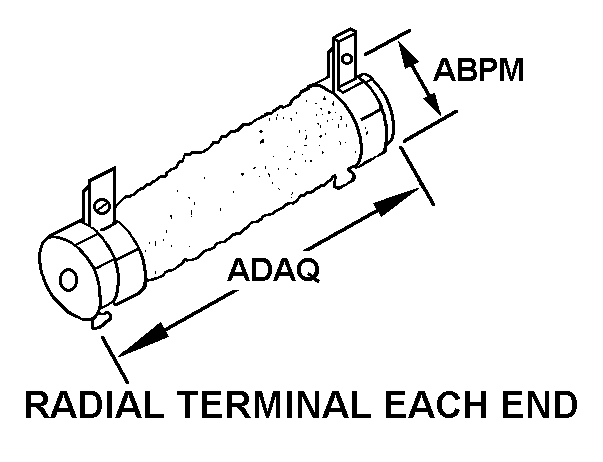

| STYLE DESIGNATOR | 141 RADIAL TERMINAL EACH END |
| BODY DIAMETER | 1.375 INCHES NOMINAL |
| BODY LENGTH | 4.688 INCHES NOMINAL |
| TERMINAL TYPE | TAB, SOLDER LUG |
Restrictions/Controls & Freight Information | NSN 5905-01-039-0581
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | 48 | Federal Aviation Administration Oklahoma City, OK 73125 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
