Product Details | INCLOSED LINK FUSE
5920-00-103-5266 A fuse in which the element is inclosed in a body of other than cylindrical shape. It may include visual indication that the fusible element is severed. For cylindrical items, see FUSE, CARTRIDGE. Excludes FUSE, OPEN LINK; and FUSE LINK, ELECTRICAL.
Part Alternates: MS28936250, MS28936-250, ANL250, 5920-00-103-5266, 00-103-5266, 5920001035266, 001035266
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 JUN 1968 | 00-103-5266 | 00249 ( FUSE, INCLOSED LINK ) |

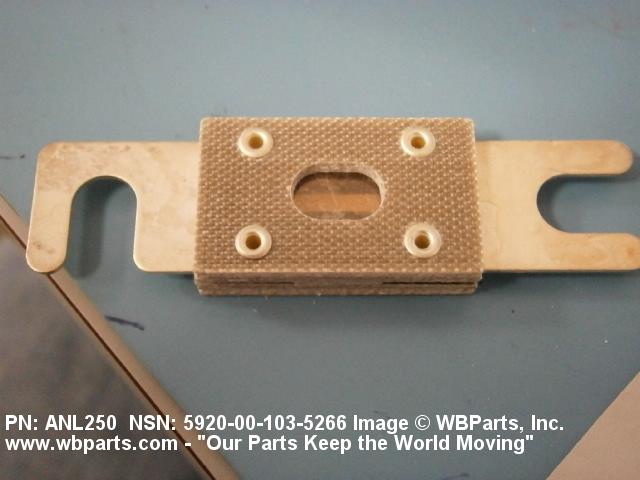

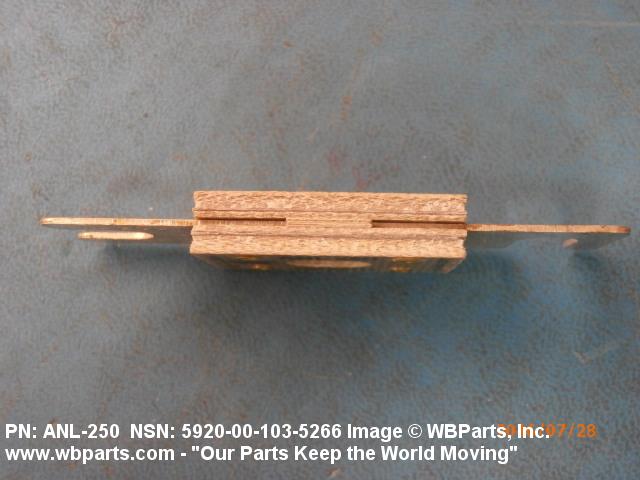

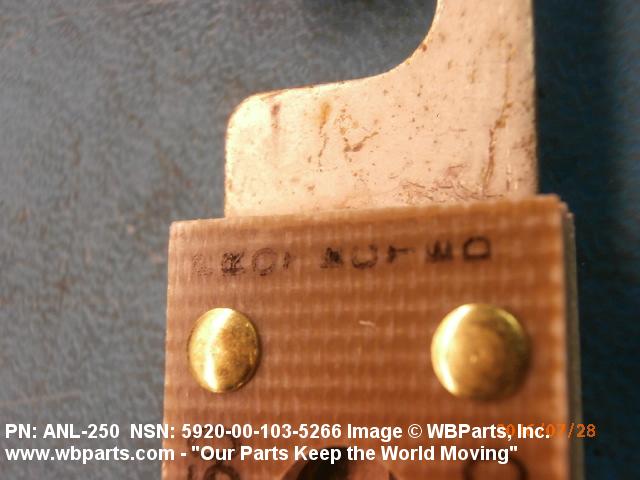

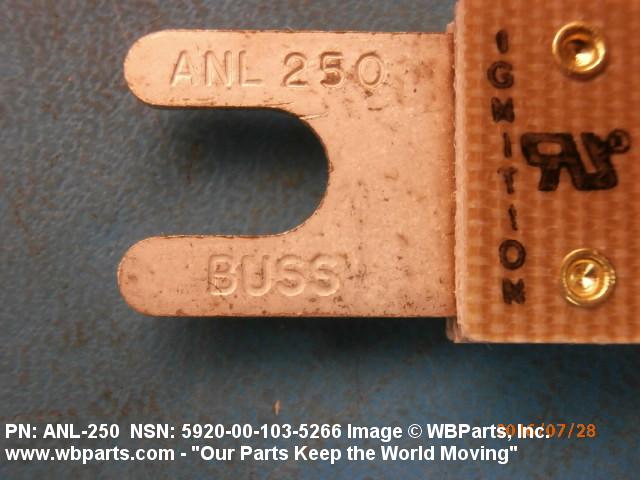

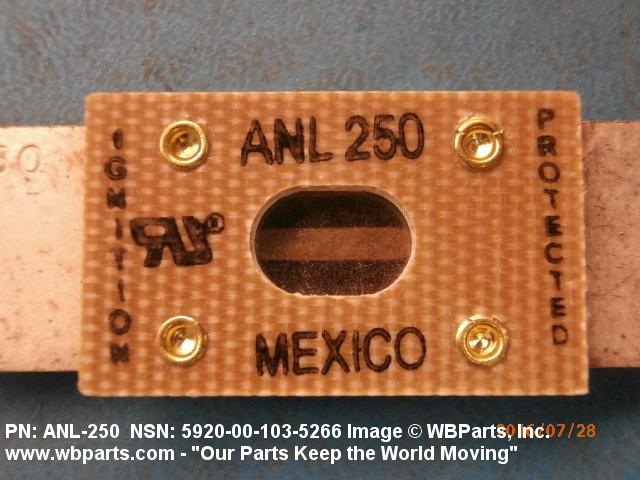

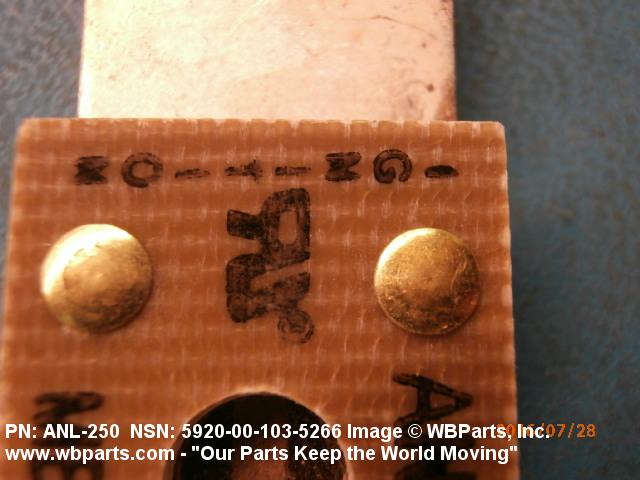

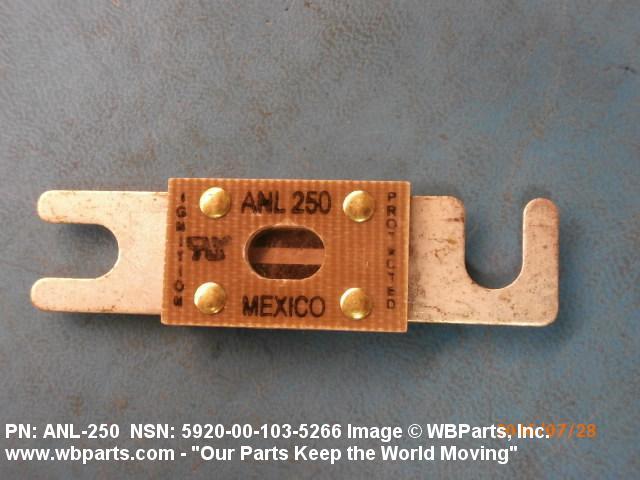

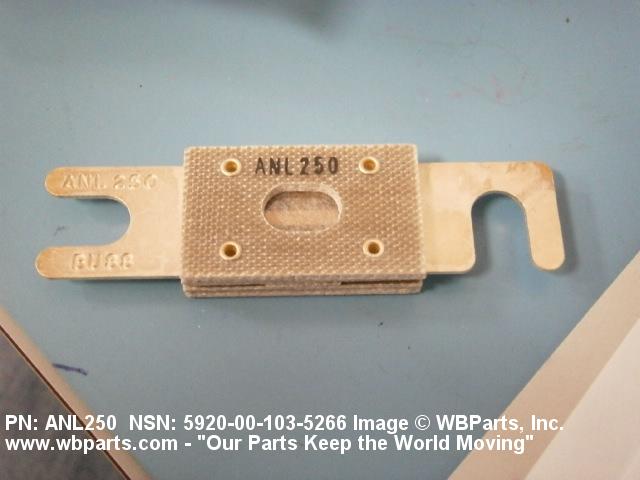

Drawings & Photos | NSN 5920-00-103-5266
Demand History | NSN 5920-00-103-5266
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ANL250 | 2024-01-25 | 34 | DIBBS |
| 5920-00-103-5266 | 2022-06-06 | 50 | Taiwan |
| 5920-00-103-5266 | 2022-04-20 | 40 | TW |
| 5920-00-103-5266 | 2022-04-14 | 40 | TW |
| 5920-00-103-5266 | 2017-07-12 | 20 | TR |
| MS28936250 | 2016-07-14 | 3 | us |
| 5920-00-103-5266 | 2012-07-02 | 140 | United States |
| 5920-00-103-5266 | 2012-02-02 | 120 | United States |
| 5920-00-103-5266 | 2007-02-23 | 91 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5920-00-103-5266
Related Products | NSN 5920-00-103-5266
5920-00-103-5267, 5920-00-103-5268, 5920-00-103-5277, 5920-00-103-7011, 5920-00-103-7642
Technical Data | NSN 5920-00-103-5266
| Characteristic | Specifications |
|---|---|

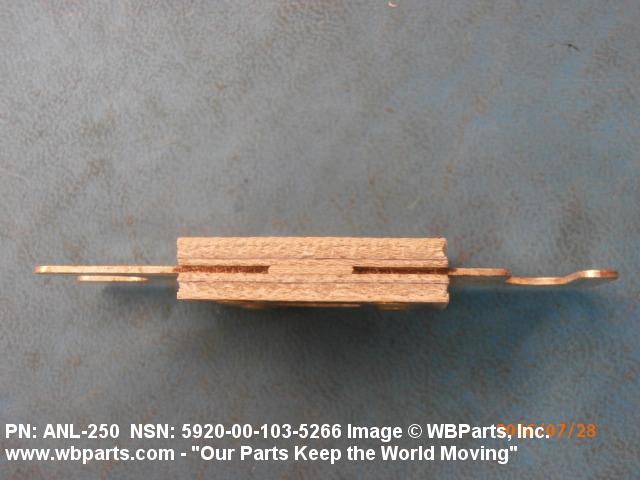

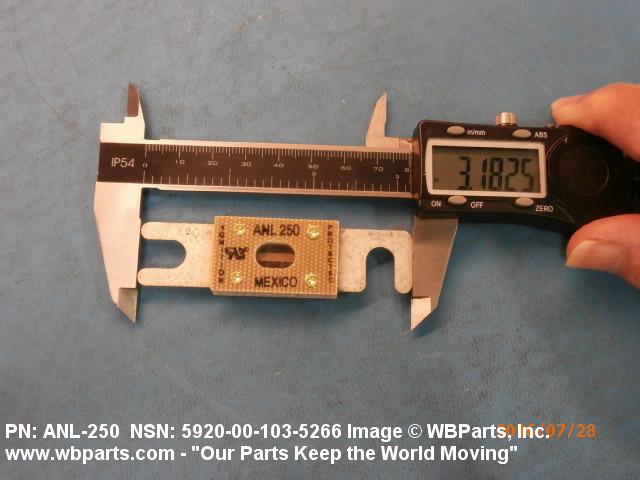

| BODY STYLE | 2B SLOTTED LIMITER |
| OVERALL LENGTH | 3.188 INCHES NOMINAL |
| TERMINAL LENGTH | 0.875 INCHES NOMINAL |

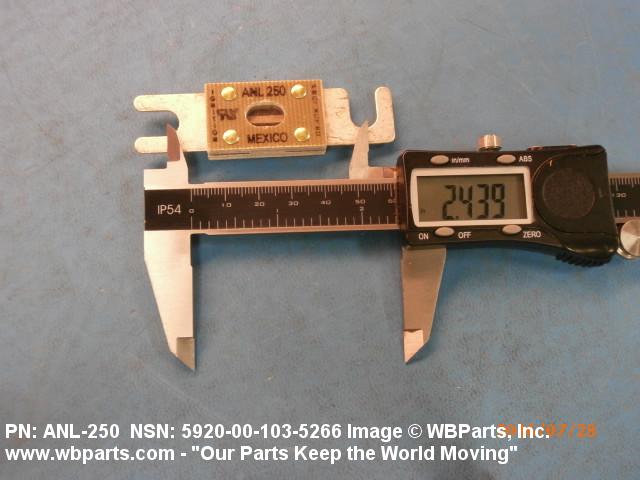

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.438 INCHES NOMINAL |

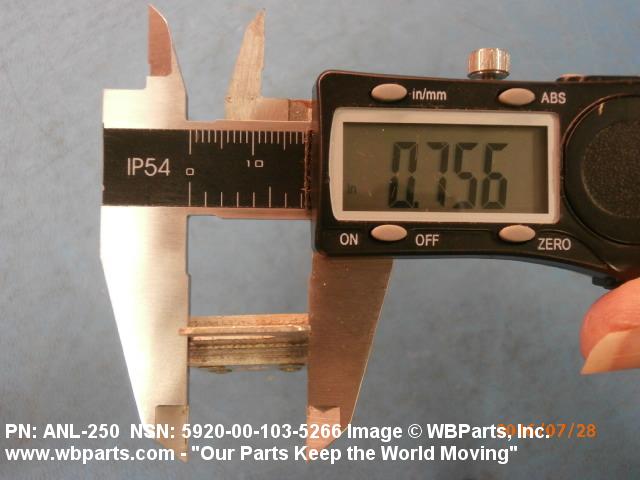

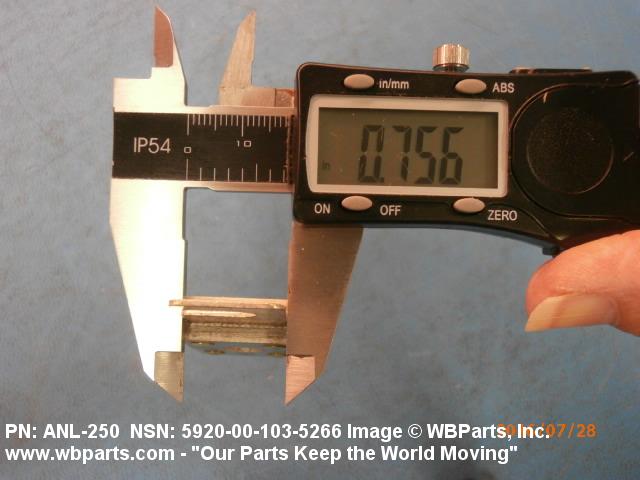

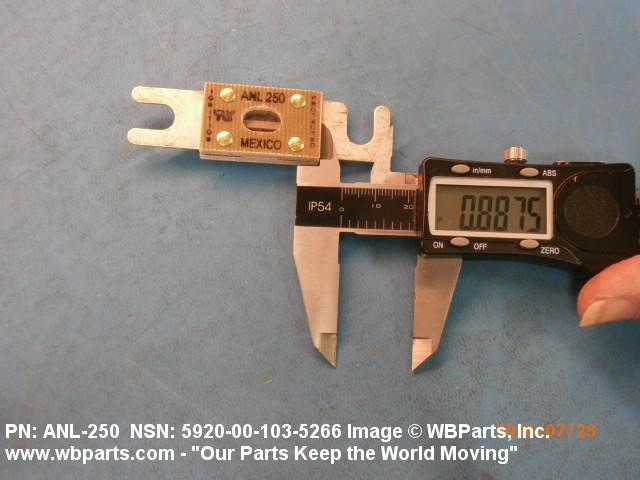

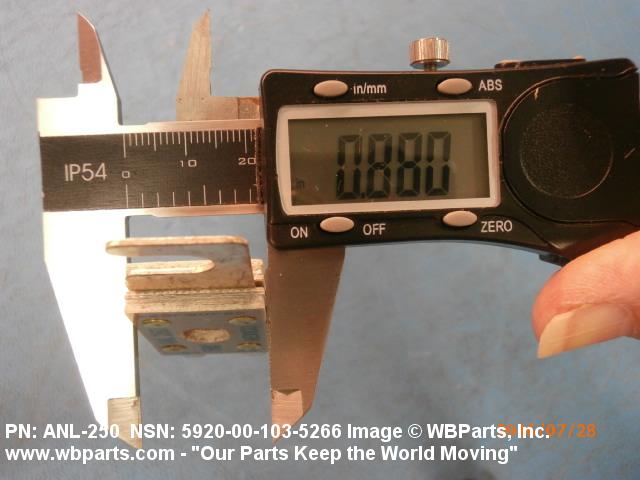

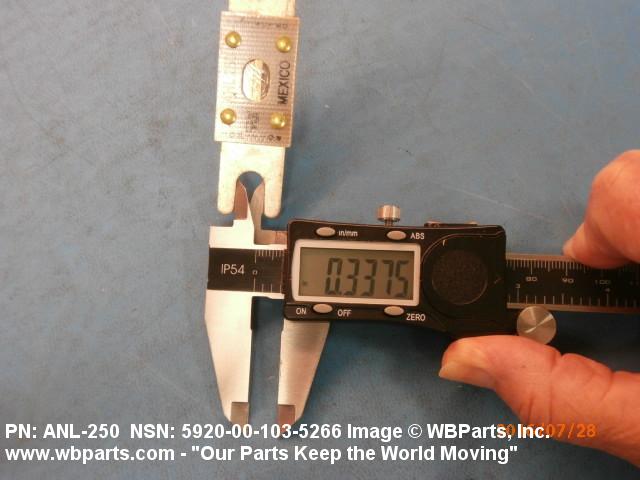

| OVERALL HEIGHT | 0.750 INCHES MAXIMUM |
| OVERALL WIDTH | 0.875 INCHES NOMINAL |
| MOUNTING SLOT WIDTH | 0.344 INCHES NOMINAL |
| TERMINAL WIDTH | 0.750 INCHES NOMINAL |

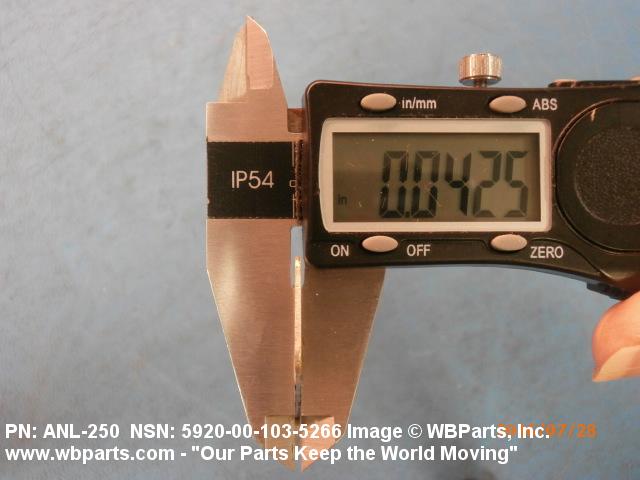

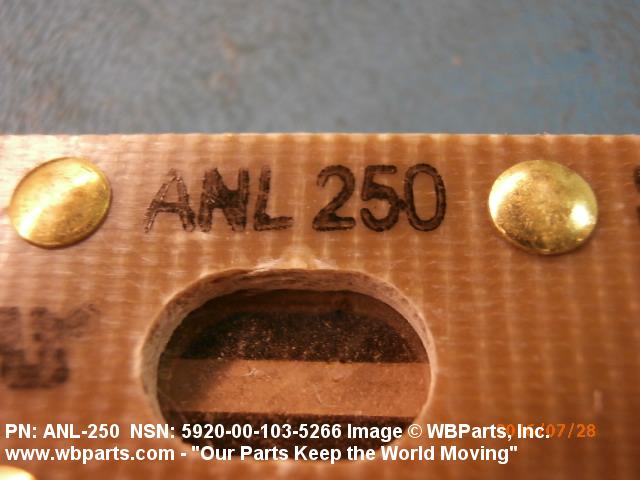

| TERMINAL THICKNESS | 0.046 INCHES NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 250.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 32.0 AC AND 32.0 DC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| INTERRUPTION INDICATOR METHOD | VISIBLE ELEMENT |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 10000.0 |
| TERMINAL SURFACE TREATMENT | SILVER PLATED |
