Product Details | BLOCK FUSEHOLDER
5920-00-669-8782 A fuseholder in which the fuseholder stud and/or clips and insulation are mounted on a flat base. Excludes FUSEHOLDER, RECEPTACLE.
Part Alternates: JH3129, JH31-29, JHP2447, 1073, 13949, 5920-00-669-8782, 00-669-8782, 5920006698782, 006698782
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-669-8782 | 28908 ( FUSEHOLDER, BLOCK ) |
Drawings & Photos | NSN 5920-00-669-8782
Demand History | NSN 5920-00-669-8782
Cross Reference | NSN 5920-00-669-8782
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1073 | 21810 | CHALLENGER ELECTRICAL EQUIPMENT CORP |
| 1073 | 71424 | FERRAZ SHAWMUT INC |
| 1073 | 91072 | SHAWMUT MILLS DIV WYNER R H ASSOCIATES INC |
| 13949 | 71424 | FERRAZ SHAWMUT INC |
| JH31-29 | 02032 | HOLLINGSWORTH JOHN R CO |
| JHP2447 | 02032 | HOLLINGSWORTH JOHN R CO |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5920-00-669-8782
Related Products | NSN 5920-00-669-8782
5920-00-669-8802, 5920-00-669-8803, 5920-00-669-8979, 5920-00-669-8981, 5920-00-669-8983
Technical Data | NSN 5920-00-669-8782
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 1 |
| CURRENT CARRYING RATING IN AMPS | 30.0 |
| VOLTAGE IN VOLTS | 600.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| TERMINAL TYPE AND QUANTITY | 2 SCREW |
| CONTACT MATERIAL | BRASS |
| CONTACT SURFACE TREATMENT | NICKEL PLATED |

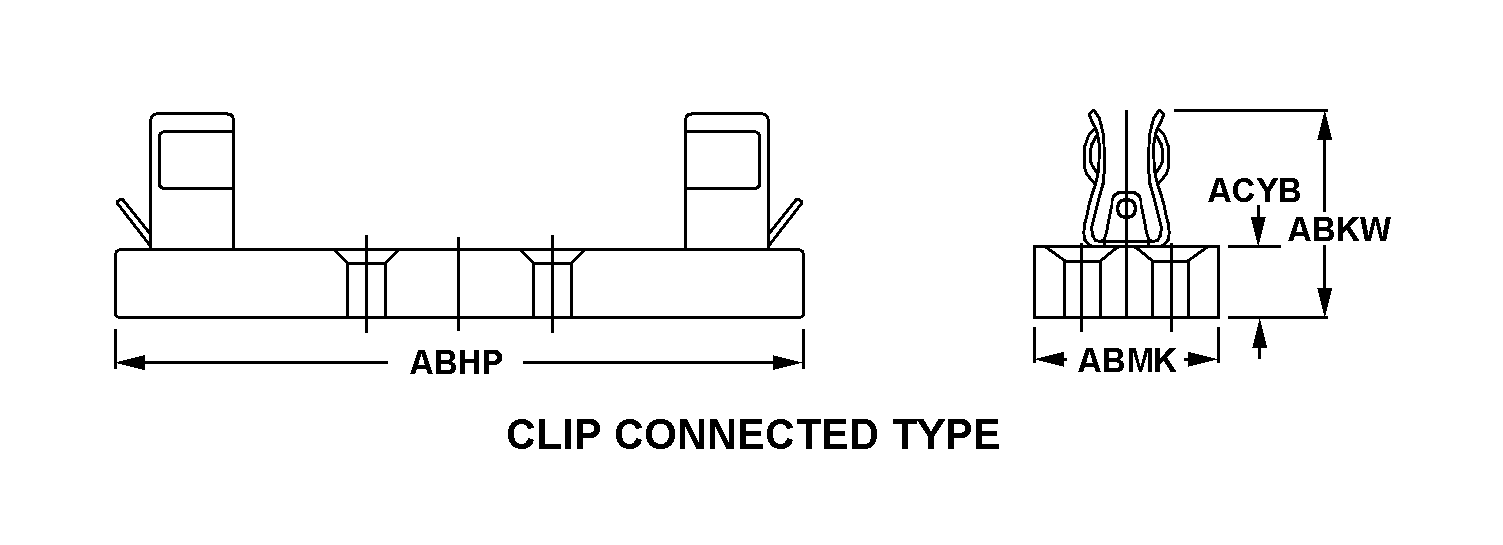

| BODY STYLE | C11 CLIP CONNECTED TYPE |
| OVERALL LENGTH | 6.562 INCHES NOMINAL |
| OVERALL HEIGHT | 1.750 INCHES NOMINAL |
| OVERALL WIDTH | 1.750 INCHES NOMINAL |
| BASE THICKNESS | 0.250 INCHES NOMINAL |

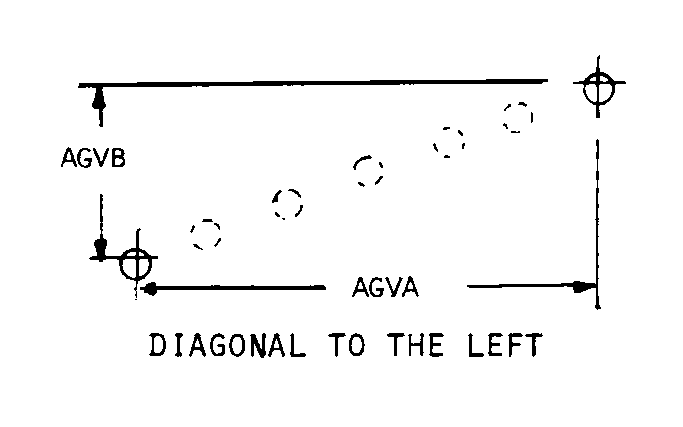

| MOUNTING HOLE STYLE | F27 DIAGONAL TO THE LEFT |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 3.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 1.500 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 2 |
| MOUNTING HOLE DIAMETER | 0.219 INCHES NOMINAL |
| ACCOMMODATED FUSE LENGTH | 5.000 INCHES NOMINAL |
| ACCOMMODATED FERRULE DIAMETER | 0.812 INCHES NOMINAL |
| INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY | 1 POLE, MAINLINE, FUSED |
| III TERMINAL MATERIAL | BRASS |
| III TERMINAL SURFACE TREATMENT | NICKEL PLATED |
| III BODY MATERIAL | PLASTIC |
Restrictions/Controls & Freight Information | NSN 5920-00-669-8782
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062060 | FUSES NOI IN BOXES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
