Product Details | CARTRIDGE FUSE
5920-01-619-7315 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Part Alternates: 00346608, 5920-01-619-7315, 01-619-7315, 5920016197315, 016197315, 0034.6608
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 2013165 | 01-619-7315 | 00248 ( FUSE, CARTRIDGE ) |

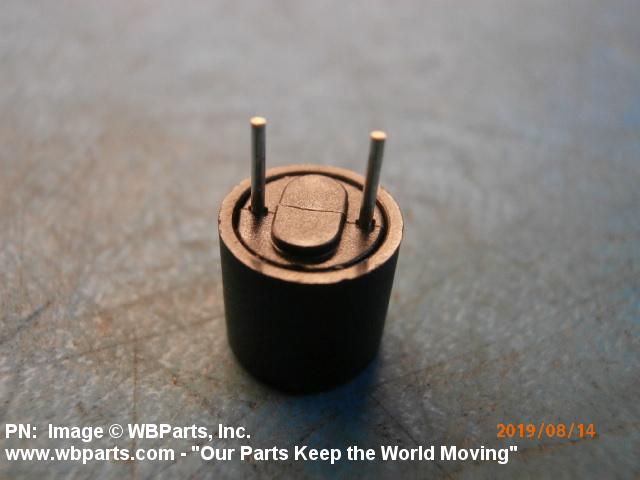

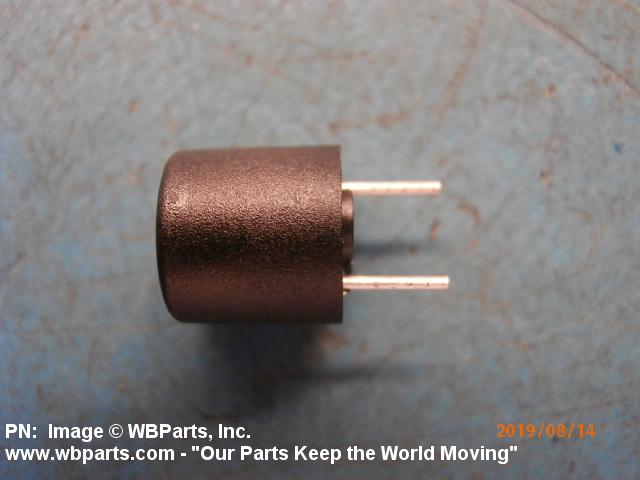

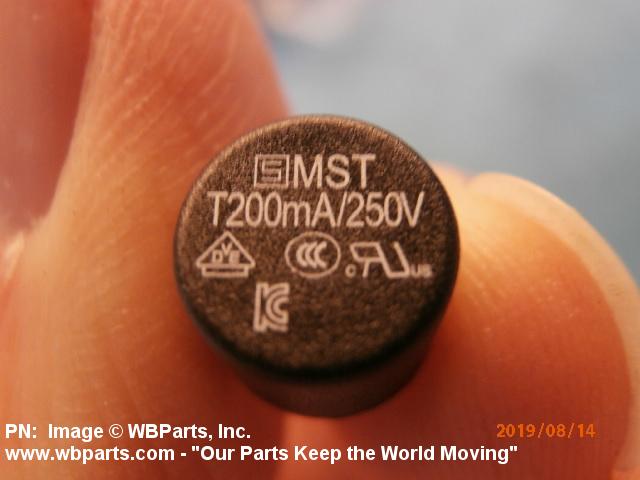

Drawings & Photos | NSN 5920-01-619-7315
Demand History | NSN 5920-01-619-7315
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 0034.6608 | 2023-11-28 | 1709 | DIBBS |
| 5920-01-619-7315 | 2019-08-09 | 160 | United States |
| 5920-01-619-7315 | 2016-07-31 | 2069 | DIBBS |
| 5920-01-619-7315 | 2014-07-27 | 794 | DIBBS |
| 5920-01-619-7315 | 2014-04-30 | 832 | DIBBS |
| 5920-01-619-7315 | 2014-03-11 | 62 | DIBBS |
| 5920-01-619-7315 | 2014-03-04 | 62 | DIBBS |
| 5920-01-619-7315 | 2014-01-21 | 300 | DIBBS |
| 5920-01-619-7315 | 2013-12-29 | 300 | DIBBS |
Cross Reference | NSN 5920-01-619-7315
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0034.6608 | 61935 | SCHURTER, INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5920-01-619-7315
Related Products | NSN 5920-01-619-7315
5920-01-619-7479, 5920-01-619-7759, 5920-01-619-8405, 5920-01-619-8712, 5920-01-619-8736
Technical Data | NSN 5920-01-619-7315
| Characteristic | Specifications |
|---|---|
| BODY STYLE | PLUG-IN TYPE |

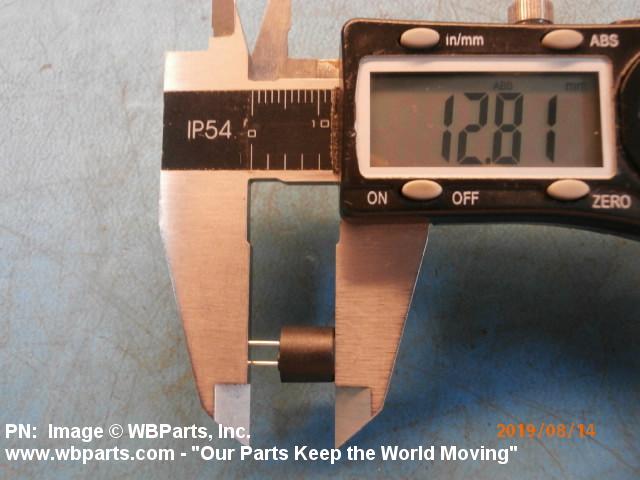

| OVERALL LENGTH | 12.8 MILLIMETERS NOMINAL |

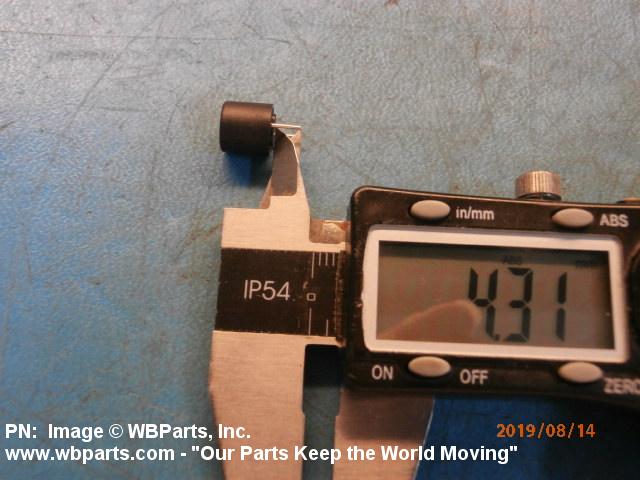

| TERMINAL LENGTH | 4.3 MILLIMETERS NOMINAL |

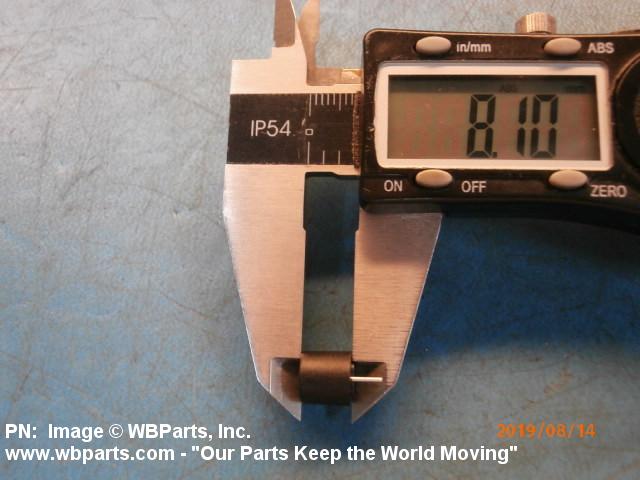

| BODY LENGTH | 8.5 MILLIMETERS NOMINAL |
| OVERALL DIAMETER | 8.5 MILLIMETERS NOMINAL |
| TERMINAL DIAMETER | 1.0 MILLIMETERS NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO DIAMETER | 5.08 MILLIMETERS NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 0.2 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | TIME DELAY |
| CIRCUIT OVER-CURRENT INTERRUPTION DELAY TIME IN SECONDS | 3.0 200 PCT OF CURRENT RATING |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 35.0 |
| INTERRUPTION INDICATOR METHOD | NO VISUAL INDICATION |
| FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SUBMINIATURE FUSE |
