5930-00-088-5215 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.
Part Alternates: MS20501832, MS20501-832 , M7481118P2, CR2943U103R, LL2C832SP, ZA1913W82 , 9975945, 2700SS82, 5930-00-088-5215, 00-088-5215, 5930000885215, 000885215
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-088-5215 | 00406 ( SWITCH, PUSH ) |
Drawings & Photos | NSN 5930-00-088-5215
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5930-00-088-5215
Related Products | NSN 5930-00-088-5215
5930-00-088-5302, 5930-00-088-5468, 5930-00-088-5520, 5930-00-088-5522, 5930-00-088-5542
Technical Data | NSN 5930-00-088-5215
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 TWO CIRCUIT, DOUBLE BREAK/DOUBLE MAKE, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 550.0 AC AND 550.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 200.000 MILLIAMPERES RESISTIVE DC AND 6.000 AMPERES RESISTIVE AC |

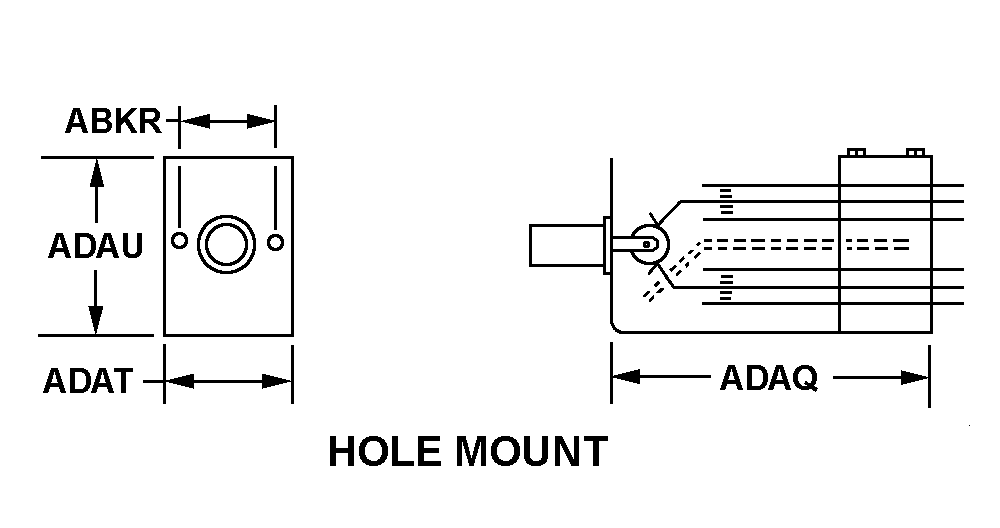

| BODY STYLE | 17K HOLE MOUNT |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.500 INCHES NOMINAL |
| BODY LENGTH | 1.469 INCHES NOMINAL |
| BODY WIDTH | 1.937 INCHES NOMINAL |
| BODY HEIGHT | 1.437 INCHES NOMINAL |
| OVERALL LENGTH | 1.937 INCHES NOMINAL |
| OVERALL WIDTH | 1.437 INCHES NOMINAL |
| OVERALL HEIGHT | 1.844 INCHES NOMINAL |
| ACTUATOR STYLE | 10 ROUND, FLUSH |
| ACTUATOR DIAMETER | 0.937 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.375 INCHES NOMINAL |
| ACTUATOR COLOR | BLACK SINGLE ACTUATOR |
| TERMINAL TYPE AND QUANTITY | 4 SCREW |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | THREADED HOLE |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| III CASE MATERIAL | PLASTIC |
