Product Details | THERMOSTATIC SWITCH
5930-00-387-2654 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: NC920106, NC9-20106, 10105 , 22210NH22222062, 222-10NH2-2222062, 2222062, 2222062NH2, 222-2062-NH2 , 2222062NHZ, 222-2062-NHZ, 5930-00-387-2654, 00-387-2654, 5930003872654, 003872654
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 MAR 1974 | 00-387-2654 | 00451 ( SWITCH, THERMOSTATIC ) |
Drawings & Photos | NSN 5930-00-387-2654
Demand History | NSN 5930-00-387-2654
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10105 | 2023-01-26 | 25 | DIBBS |
| 222-10NH2-2222062 | 2023-01-26 | 25 | DIBBS |
| 2222062 | 2023-01-26 | 25 | DIBBS |
| 222-2062-NH2 | 2023-01-26 | 25 | DIBBS |
| NC9-20106 | 2023-01-26 | 25 | DIBBS |
| 10105 | 2022-01-30 | 7 | DIBBS |
| 222-10NH2-2222062 | 2022-01-30 | 7 | DIBBS |
| 2222062 | 2022-01-30 | 7 | DIBBS |
| 222-2062-NH2 | 2022-01-30 | 7 | DIBBS |
| NC9-20106 | 2022-01-30 | 7 | DIBBS |
| 10105 | 2021-04-08 | 8 | DIBBS |
| 222-10NH2-2222062 | 2021-04-08 | 8 | DIBBS |
| 2222062 | 2021-04-08 | 8 | DIBBS |
| 222-2062-NH2 | 2021-04-08 | 8 | DIBBS |
| NC9-20106 | 2021-04-08 | 8 | DIBBS |
| 5930-00-387-2654 | 2018-09-20 | 18 | DIBBS |
| 5930-00-387-2654 | 2016-03-31 | 11 | DIBBS |
| 5930-00-387-2654 | 2015-08-02 | 10 | DIBBS |
| 10105 | 2015-03-31 | 2 | PK |
| 10105 | 2013-04-30 | 1 | United Arab Emirates |
| 5930-00-387-2654 | 2012-06-15 | 6 | DIBBS |
| 5930-00-387-2654 | 2012-03-30 | 4 | DIBBS |
| 5930-00-387-2654 | 2011-07-07 | 3 | DIBBS |
| 5930-00-387-2654 | 2011-05-19 | 4 | DIBBS |
| 5930-00-387-2654 | 2011-05-04 | 1 | DIBBS |
| 5930-00-387-2654 | 2011-01-25 | 1 | DIBBS |
| 5930-00-387-2654 | 2011-01-18 | 5 | DIBBS |
| 5930-00-387-2654 | 2010-12-13 | 3 | United States |
| 5930-00-387-2654 | 2010-11-03 | 3 | DIBBS |
| 5930-00-387-2654 | 2008-08-29 | 3 | DIBBS |
| 5930-00-387-2654 | 2007-08-13 | 6 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5930-00-387-2654
Related Products | NSN 5930-00-387-2654
5930-00-387-2661, 5930-00-387-2668, 5930-00-387-2686, 5930-00-387-2699, 5930-00-387-2700
Technical Data | NSN 5930-00-387-2654
| Characteristic | Specifications |
|---|---|

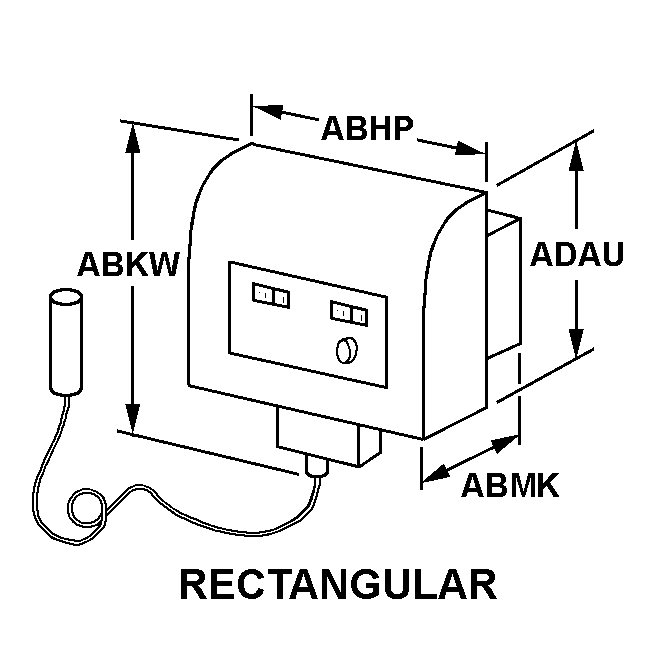

| STYLE DESIGNATOR | 73 RECTANGULAR |
| OVERALL LENGTH | 5.000 INCHES NOMINAL |
| OVERALL HEIGHT | 5.250 INCHES NOMINAL |
| OVERALL WIDTH | 2.813 INCHES NOMINAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT ADJUSTABLE AND ACTUATION POINT ADJUSTABLE |
| CONTACT ADJUSTMENT RANGE | 235.00 TO 260.00 ACTUATION POINT DEGREES FAHRENHEIT AND 235.00 TO 260.00 DEACTUATION POINT DEGREES FAHRENHEIT |
| CONTACT ADJUSTMENT TYPE | EXTERNAL DEACTUATION POINT SCREW AND EXTERNAL ACTUATION POINT KNOB |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 AC AT SEA LEVEL FIRST VOLTAGE 550.0 AC AT SEA LEVEL SECOND VOLTAGE 115.0 DC AT SEA LEVEL THIRD VOLTAGE 550.0 DC AT SEA LEVEL FOURTH VOLTAGE |
| CONTACT LOAD CURRENT RATING | 16.0 AMPERES RESISTIVE LOAD FIRST VOLTAGE 3.4 AMPERES RESISTIVE LOAD SECOND VOLTAGE 9.6 AMPERES RESISTIVE LOAD THIRD VOLTAGE 2.0 AMPERES RESISTIVE LOAD FOURTH VOLTAGE |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| TEMP SENSING ELEMENT TYPE | BULB |
| TERMINAL TYPE | TAB W/SCREW |
| MOUNTING METHOD | IMMERSION WELL |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
Restrictions/Controls & Freight Information | NSN 5930-00-387-2654
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-387-2654
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
