Product Details | LEVER SWITCH
5930-01-009-8777 A switch which is externally actuated by a lever and whose contacts open and close at a speed proportional to the speed at which the lever is operated. Includes pile-up lever switches and wafer lever switches. Excludes SWITCH, TOGGLE; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; SWITCH, BOX; and SWITCH, MERCURY.
Part Alternates: PS6851701, PS68517-01, 131650, 27000, 5930-01-009-8777, 01-009-8777, 5930010098777, 010098777
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-009-8777 | 00175 ( SWITCH, LEVER ) |
Drawings & Photos | NSN 5930-01-009-8777
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5930-01-009-8777
5930-01-009-8778, 5930-01-009-8843, 5930-01-009-9012, 5930-01-009-9239, 5930-01-010-0064
Technical Data | NSN 5930-01-009-8777
| Characteristic | Specifications |
|---|---|
| PILE-UP CONTACT FORM ARRANGEMENT | 1A 1ST POSITION 1A 2ND POSITION |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 200.000 MILLIAMPERES RESISTIVE DC |

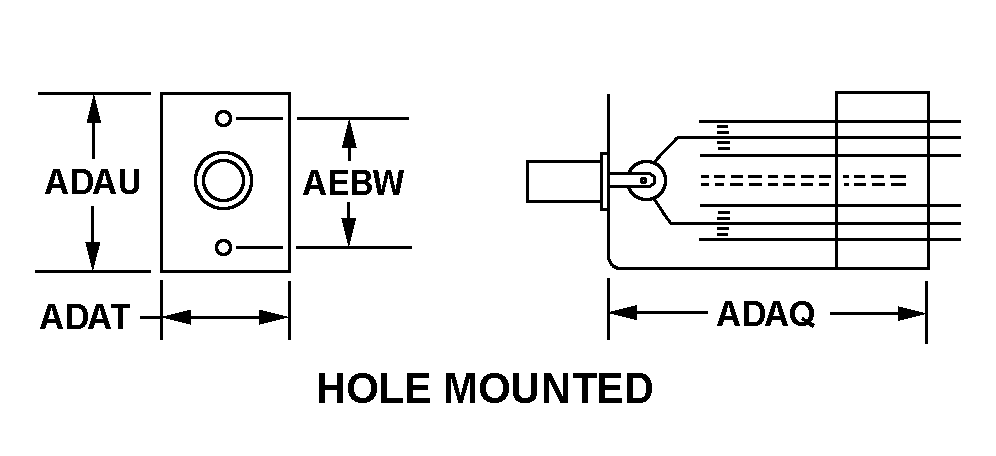

| BODY STYLE | 3G HOLE MOUNTED |
| BODY WIDTH | 0.750 INCHES NOMINAL |
| BODY HEIGHT | 1.220 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.875 INCHES NOMINAL |
| ACTUATOR STYLE | 29 RECTANGULAR |
| ACTUATOR HEIGHT | 0.810 INCHES NOMINAL |
| ACTUATOR WIDTH | 0.470 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MOMENTARY AND DOWN POSITION MAINTAINED AND CENTER POSITION MAINTAINED |
| ILLUMINATED ACTUATOR COLOR | YELLOW AND WHITE AND GREEN SINGLE ACTUATOR |
| TERMINAL TYPE AND QUANTITY | 6 TAB, SOLDER LUG |
| INCLOSURE TYPE | UNINCLOSED |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.086 INCHES |
| THREAD QUANTITY PER INCH | 56 |
| SPECIAL FEATURES | ACTUATOR INCL 3 COLOR FILTER CHIPS |
