Product Details | ROTARY SWITCH
5930-01-080-3242 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: XM65029, 12273244, 36003656, 3600-3656, 9S31, 5930-01-080-3242, 01-080-3242, 5930010803242, 010803242
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 JUL 1979 | 01-080-3242 | 02134 ( SWITCH, ROTARY ) |

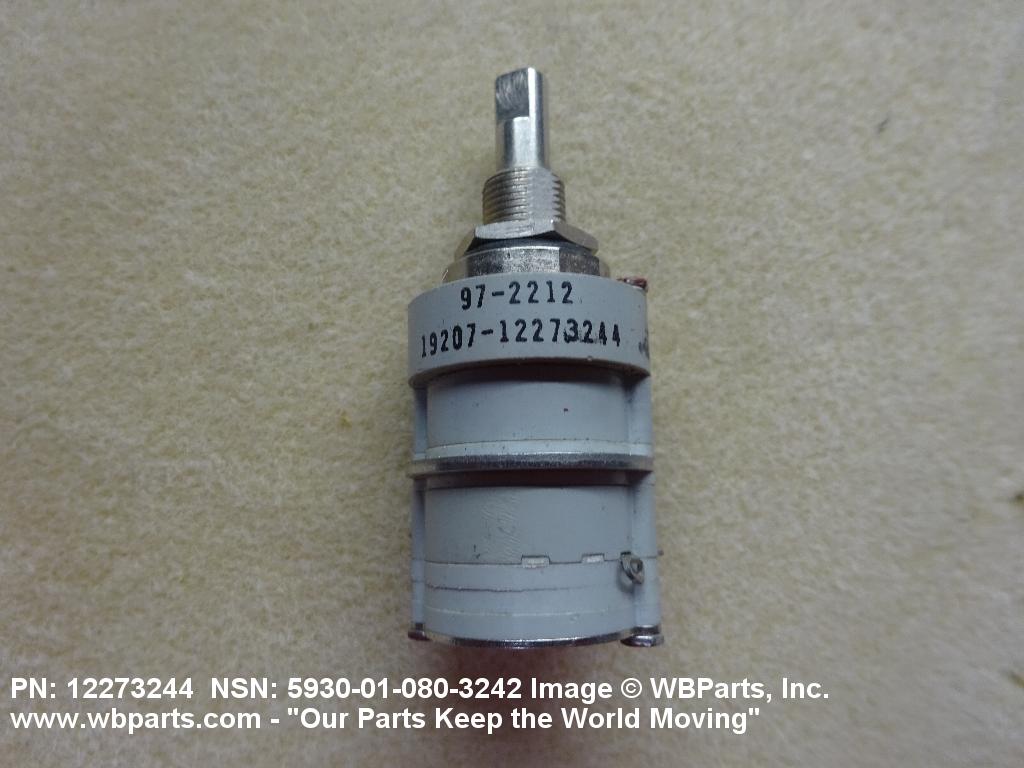

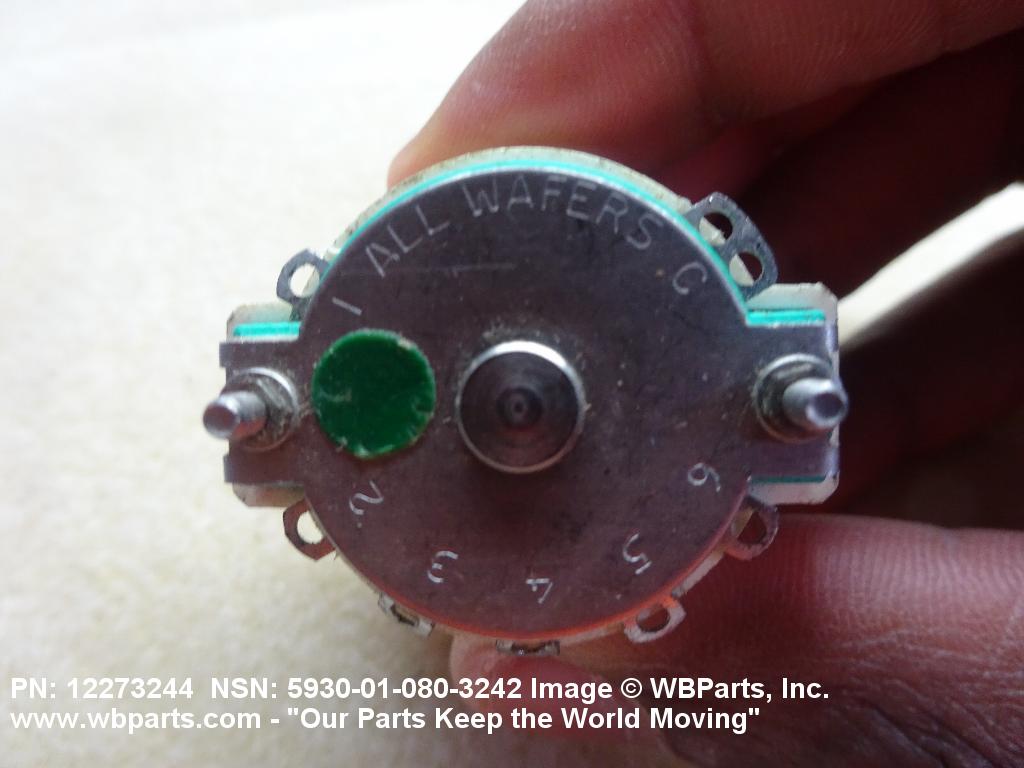

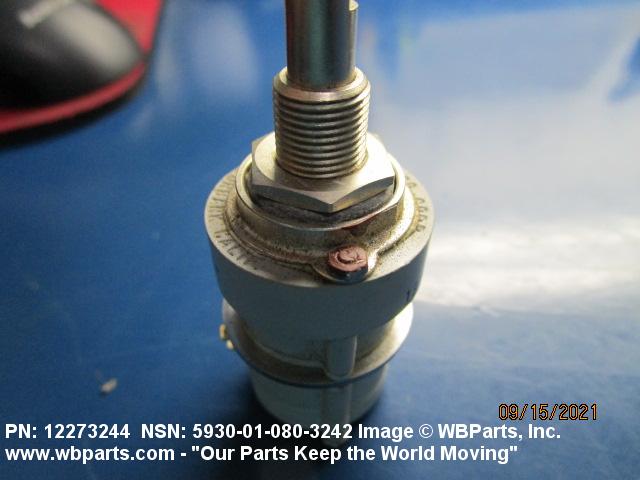

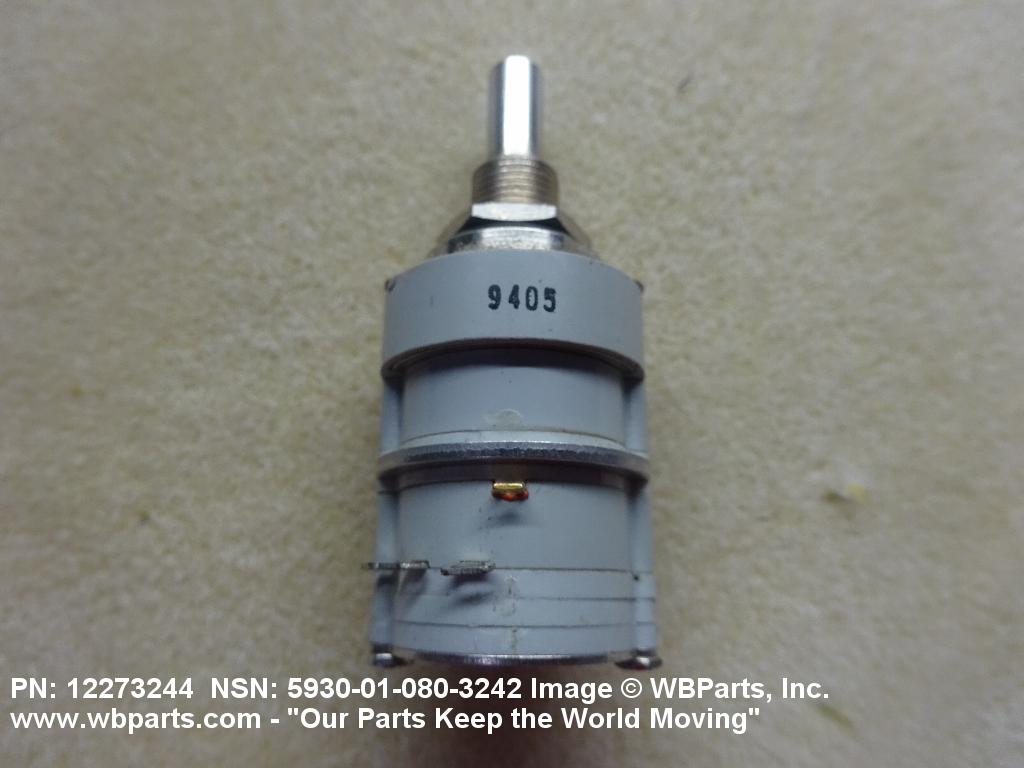

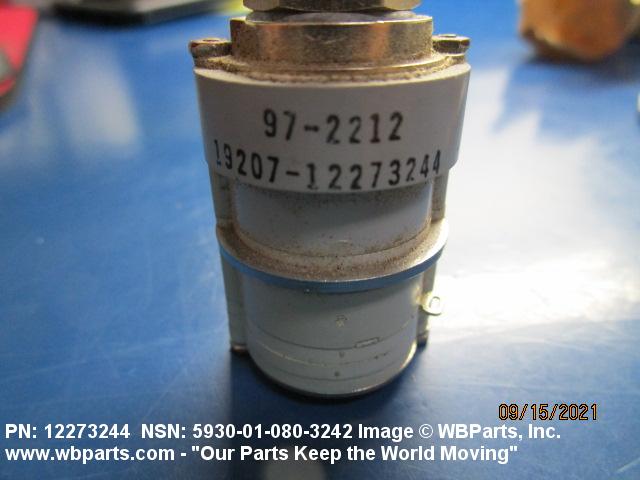

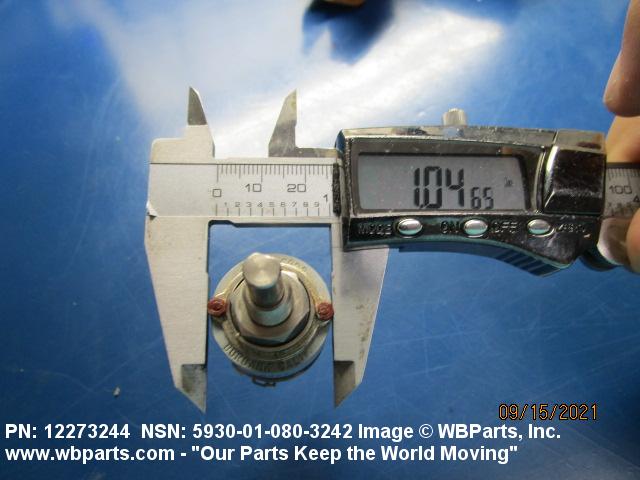

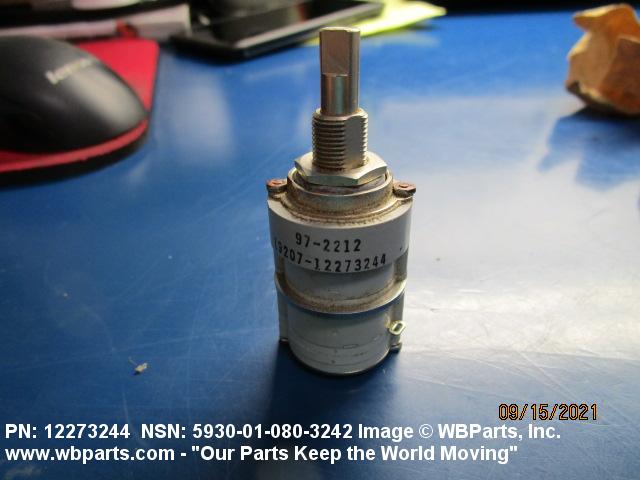

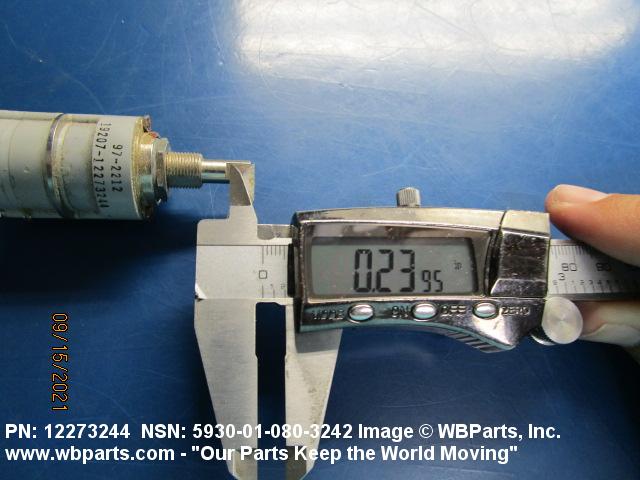

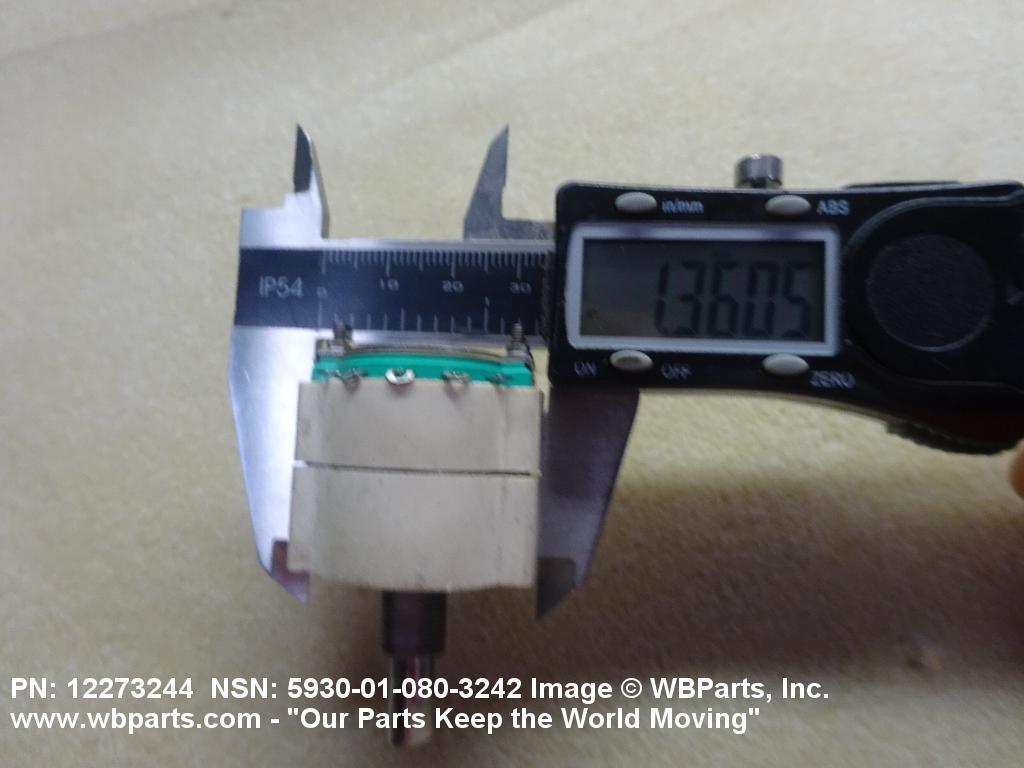

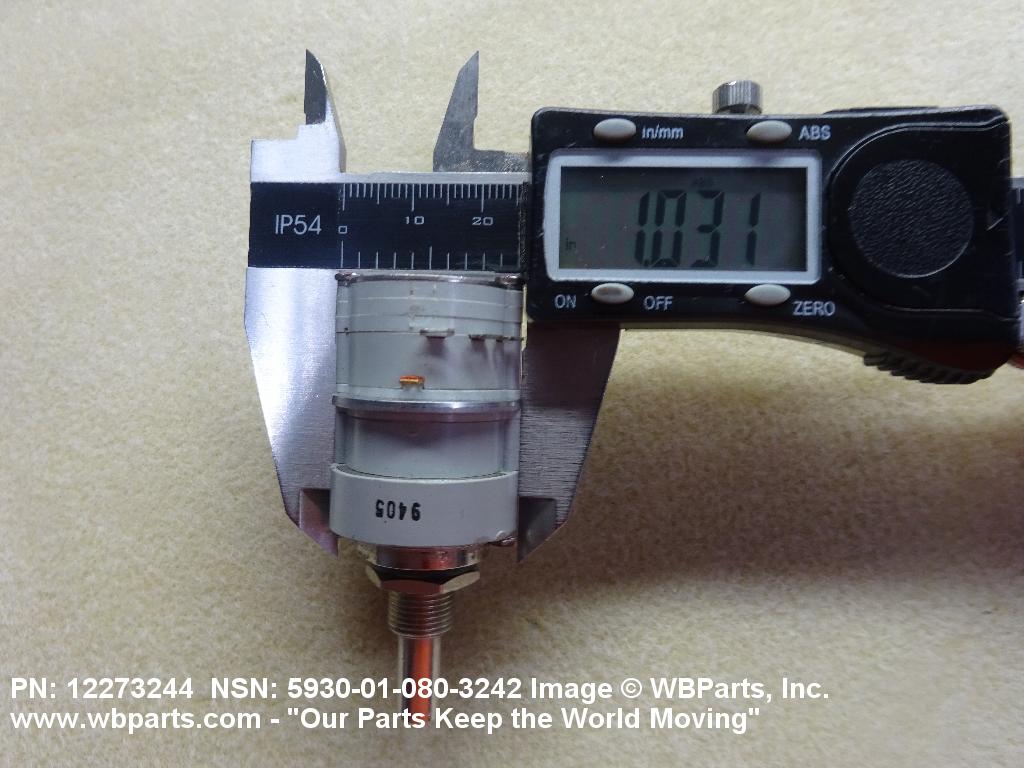

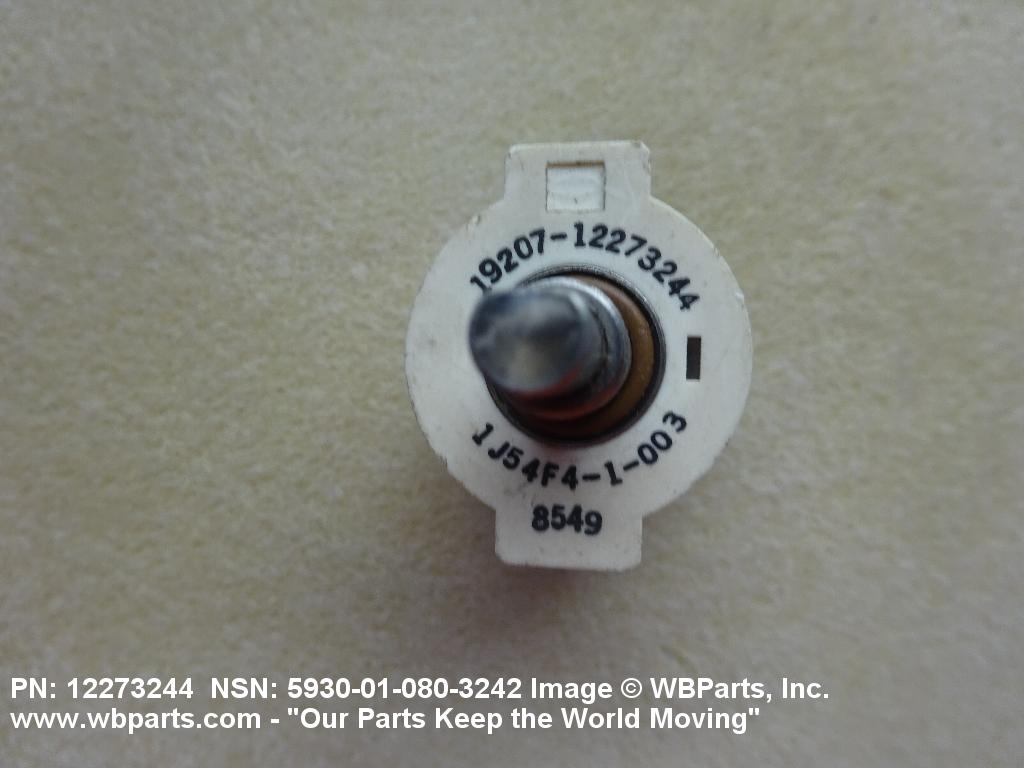

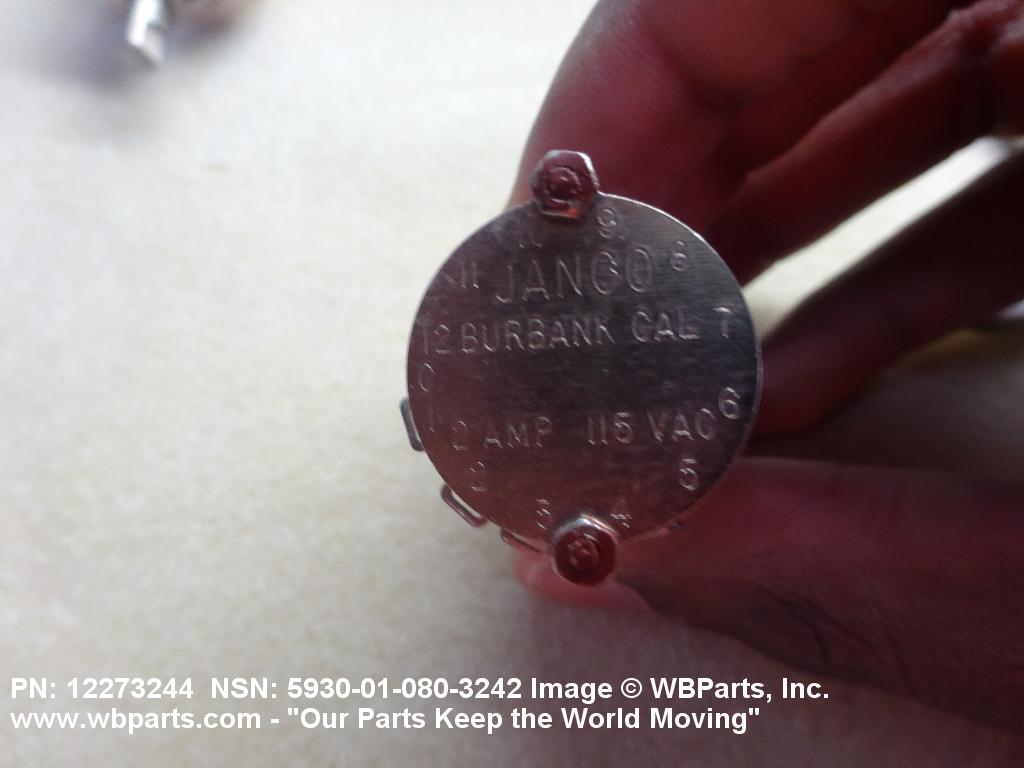

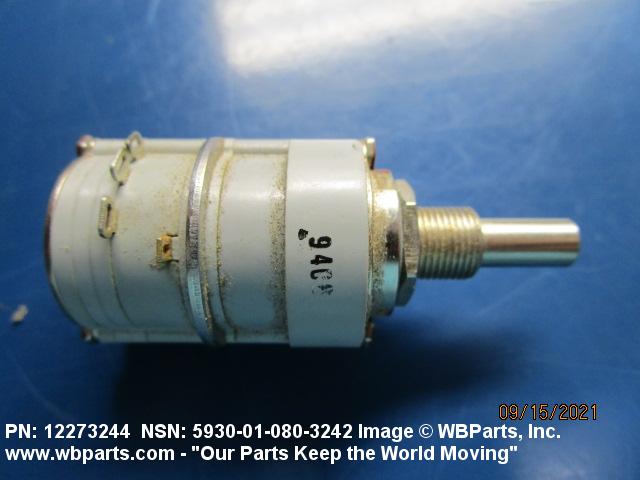

Drawings & Photos | NSN 5930-01-080-3242
Demand History | NSN 5930-01-080-3242
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-080-3242 | 2022-12-08 | 239 | DIBBS |
| 5930-01-080-3242 | 2021-10-04 | 3 | US |
| 5930-01-080-3242 | 2021-08-26 | 10 | Australia |
| 5930-01-080-3242 | 2021-08-25 | 10 | Australia |
| 5930-01-080-3242 | 2021-08-16 | 5 | Australia |
| 5930-01-080-3242 | 2019-08-01 | 162 | DIBBS |
| 5930-01-080-3242 | 2018-11-05 | 12 | US |
| 5930-01-080-3242 | 2018-06-03 | 302 | DIBBS |
| 5930-01-080-3242 | 2018-05-24 | 124 | DIBBS |
| 5930-01-080-3242 | 2017-11-12 | 103 | DIBBS |
| 5930-01-080-3242 | 2017-08-01 | 5 | AU |
| 5930-01-080-3242 | 2014-09-30 | 94 | DIBBS |
| 5930-01-080-3242 | 2013-12-31 | 1 | US |
| 5930-01-080-3242 | 2013-12-23 | 200 | US |
| 5930-01-080-3242 | 2013-10-31 | 40 | DIBBS |
| 5930-01-080-3242 | 2013-09-12 | 38 | DIBBS |
| 5930-01-080-3242 | 2013-04-18 | 1 | MANUAL |
| 5930-01-080-3242 | 2008-03-07 | 82 | DIBBS |
| 5930-01-080-3242 | 2007-09-12 | 143 | DIBBS |
Cross Reference | NSN 5930-01-080-3242
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12273244 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 3600-3656 | 31946 | COLE INSTRUMENT CORP. |
| 9S31 | 35918 | HORIZON AEROSPACE LLC DBA MAGNETICS DIVISION |
| XM65029 | 01417 | GENERAL DYNAMICS LAND SYSTEMS INC. DBA GENERAL DYNAMICS LAND SYSTEMS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5930-01-080-3242
Related Products | NSN 5930-01-080-3242
5930-01-080-3327, 5930-01-080-3328, 5930-01-080-3361, 5930-01-080-3587, 5930-01-080-3608
Technical Data | NSN 5930-01-080-3242
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 9 TAP, CIRCULAR, BUSHING MOUNT |

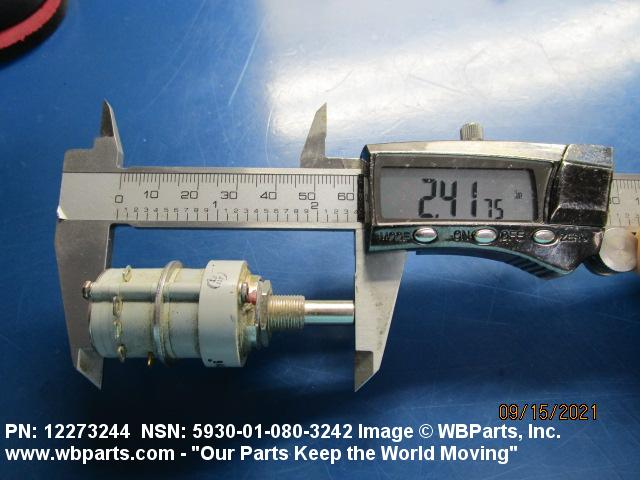

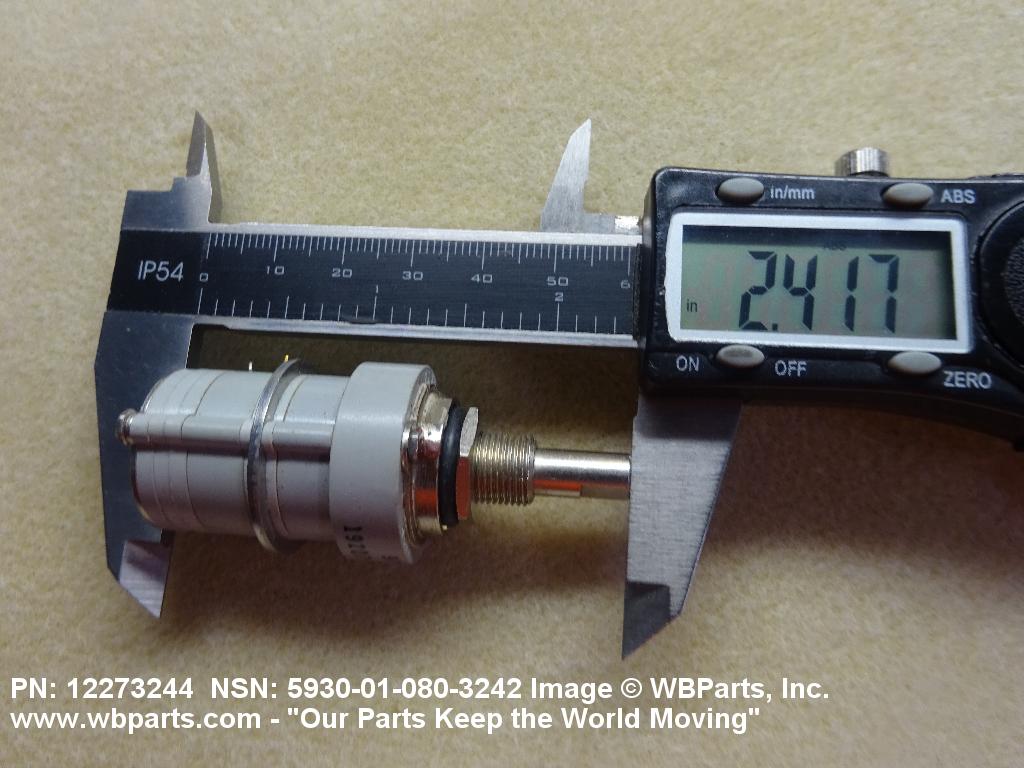

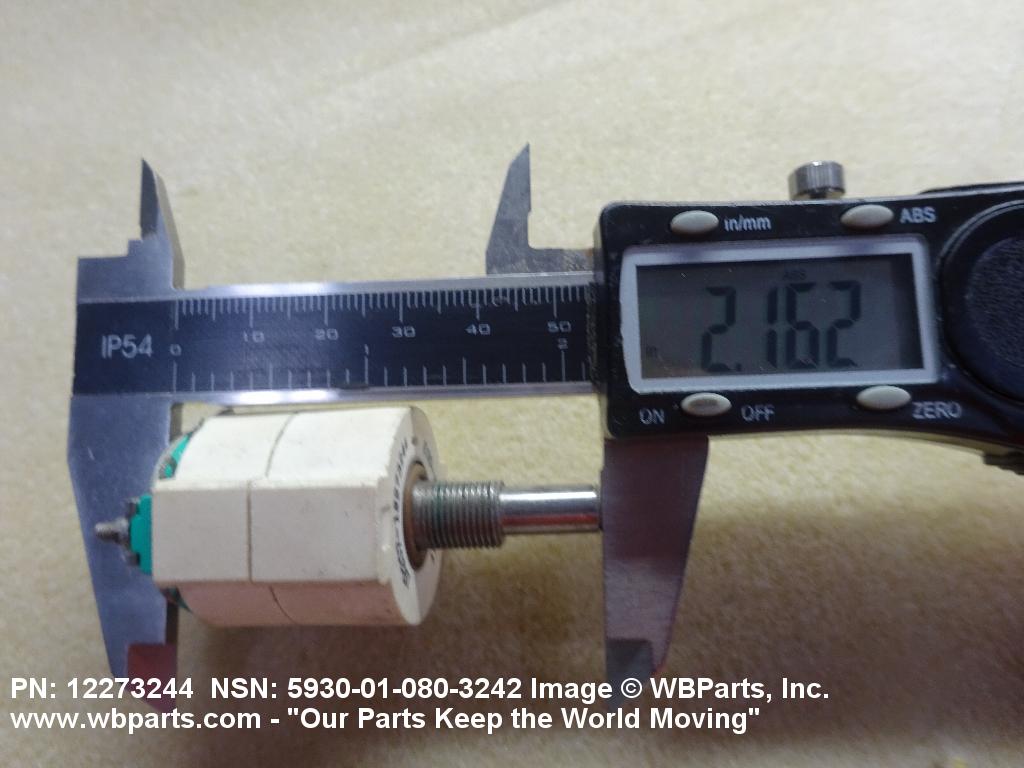

| OVERALL LENGTH | 2.817 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.500 INCHES MAXIMUM |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| POLE QUANTITY | 1 SINGLE SECTION PERIPHERY |
| THROW QUANTITY | 4 SINGLE SECTION PERIPHERY |
| CONTACT SWITCHING ACTION | BREAKS BEFORE MAKES SINGLE SECTION PERIPHERY |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 AC AT SEA LEVEL 28.0 DC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 350.0 MILLIAMPERES RESISTIVE LOAD AC AT SEA LEVEL 1.0 AMPERES RESISTIVE LOAD AND 100.0 MILLIAMPERES INDUCTIVE LOAD DC AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 4 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 30.0 DEGREES SINGLE ACTUATOR |
| SWITCH ACTUATOR STOP DEVICE TYPE | FIXED STOP SINGLE ACTUATOR |

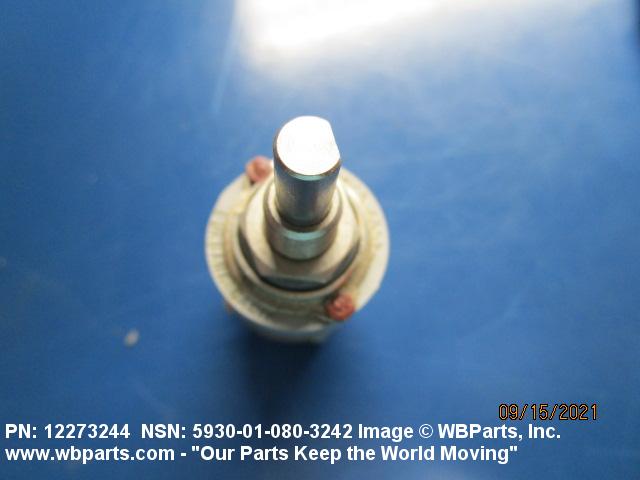

| SHAFT TYPE | ROUND, FLATTED SINGLE ACTUATOR |

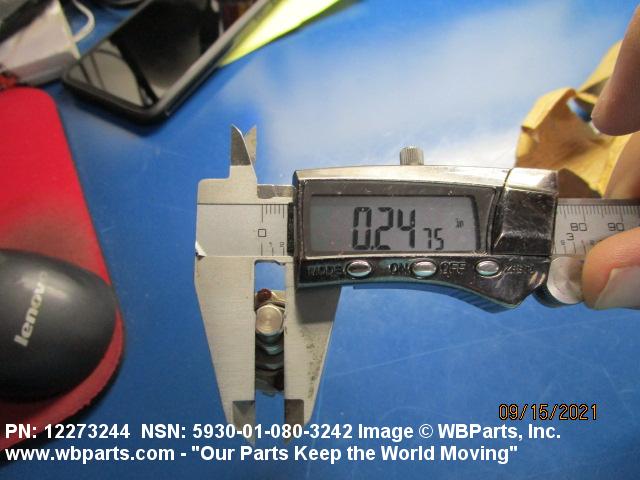

| FIRST FLAT LENGTH | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM SINGLE ACTUATOR |

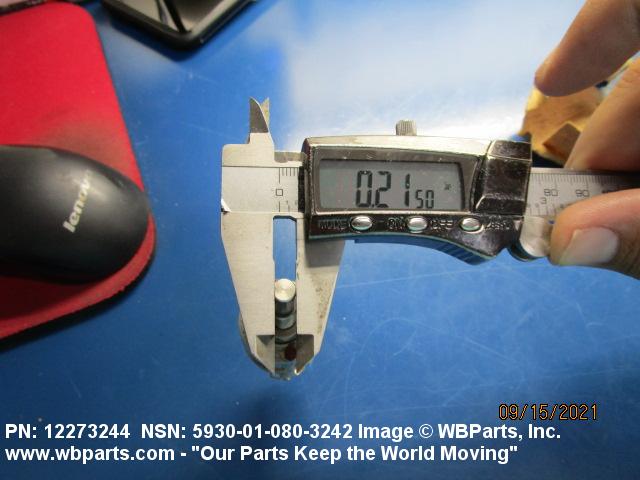

| FLAT HEIGHT | 0.216 INCHES NOMINAL SINGLE ACTUATOR |
| SHAFT DIAMETER | 0.248 INCHES MINIMUM AND 0.251 INCHES MAXIMUM SINGLE ACTUATOR |

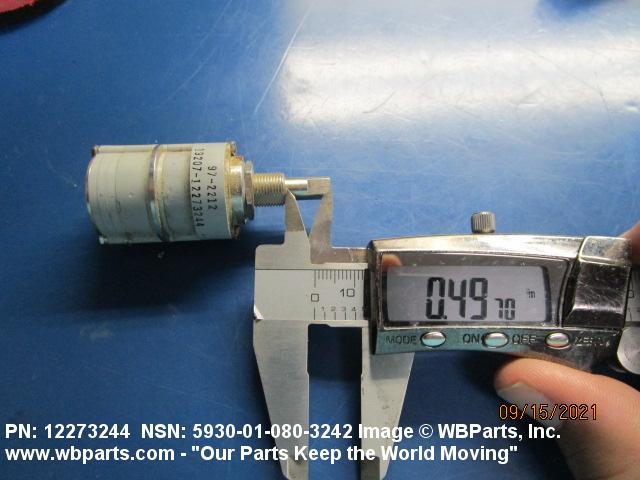

| SHAFT LENGTH | 0.500 INCHES NOMINAL SINGLE ACTUATOR |
| TERMINAL TYPE | TAB, SOLDER LUG |
| NONTURN DEVICE TYPE | FLATTED BUSHING AT 3:00 O'CLOCK |
| MOUNTING METHOD | THREADED BUSHING W/PANEL SEAL SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNEF SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.375 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2A SINGLE MOUNTING FACILITY |
| THREAD LENGTH | 0.407 INCHES MINIMUM AND 0.467 INCHES MAXIMUM SINGLE MOUNTING FACILITY |
| FEATURES PROVIDED | PUSH TO TURN |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | EXPLOSION PROOF |
| III OPERATING TEMP RANGE | -65.0 TO 125.0 DEG CELSIUS |
| III END ITEM IDENTIFICATION | TANK, COMBAT, FT, 120MM GUN (M1A1), TANK, ABRAMS M-1 |
Restrictions/Controls & Freight Information | NSN 5930-01-080-3242
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-080-3242
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | J | Tanks |
| Weapons Systems/End Item or Homogeneous Group | JE | Tank, M1 Abrams Family of Vehicles (FOV) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
