Product Details | SENSITIVE SWITCH
5930-01-411-8025 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: 654022, 65-4022, 5930-01-411-8025, 01-411-8025, 5930014118025, 014118025
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 31 MAR 1995 | 01-411-8025 | 00399 ( SWITCH, SENSITIVE ) |
Drawings & Photos | NSN 5930-01-411-8025
Cross Reference | NSN 5930-01-411-8025
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 65-4022 | 04426 | ILLINOIS TOOL WORKS INC. DIV ILLINOIS TOOL WORKS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5930-01-411-8025
5930-01-411-8101, 5930-01-411-8283, 5930-01-411-8284, 5930-01-411-8285, 5930-01-411-8311
Technical Data | NSN 5930-01-411-8025
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 10.000 AMPERES RESISTIVE DC |

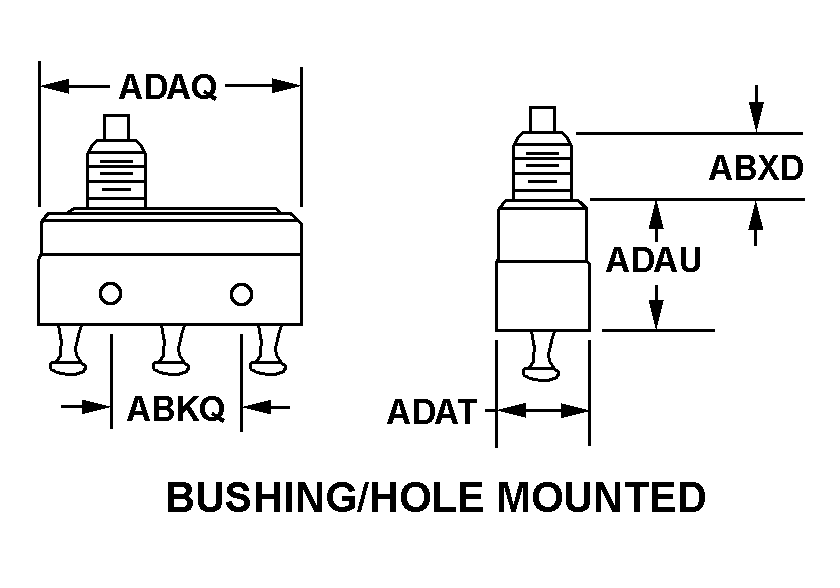

| BODY STYLE | 19M BUSHING/HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.080 INCHES NOMINAL |
| BUSHING LENGTH | 0.562 INCHES NOMINAL |
| BODY LENGTH | 0.850 INCHES NOMINAL |
| BODY WIDTH | 0.375 INCHES NOMINAL |
| BODY HEIGHT | 0.680 INCHES NOMINAL |
| SWITCH ACTUATOR QUANTITY | 1 |
| ACTUATOR STYLE | 27 ROUND |
| ACTUATOR DIAMETER | 0.125 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.320 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 1 TAB, SOLDER LUG |
| SWITCH ACTUATING FORCE | 36.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 8.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 0.020 OVERTRAVEL INCHES NOMINAL |
| INCLOSURE TYPE | FULLY INCLOSED |

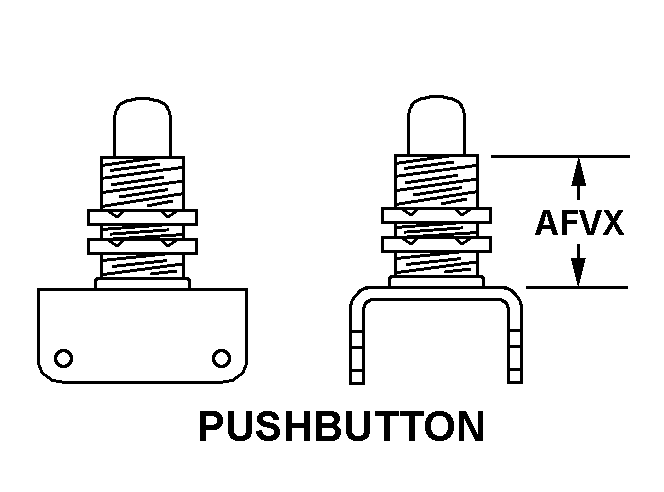

| ACTUATOR ADAPTER STYLE | 4 PUSHBUTTON |
| ADAPTER BUSHING LENGTH | 0.560 INCHES NOMINAL |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| FEATURES PROVIDED | O RING |
| III CASE MATERIAL | METAL |
