5930-01-563-6948 - SLIDE SWITCH, 3094334, 309-4334, 01-563-6948

Product Details | SLIDE SWITCH

5930-01-563-6948 A switch designed to be actuated by the sliding of a button, bar, or knob.

Part Alternates: 3094334, 309-4334, 5930-01-563-6948, 01-563-6948, 5930015636948, 015636948

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	19 MAY 2008	01-563-6948	00400 ( SWITCH, SLIDE )

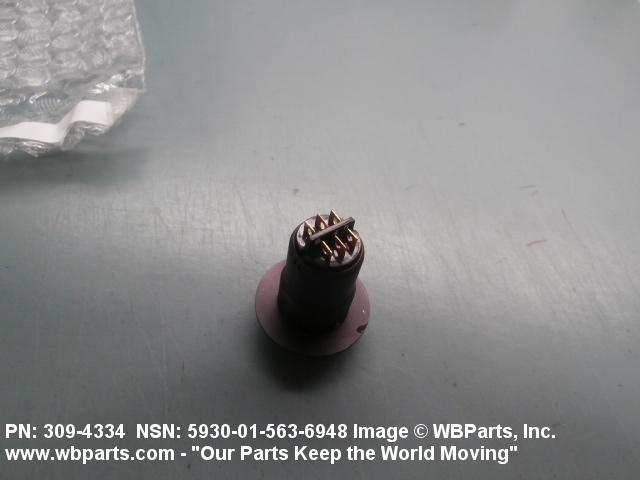

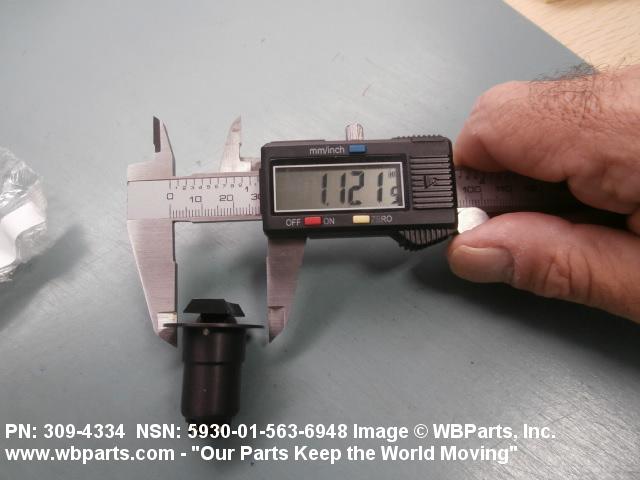

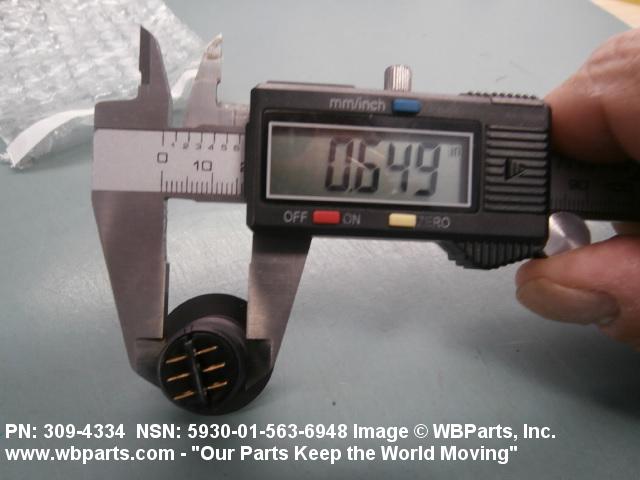

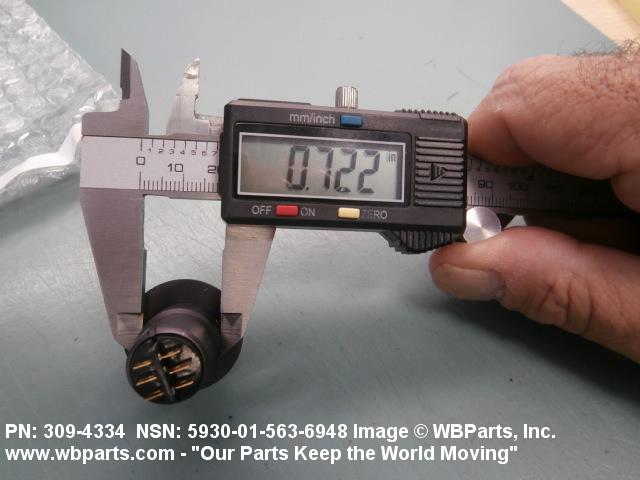

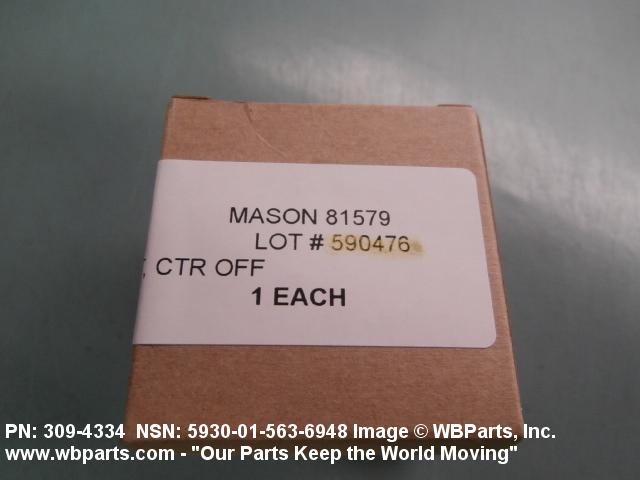

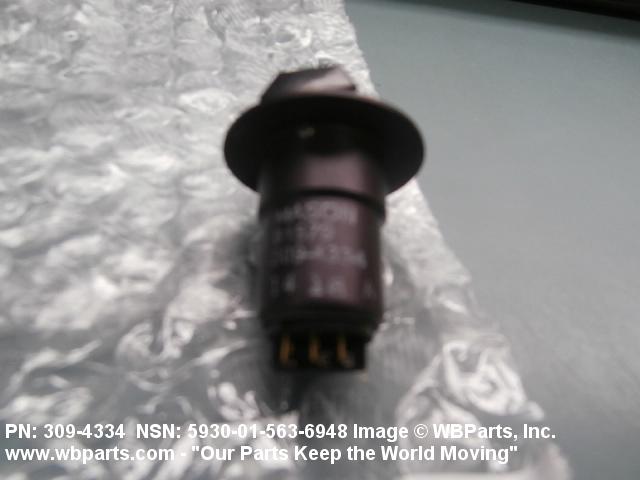

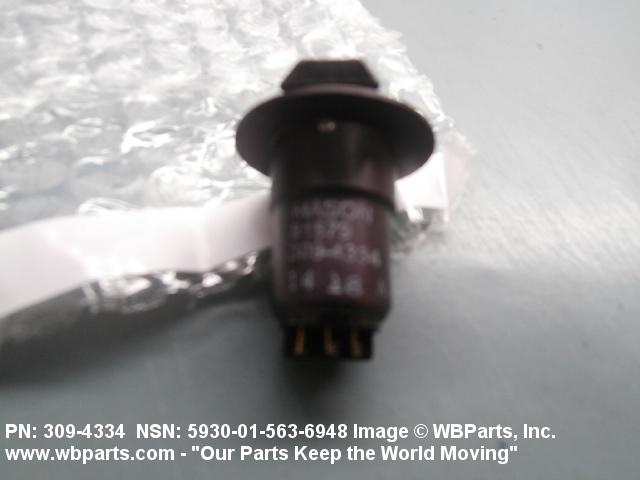

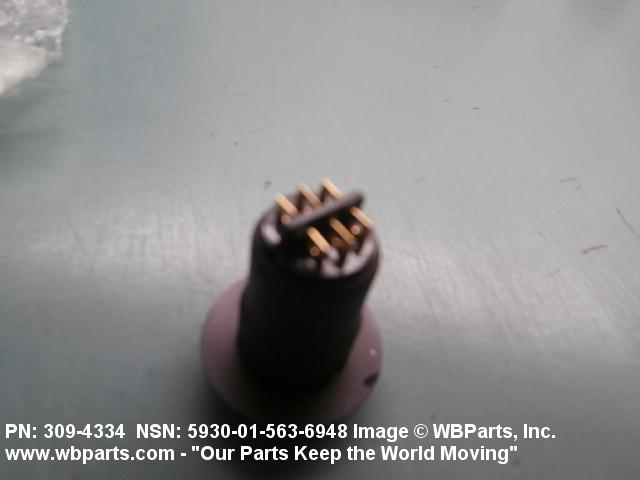

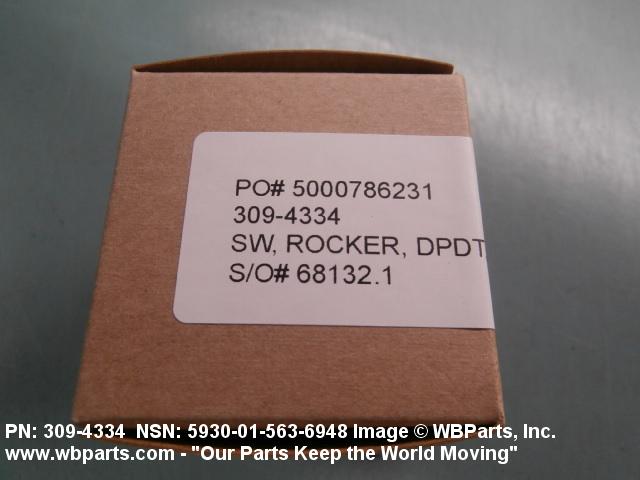

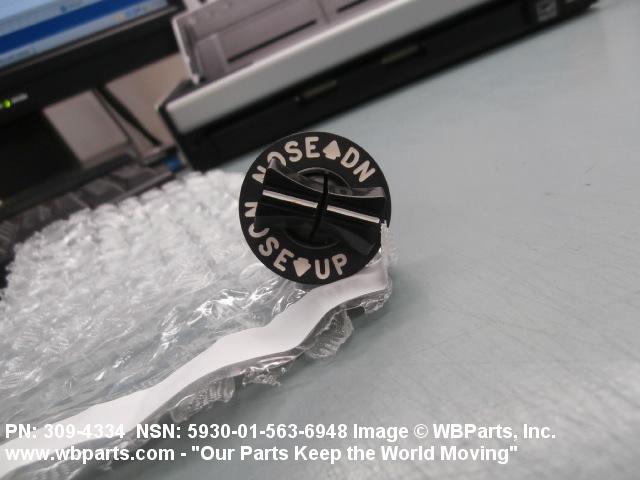

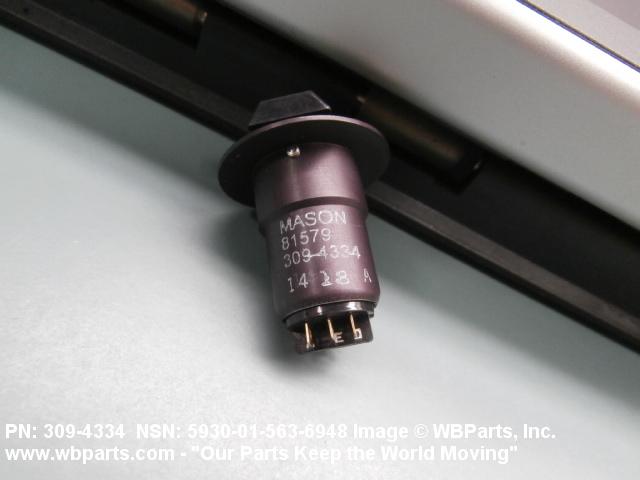

Drawings & Photos | NSN 5930-01-563-6948

Part Number	Request Date	QTY	Origin
3094334	2020-06-30	1	TR
5930-01-563-6948	2019-02-04	4	US
5930-01-563-6948	2018-07-25	10	BE
5930-01-563-6948	2014-06-04	1	Canada
3094334	2012-10-03	1	US
5930-01-563-6948	2011-07-29	5	US
3094334	2011-07-13	2	CA
3094334	2011-06-17	2	US
3094334	2010-12-02	2	CA

Cross Reference | NSN 5930-01-563-6948

Part Number	Cage Code	Manufacturer

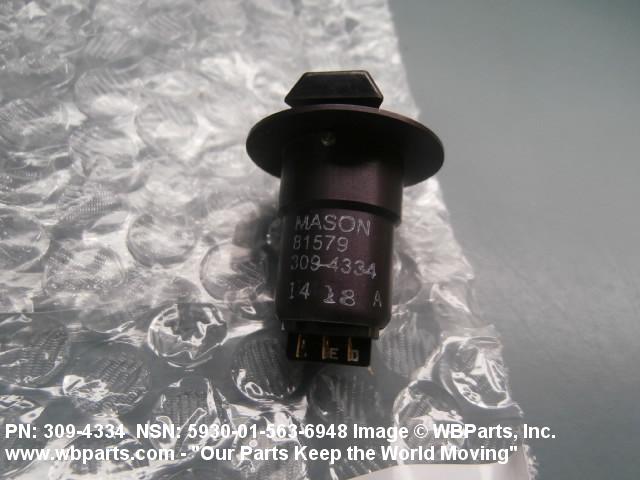

309-4334	81579	MASON ELECTRIC COMPANY

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5930-01-563-6948

Compare

Related Products | NSN 5930-01-563-6948

5930-01-563-6979, 5930-01-563-6981, 5930-01-563-7077, 5930-01-563-7114, 5930-01-563-7204

Technical Data | NSN 5930-01-563-6948

Characteristic	Specifications
III END ITEM IDENTIFICATION	DENMARK ARMED FORCES
III PART NAME ASSIGNED BY CONTROLLING AGENCY	LIGHT DUTY, EXTERNAL THREAD MOUNTROCKER SWITCH

Restrictions/Controls & Freight Information | NSN 5930-01-563-6948

Restictions
Freight

Category	Code	Description
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
