Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY
5935-00-112-3298 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MSD104PM494, SMA796486, 11308040, 138C698H04, 5935-00-112-3298, 00-112-3298, 5935001123298, 001123298
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 AUG 1968 | 00-112-3298 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-112-3298
Demand History | NSN 5935-00-112-3298
Cross Reference | NSN 5935-00-112-3298
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11308040 | 17773 | BALLISTIC MISSILE DEFENSE SYSTEMS COMMAND |
| 138C698H04 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| MSD104PM494 | 09922 | SOURIAU USA, INC. |
| SMA796486 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5935-00-112-3298
Related Products | NSN 5935-00-112-3298
5935-00-112-3331, 5935-00-112-3334, 5935-00-112-3335, 5935-00-112-3337, 5935-00-112-3338
Technical Data | NSN 5935-00-112-3298
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 31G STRAIGHT SHAPE, RECTANGULAR |
| OVERALL LENGTH | 4.520 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.113 INCHES NOMINAL |
| OVERALL WIDTH | 2.830 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.812 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 2.500 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | JACKSCREW |
| THREADED DEVICE TYPE | COUPLING FACILITY AND MOUNTING STUD |
| THREAD SERIES DESIGNATOR | UNC AND UNC AND UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES AND 0.112 INCHES AND 0.138 INCHES |
| THREAD CLASS | 2A AND 2A AND 2A |
| THREAD QUANTITY PER INCH | 40 AND 40 AND 32 |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND AND RIGHT-HAND |
| POLARIZATION METHOD | GUIDE PIN/SOCKET |
| ROUND GUIDE TYPE AND LOCATION | PIN RIGHT-HAND AND SOCKET LEFT-HAND |
| MATING END QUANTITY | 1 |

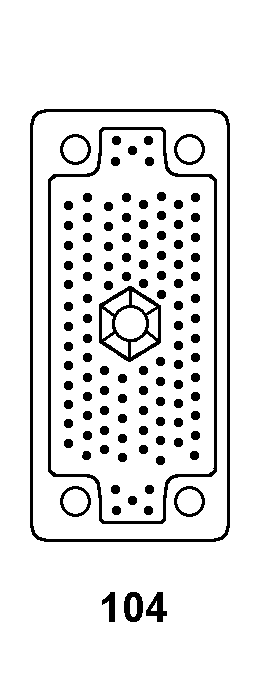

| CONTACT POSITION ARRANGEMENT STYLE | EKAA 104 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE SINGLE MATING END |
| INSERT MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-45204 MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END |
| MISSING CONTACT TYPE AND QUANTITY | 104 COAXIAL PIN OR 104 COAXIAL SOCKET SINGLE MATING END SINGLE CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE |
| ENVIRONMENTAL PROTECTION | HEAT RESISTANT AND COLD RESISTANT AND SALT WATER RESISTANT AND MOISTURE RESISTANT AND VIBRATION RESISTANT AND SHOCK RESISTANT |
