NSN 5935-00-227-8394 MS3106A225P, MS3106A22-5P, AN3106A225P
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-227-8394 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: MS3106A225P, MS3106A22-5P, AN3106A225P, AN3106A22-5P, MILC5015, 4118735080, 4118735-080, 5935-00-227-8394, 00-227-8394, 5935002278394, 002278394
Electrical and Electronic Equipment Components | Connectors, Electrical
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 01 JAN 1963 | 00-227-8394 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Demand History | NSN 5935-00-227-8394
Part Number | Request Date | QTY | Origin |
---|---|---|---|
MS3106A225P | 2013-06-152 | 2 | us |
Cross Reference | NSN 5935-00-227-8394
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5935-00-227-8394
Technical Data | NSN 5935-00-227-8394
Characteristic | Specifications |
---|---|
BODY STYLE | 7A STRAIGHT SHAPE, INTERNAL COUPLING |
OVERALL LENGTH | 2.188 INCHES MAXIMUM |
OVERALL DIAMETER | 1.594 INCHES MAXIMUM |
CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
THREADED DEVICE TYPE | BACK SHELL AND COUPLING FACILITY |
THREAD SERIES DESIGNATOR | UNEF AND UNEF |
NOMINAL THREAD SIZE | 1.188 INCHES AND 1.375 INCHES |
THREAD CLASS | 2A AND 2B |
THREAD QUANTITY PER INCH | 18 AND 18 |
THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND |
NOMINAL THREAD LENGTH | 0.563 INCHES AND 0.625 INCHES |
SHELL TYPE | SOLID |
SHELL MATERIAL | ALUMINUM ALLOY |
SHELL SURFACE TREATMENT | CADMIUM |
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
POLARIZATION METHOD | KEY, MULTIPLE KEY GROOVE |
INSERT POSITION IN DEG | 0.0 |
MATING END QUANTITY | 1 |

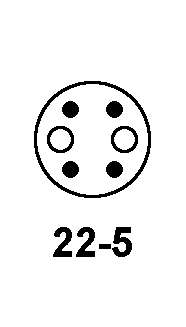

CONTACT POSITION ARRANGEMENT STYLE | AGAM 22-5 SINGLE MATING END |
INCLUDED CONTACT QUANTITY | 2 SINGLE MATING END 1ST CONTACT GROUPING 4 SINGLE MATING END 2ND CONTACT GROUPING |
CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END ALL CONTACT GROUPINGS |
CONTACT MAXIMUM CURRENT RATING IN AMPS | 41.0 SINGLE MATING END 1ST CONTACT GROUPING 22.0 SINGLE MATING END 2ND CONTACT GROUPING |
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 900.0 SINGLE MATING END ALL CONTACT GROUPINGS |
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 1250.0 SINGLE MATING END ALL CONTACT GROUPINGS |
CONTACT SURFACE TREATMENT | GOLD AND SILVER SINGLE MATING END ALL CONTACT GROUPINGS |
TERMINAL TYPE | SOLDER WELL SINGLE MATING END ALL CONTACT GROUPINGS |
TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND SALT WATER RESISTANT AND VIBRATION RESISTANT |
TEST DATA DOCUMENT | 81349-MIL-C-5015 SPECIFICATION |
SPECIFICATION/STANDARD DATA | 81349-MIL-C-5015 GOVERNMENT SPECIFICATION |
III PRECIOUS MATERIAL | GOLD AND SILVER |
III PRECIOUS MATERIAL AND WEIGHT | 0.030 GOLD GRAINS, TROY AND 0.030 SILVER GRAINS, TROY |
III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD AND |
Restrictions/Controls & Freight Information | NSN 5935-00-227-8394
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | G | Item contains gold |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 061680 | ELEC WIRING PLUGS ETC |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 723 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-227-8394
Category | Code | Description |
---|---|---|
Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
