Product Details | TIP PLUG
5935-00-259-2545 A banana or pin type termination applied to the end of a single electrical conductor and designed to be inserted in a jack or binding post. May be insulated or uninsulated. Excludes TIP, TEST PROD and PLUG, TELEPHONE.
Part Alternates: A32129, J85-2, P2141, J852, 7103469P1, 8608980001, 860898-0001, 9828001, 982800-1, 10049259, 108, 12Z71157000, 12Z7115-7000, 16, 20279, 25112, 25-112, 286031, 28-6031, 33156, 33-156, 360, 361-2010-00, 3612010000, 361-2010-000, 402, 50C65842, 50C6584-2, 51161, 5735, 5935-00-259-2545, 00-259-2545, 5935002592545, 361201000, 002592545
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-259-2545 | 15046 ( PLUG, TIP ) |
Drawings & Photos | NSN 5935-00-259-2545
Demand History | NSN 5935-00-259-2545
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-259-2545 | 2019-06-18 | 179 | DIBBS |
| 5935-00-259-2545 | 2017-06-04 | 136 | DIBBS |
| 5935-00-259-2545 | 2017-02-17 | 136 | DIBBS |
| 5935-00-259-2545 | 2017-02-06 | 136 | DIBBS |
| 402 | 2016-12-13 | 16 | US |
| 5935-00-259-2545 | 2016-11-29 | 136 | DIBBS |
| 16 | 2015-05-26 | 1 | US |
| 5935-00-259-2545 | 2012-09-28 | 223 | DIBBS |
| 5935-00-259-2545 | 2012-08-30 | 223 | DIBBS |
| 5935-00-259-2545 | 2012-04-20 | 223 | DIBBS |
| 5935-00-259-2545 | 2012-01-18 | 223 | DIBBS |
| 402 | 2010-03-16 | 1 | US |
| 402 | 2010-03-16 | 1 | US |
| 402 | 2010-03-16 | 1 | US |
| 360 | 2009-06-25 | 0 | US |
Cross Reference | NSN 5935-00-259-2545
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10049259 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 108 | 83330 | DIALIGHT CORPORATION |
| 108 | 87268 | SMITH H P PAPER CO SUB OF PHILLIPS PETROLEUM CO |
| 12Z7115-7000 | 94135 | NAVAL ORDNANCE STANDARDS |
| 16 | 83330 | DIALIGHT CORPORATION |
| 16 | 91967 | ABBATRON, LLC DIV ABBATRON LLC |
| 20279 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 25-112 | 20907 | ELECTRONIC DISTRIBUTORS INC |
| 28-6031 | 11530 | LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN INFORMATION |
| 33-156 | 72653 | GC/WALDOM INC |
| 360 | 99872 | ENTRON INDUSTRIES LIMITED PARTNERSHIP |
| 361-2010-00 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 361-2010-000 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 402 | 71002 | BIRNBACH CO INC |
| 50C6584-2 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 51161 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| 5735 | 04009 | COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV |
| 5735 | 1PQF4 | L-3 COMMUNICATIONS CORPORATION DBA LINK SIMULATION & TRAINING |
| 5735 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 7103469P1 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 7103469P1 | 24446 | GENERAL ELECTRIC CO |
| 860898-0001 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 860898-0001 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION |
| 982800-1 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| A32129 | 06845 | RAYTHEON COMPANY DBA RAYTHEON |
| J85-2 | 70892 | BEAD INDUSTRIES INC |
| P2141 | 08742 | ASTEC AMERICA INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5935-00-259-2545
Related Products | NSN 5935-00-259-2545
5935-00-259-2546, 5935-00-259-2550, 5935-00-259-2551, 5935-00-259-2552, 5935-00-259-2555
Technical Data | NSN 5935-00-259-2545
| Characteristic | Specifications |
|---|---|
| FINGER TYPE | TEST PROD SINGLE FINGER |
| FINGER LENGTH | 0.500 INCHES NOMINAL SINGLE FINGER |
| FINGER DIAMETER | 0.080 INCHES NOMINAL SINGLE FINGER |

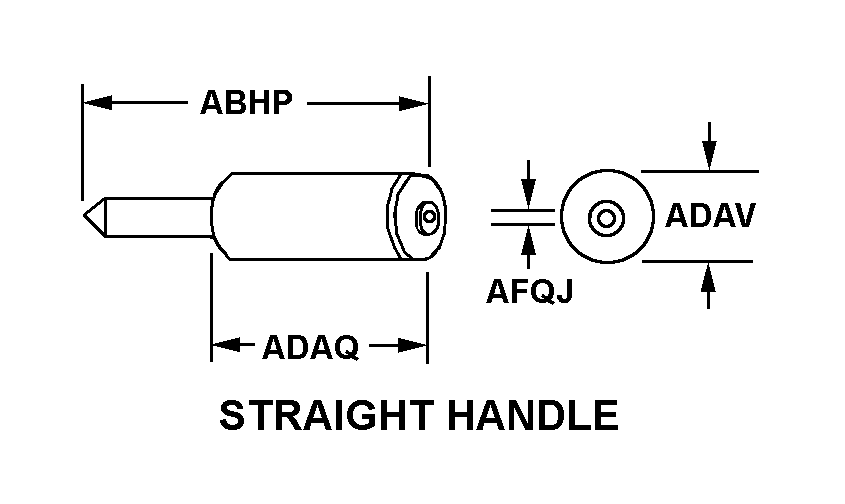

| BODY STYLE | 5 STRAIGHT HANDLE |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| BODY LENGTH | 0.500 INCHES NOMINAL |
| OVERALL DIAMETER | 0.156 INCHES NOMINAL |
| CABLE ENTRANCE DIAMETER | 0.118 INCHES NOMINAL |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | BRASS BODY BRASS FINGER BRASS HANDLE |
| SURFACE TREATMENT | NICKEL BODY NICKEL FINGER NICKEL HANDLE |
| IDENTIFICATION CODE COLOR | NATURAL |
| TERMINAL TYPE | SOLDER WELL |
| MAXIMUM VOLTAGE RATING IN VOLTS | NOT RATED |
| CURRENT RATING IN AMPS | 12.0 |
| MANUFACTURERS CODE | 94135 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | 12Z7115-7000 |
