NSN 5935-00-492-5438 XG1530, XG-1530, 00-492-5438

Product Details | CONNECTOR ADAPTER


5935-00-492-5438 An adapter with electrical contacts which provides facilities for joining two or more electrical connectors, whose design or function will not normally warrant their junction. It is not designed for permanent attachment to a cable, cord, coaxial line, or wire. The physical shape of an electrical connector should not be the determining factor of its name. Tee, angle, straight, and Y-shaped adapters are all ADAPTER, CONNECTOR. Excludes ADAPTER, CONNECTOR TO LAMPBASE; ADAPTER, LAMPHOLDER TO CONNECTOR; ADAPTER (1), CABLE CLAMP TO CONNECTOR; and ADAPTER, LAMPHOLDER. For items designed as a mechanical connection between an electrical conduit and an electrical connector, see ADAPTER (1), ELECTRICAL CONDUIT.

Part Alternates: XG1530, XG-1530, 5935-00-492-5438, 00-492-5438, 5935004925438, 004925438

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG) NSN Assign. NIIN
59 30 SEP 1970 00-492-5438

Drawings & Photos | NSN 5935-00-492-5438




Cross Reference | NSN 5935-00-492-5438


Part Number Cage Code Manufacturer
XG-1530 94375 AUTOMATIC CONNECTOR
XG1530 94315 NEW ENGLAND TRANSFORMER CO INC

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 5935-00-492-5438


Technical Data | NSN 5935-00-492-5438


Characteristic Specifications

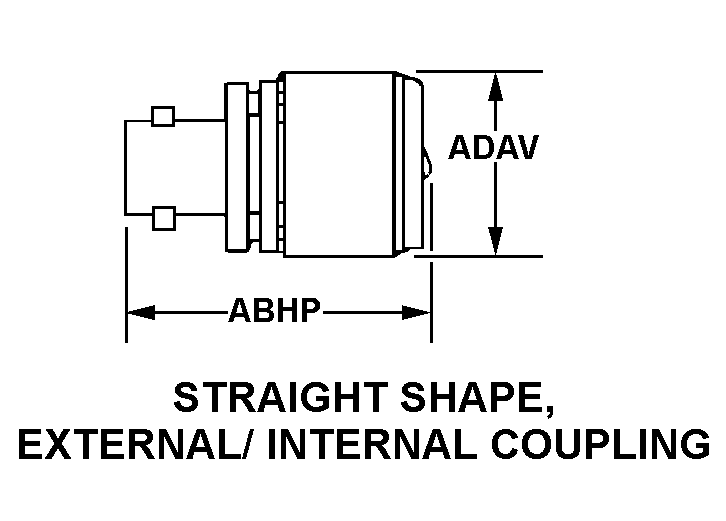

BODY STYLE 1N STRAIGHT SHAPE, EXTERNAL/INTERNAL COUPLING
OVERALL LENGTH 0.875 INCHES NOMINAL
CONNECTOR LOCKING METHOD BAYONET PIN AND EXTERNALLY THREADED SHELL
THREADED DEVICE TYPE COUPLING FACILITY
THREAD SERIES DESIGNATOR UNF
NOMINAL THREAD SIZE 0.190 INCHES
THREAD CLASS 2A
THREAD DIRECTION RIGHT-HAND
SHELL TYPE SOLID
SHELL MATERIAL COPPER ALLOY
SHELL SURFACE TREATMENT GOLD AND SILVER
MATING END QUANTITY 2
CONTACT POSITION ARRANGEMENT STYLE ABBJ BNC 1ST MATING END ABDB NONSTD 2ND MATING END
INSERT MATERIAL PLASTIC POLYESTER SINGLE MATING END
INCLUDED CONTACT QUANTITY 1 1ST MATING END ALL CONTACT GROUPINGS 1 2ND MATING END ALL CONTACT GROUPINGS
CONTACT REMOVABILITY NONREMOVABLE ALL MATING ENDS ALL CONTACT GROUPINGS
INCLUDED CONTACT TYPE COAXIAL PIN 1ST MATING END ALL CONTACT GROUPINGS COAXIAL SOCKET 2ND MATING END ALL CONTACT GROUPINGS
CONTACT MATERIAL COPPER ALLOY ALL MATING ENDS ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT GOLD AND SILVER ALL MATING ENDS ALL CONTACT GROUPINGS
III PRECIOUS MATERIAL GOLD AND SILVER
III PRECIOUS MATERIAL AND WEIGHT 0.010 GOLD GRAINS, TROY AND 0.010 SILVER GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION CONTACT AND SHELL SURFACES GOLD AND CONTACT AND SHELL SURFACES SILVER
