Product Details | RECEPTACLE DUMMY CONNECTOR
5935-01-320-6911 An item specifically designed to mate with a plug connector to perform one or more special functions, such as to support a plug connector when not in use, short contacts, or open or close electrical circuits, in or on another connector. It does not have provisions for attaching a wire, cable, or contact. It is designed to mount on a panel, bulkhead, wall, or chassis. It does not include connector shells which are merely used to position a plug connector on a panel.
Part Alternates: M38999/10-10B, M389991010B, MIL-C-38999/10, MILC3899910, 5935-01-320-6911, 01-320-6911, 5935013206911, 013206911
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 JUN 1990 | 01-320-6911 | 15092 ( DUMMY CONNECTOR, RECEPTACLE ) |

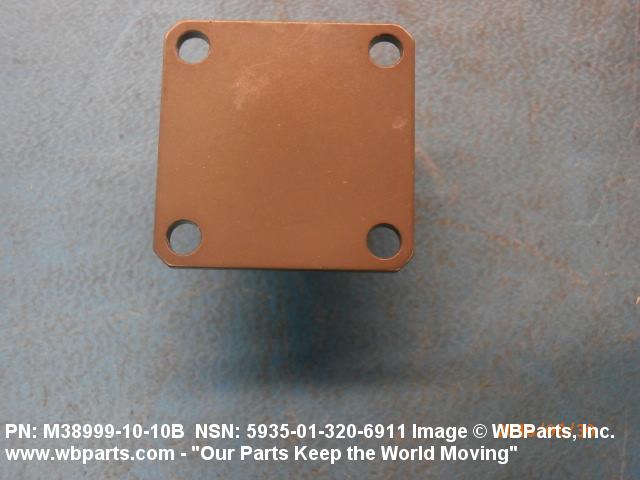

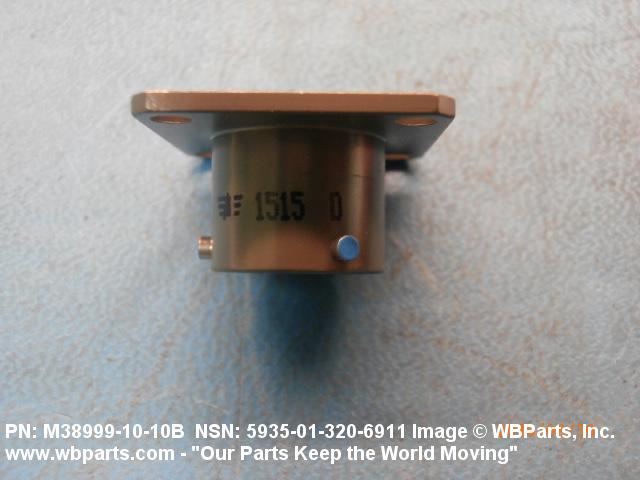

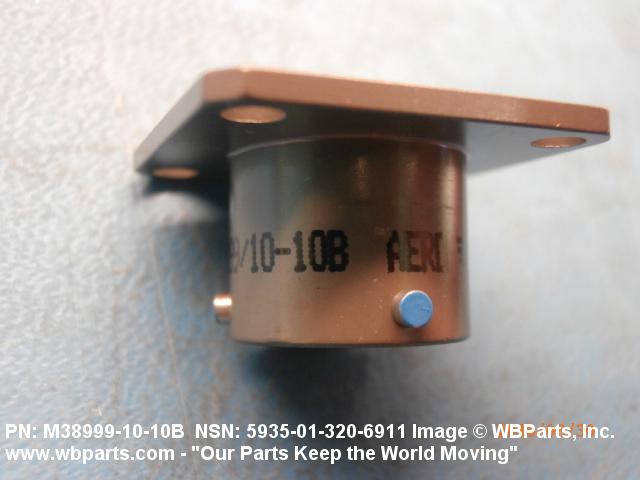

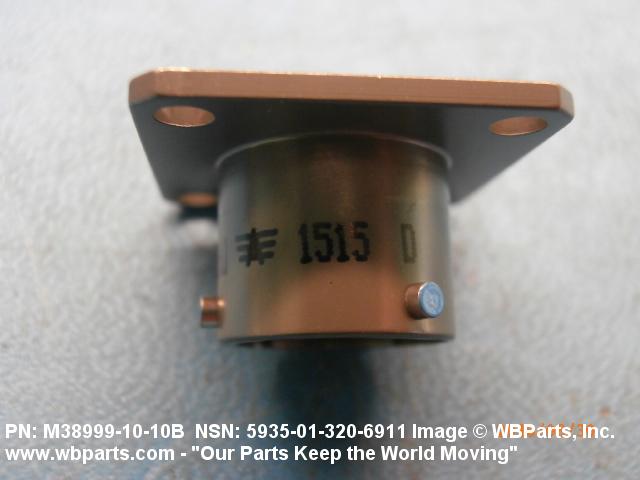

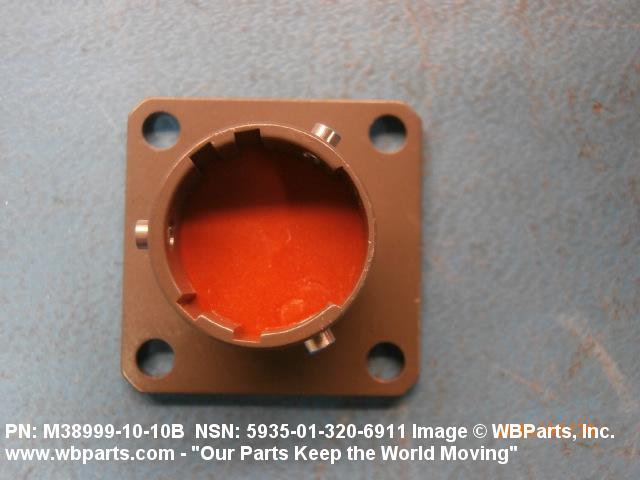

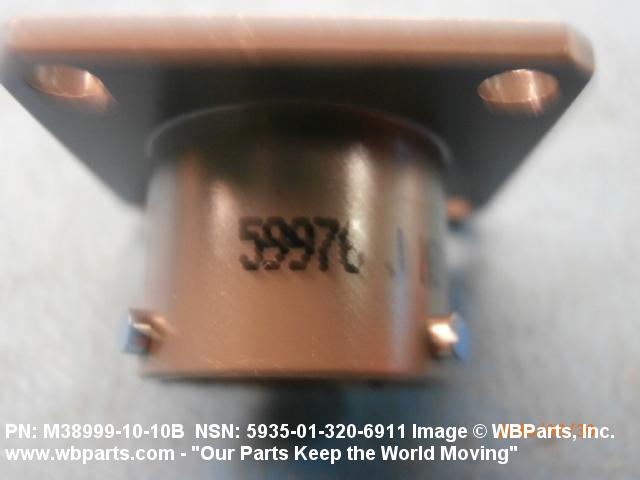

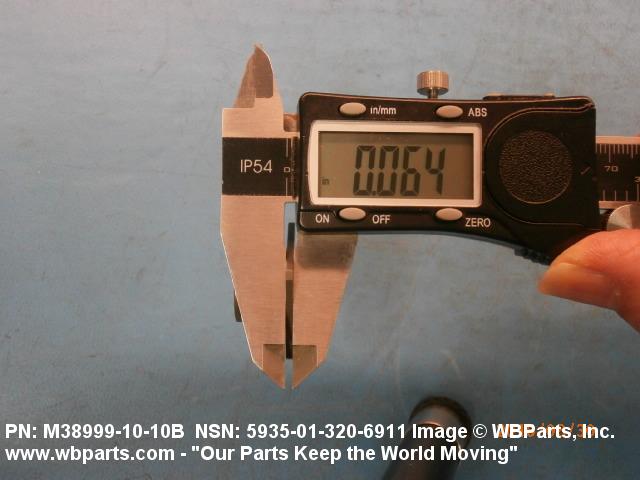

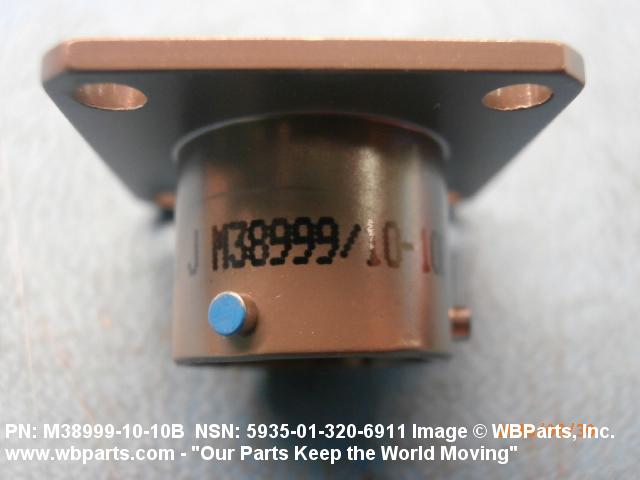

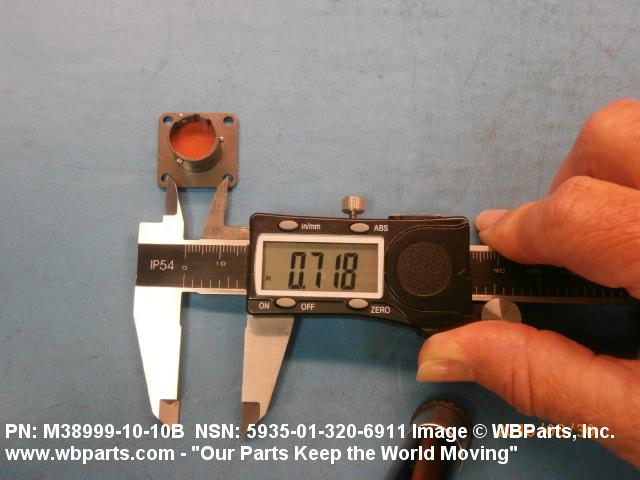

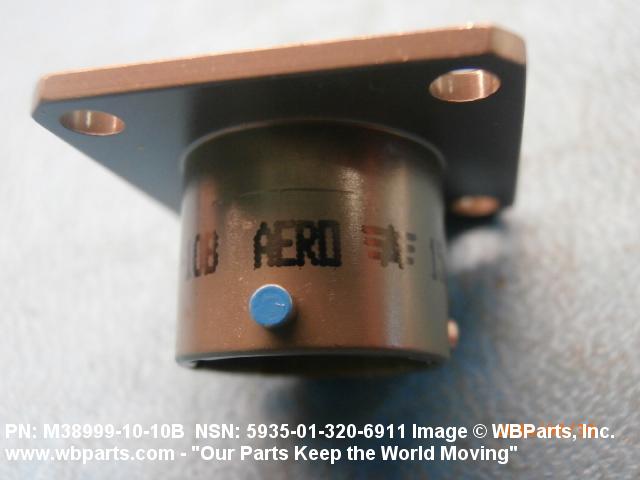

Drawings & Photos | NSN 5935-01-320-6911
Demand History | NSN 5935-01-320-6911
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-320-6911 | 2024-02-08 | 298 | DIBBS |
| 5935-01-320-6911 | 2017-11-30 | 302 | DIBBS |
| 5935-01-320-6911 | 2017-09-14 | 155 | DIBBS |
| 5935-01-320-6911 | 2017-08-07 | 71 | DIBBS |
| M389991010B | 2016-08-25 | 34 | United States |
| M389991010B | 2016-08-23 | 60 | United States |
| 5935-01-320-6911 | 2015-10-28 | 174 | DIBBS |
| 5935-01-320-6911 | 2015-09-10 | 36 | DIBBS |
| M389991010B | 2015-08-06 | 4 | United States |
| 5935-01-320-6911 | 2015-07-12 | 41 | DIBBS |
| 5935-01-320-6911 | 2012-07-23 | 50 | DIBBS |
| 5935-01-320-6911 | 2011-08-15 | 0 | DIBBS |
| M389991010B | 2010-11-30 | 13 | United States |
| 5935-01-320-6911 | 2007-02-28 | 225 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5935-01-320-6911
Related Products | NSN 5935-01-320-6911
5935-01-320-6912, 5935-01-320-6913, 5935-01-320-6914, 5935-01-320-6915, 5935-01-320-6957
Technical Data | NSN 5935-01-320-6911
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 1G STRAIGHT SHAPE, EXTERNAL COUPLING |

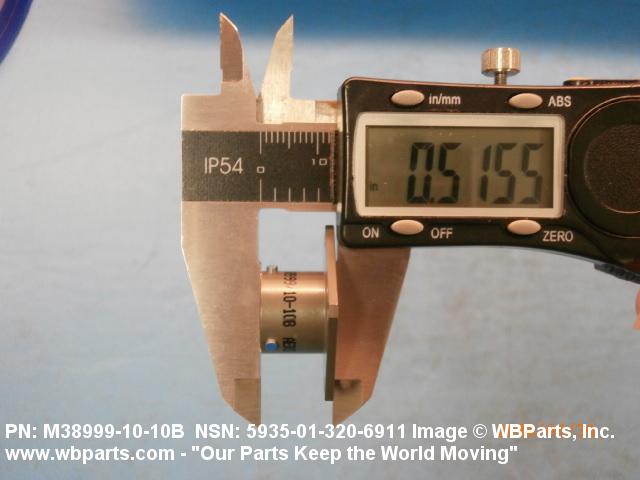

| OVERALL LENGTH | 0.509 INCHES NOMINAL |
| OVERALL HEIGHT | 0.954 INCHES MAXIMUM |
| OVERALL WIDTH | 0.954 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.719 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.719 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.441 INCHES MINIMUM AND 0.461 INCHES MAXIMUM |

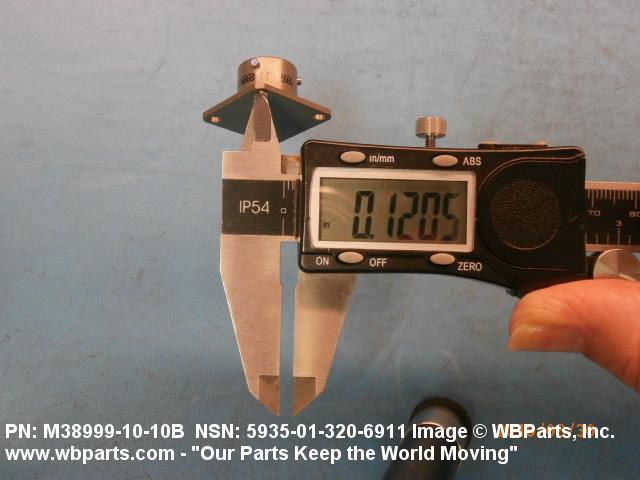

| UNTHREADED MOUNTING HOLE DIAMETER | 0.115 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | BAYONET PIN |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |
| FURNISHED ITEMS | GASKET |
| ENVIRONMENTAL PROTECTION | MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF AND CORROSION RESISTANT AND DUST RESISTANT AND FUEL RESISTANT AND FUNGUS RESISTANT AND HUMIDITY RESISTANT AND OIL RESISTANT AND SHOCK RESISTANT AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT |
| TEST DATA DOCUMENT | 81349-MIL-C-38999 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-38999/10 GOVERNMENT SPECIFICATION |
| III OPERATING TEMP RATING | -65.0 DEG CELSIUS MINIMUM AND 175.0 DEG CELSIUS MAXIMUM |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-38999/10 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M38999/10-10B |
Restrictions/Controls & Freight Information | NSN 5935-01-320-6911
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
