5940-00-242-0947 A metallic postlike terminal, insulated or uninsulated, which is mounted on a board, chassis, panel, or other similar supporting surface. It is designed for frequent manual connections and disconnections of at least one electrical conductor, such as a wire, alligator clip, or spade lug. It may have additional tip jack features for the acceptance of banana plugs, phone tips, and the like. It may also have provisions for permanently attaching an electrical conductor(s). For items which require all electrical conductors to be permanently attached (soldered, crimped, and the like), see TERMINAL, STUD. See also JACK, TIP.
Part Alternates: C653121, C65312-1, 6605, 15, 15CAPTAIN, 5940-00-242-0947, 00-242-0947, 5940002420947, 002420947
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-242-0947 | 00883 ( POST, BINDING, ELECTRICAL ) |
Drawings & Photos | NSN 5940-00-242-0947
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5940-00-242-0947
5940-00-242-0948, 5940-00-242-0949, 5940-00-242-0950, 5940-00-242-0951, 5940-00-242-0952
Technical Data | NSN 5940-00-242-0947
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A1 SINGLE POST, ROUND |
| OVERALL HEIGHT | 1.250 INCHES |
| OVERALL DIAMETER | 0.625 INCHES |
| MAXIMUM HEIGHT ABOVE MOUNTING SURFACE | 1.250 INCHES |
| CAP OUTSIDE DIAMETER | 0.625 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | SCREW CAP W/SLOT SINGLE END |

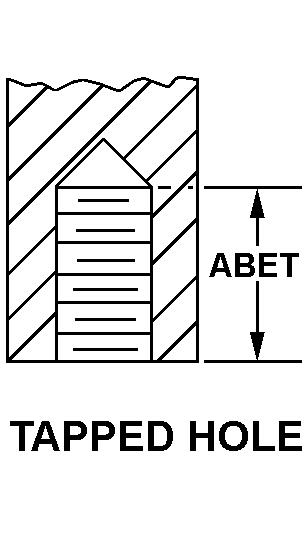

| MOUNTING METHOD STYLE | D28 TAPPED HOLE |
| THREAD LENGTH | 0.219 INCHES |
| MOUNTING THREAD SERIES | UNC |
| MOUNTING THREAD DIAMETER | 0.250 INCHES |
| MOUNTING THREAD QUANTITY | 20 PER INCH |
| ELECTRICAL INSULATION FEATURE | UNINSULATED CAPS WITH UNINSULATED STUDS |
| MATERIAL | COPPER ALLOY CONDUCTOR ACCOMMODATION COPPER ALLOY MOUNTING FACILITY |
| SURFACE TREATMENT | NICKEL CONDUCTOR ACCOMMODATION SINGLE LAYER NICKEL MOUNTING FACILITY SINGLE LAYER |
| SPECIAL FEATURES | GRIP AID CAP |
