Product Details | CONDUCTOR SPLICE
5940-01-301-2912 An item designed to expedite or simplify the connection of two or more electrical conductors without bringing them to a fixed point such as a binding post or terminal. It may have a separate tubular shaped piece of nonmetallic, flexible material designed to be slipped over the crimped first piece to seal the conductor joint through heat sealing.
Part Alternates: S0208R93, S0208R-93, D146020193, D-146-0201-93, 1145054611, 11450546-11, 5940-01-301-2912, 01-301-2912, 5940013012912, 013012912
Electrical and Electronic Equipment Components | Lugs, Terminals, and Terminal Strips
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 MAY 1989 | 01-301-2912 | 00137 ( SPLICE, CONDUCTOR ) |

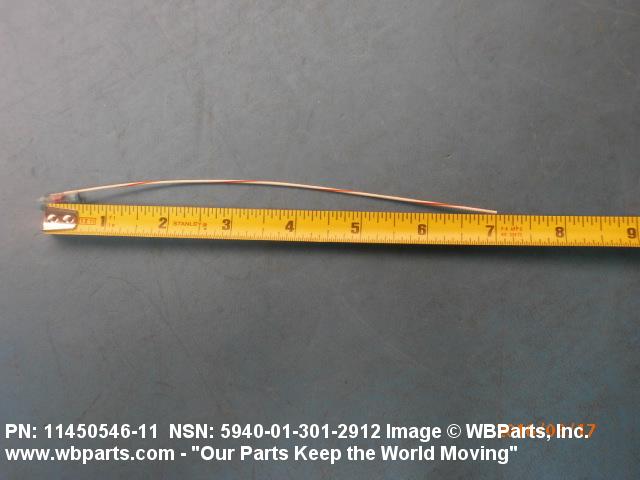

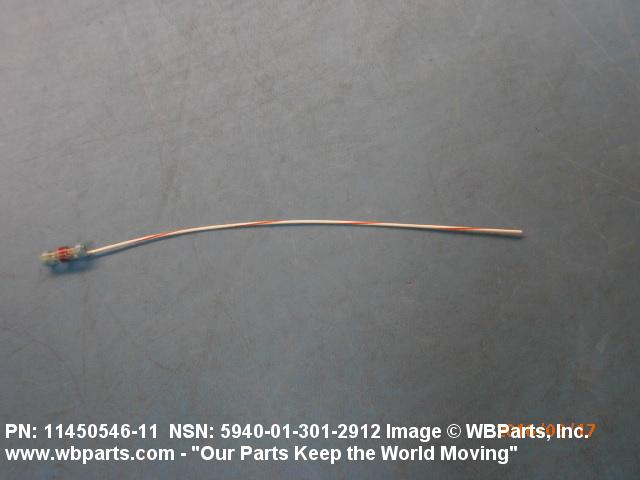

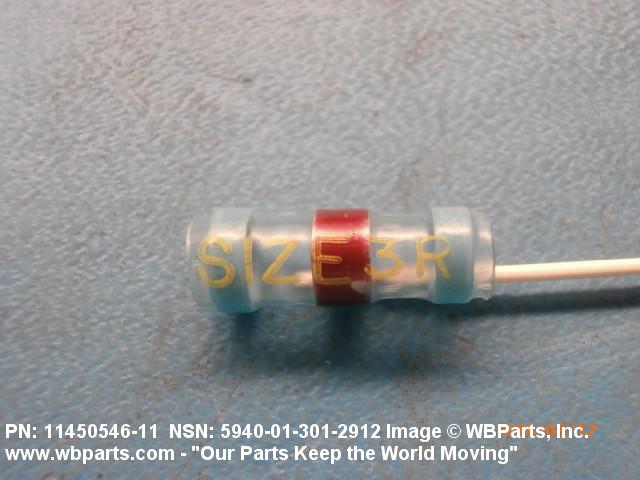

Drawings & Photos | NSN 5940-01-301-2912
Demand History | NSN 5940-01-301-2912
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5940-01-301-2912
5940-01-301-2913, 5940-01-301-2914, 5940-01-301-2915, 5940-01-301-3223, 5940-01-301-3402
Technical Data | NSN 5940-01-301-2912
| Characteristic | Specifications |
|---|---|
| BASIC SHAPE STYLE | A58 HEAT SHRINKABLE |

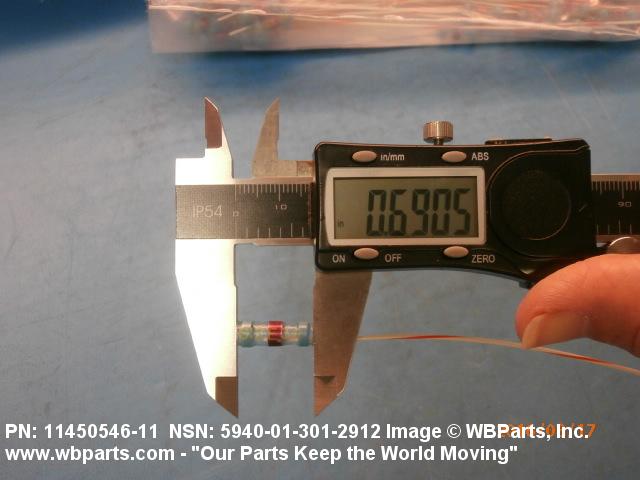

| OVERALL LENGTH | 0.650 INCHES |
| CONDUCTOR ACCOMMODATION TYPE | STRAIGHT BARREL ALL ENDS |
| ELECTRICAL INSULATION FEATURE | HEAT SHRINKABLE SLEEVE |
| IDENTIFICATION CODE COLOR | WHITE |
| MATERIAL | PLASTIC POLYVINYLIDENE FLUORIDE INSULATION |
| SPECIAL FEATURES | PREINSTALLED LEAD LG. 6.0 IN; LEAD COLOR WHITE AND ORANGE STRIPES |
| CRITICALITY CODE JUSTIFICATION | FEAT |
Restrictions/Controls & Freight Information | NSN 5940-01-301-2912
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
