5945-00-134-5530 A self-contained device that performs the function of opening or closing an electrical circuit in response to electrical changes in an external circuit. In lieu of separable contacts and their actuator(s), the switching function is accomplished by means of an arrangement of semiconductors and passive circuit devices. The device is designed to have electrical isolation between control circuit and output circuit. Excludes RELAY, HYBRID.
Part Alternates: AE14400299, AE144-002-99, 010944, 1350S597, 1350-S597, 2060754571, 206-075-457-1, 5945-00-134-5530, 00-134-5530, 5945001345530, 001345530
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 JUN 1969 | 00-134-5530 | 31446 ( RELAY, SOLID STATE ) |

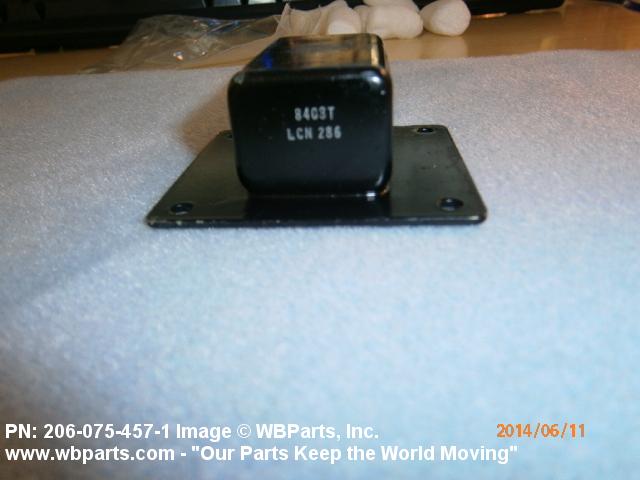

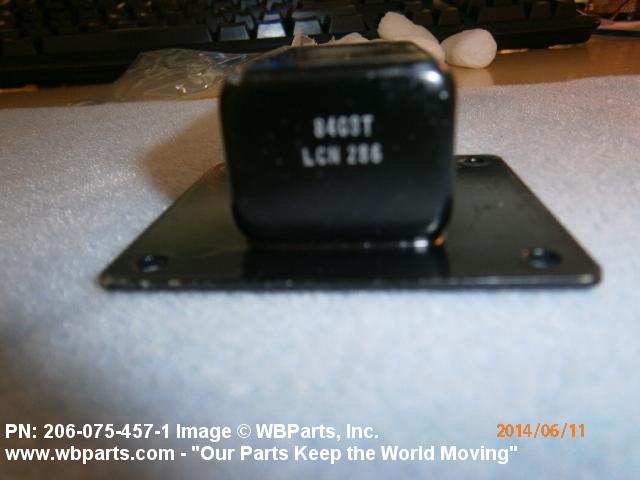

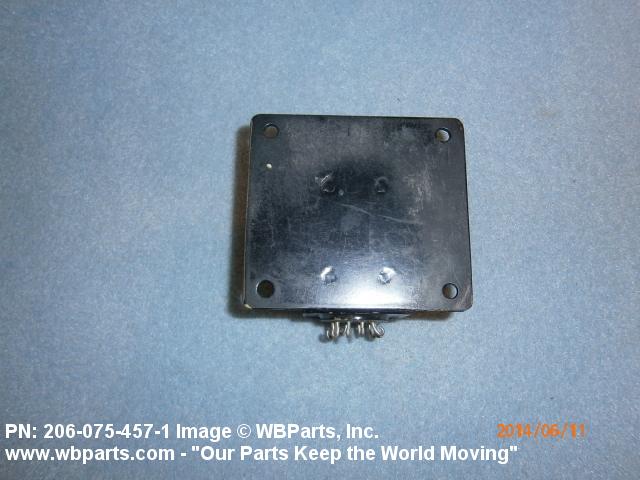

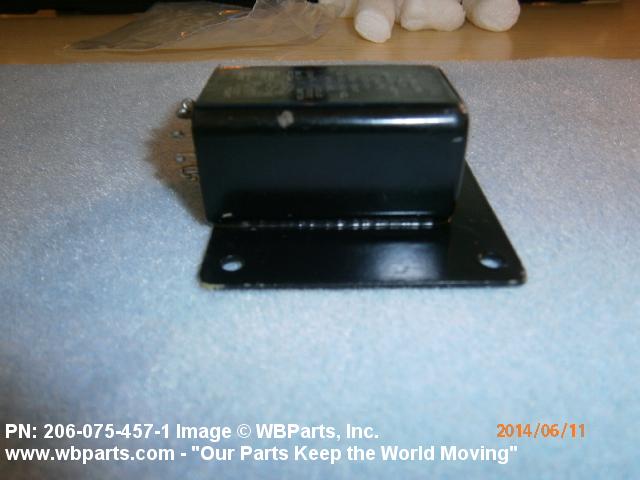

Drawings & Photos | NSN 5945-00-134-5530
Demand History | NSN 5945-00-134-5530
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-00-134-5530 | 2017-06-29 | 14 | DIBBS |
| 5945-00-134-5530 | 2016-11-13 | 13 | DIBBS |
| 5945-00-134-5530 | 2016-08-11 | 5 | DIBBS |
| 5945-00-134-5530 | 2016-07-31 | 5 | DIBBS |
| 2060754571 | 2014-05-22 | 1 | United States |
| 5945-00-134-5530 | 2013-09-24 | 16 | DIBBS |
| 5945-00-134-5530 | 2013-09-09 | 16 | DIBBS |
| 5945-00-134-5530 | 2011-01-13 | 2 | US |
| 5945-00-134-5530 | 2008-04-09 | 11 | DIBBS |
| 5945-00-134-5530 | 2008-03-03 | 30 | DIBBS |
| 5945-00-134-5530 | 2008-01-08 | 12 | DIBBS |
| 5945-00-134-5530 | 2007-10-05 | 15 | DIBBS |
Cross Reference | NSN 5945-00-134-5530
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 010944 | 02289 | HI-G CO INC SUB OF NYTRONICS INC |
| 1350-S597 | 00779 | TYCO ELECTRONICS CORPORATION |
| 1350-S597 | 02289 | HI-G CO INC SUB OF NYTRONICS INC |
| 1350-S597 | 58614 | TYCO ELECTRONICS CORPORATION DBA CII TECHNOLOGIES |
| 206-075-457-1 | 97499 | BELL HELICOPTER TEXTRON INC. |
| AE144-002-99 | 55901 | DARE ELECTRONICS, INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5945-00-134-5530
Related Products | NSN 5945-00-134-5530
5945-00-134-5540, 5945-00-134-5551, 5945-00-134-5556, 5945-00-134-5575, 5945-00-134-5577
Technical Data | NSN 5945-00-134-5530
| Characteristic | Specifications |
|---|---|

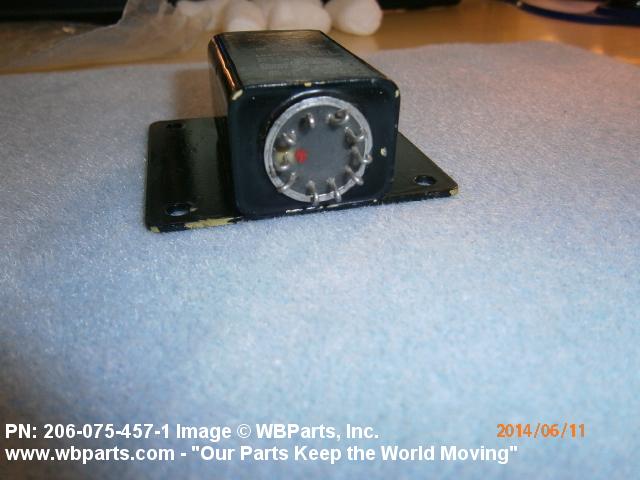

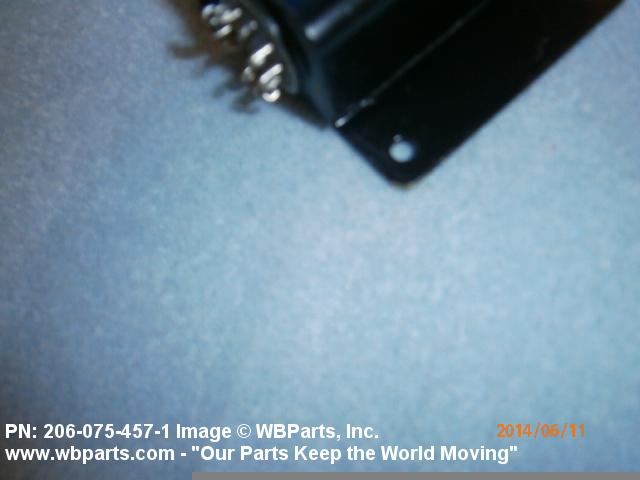

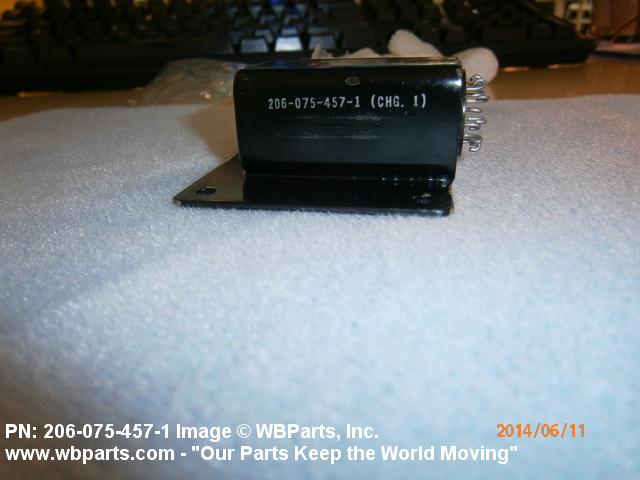

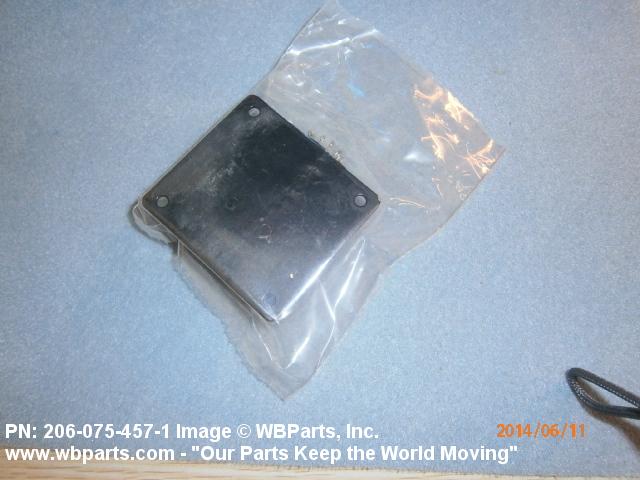

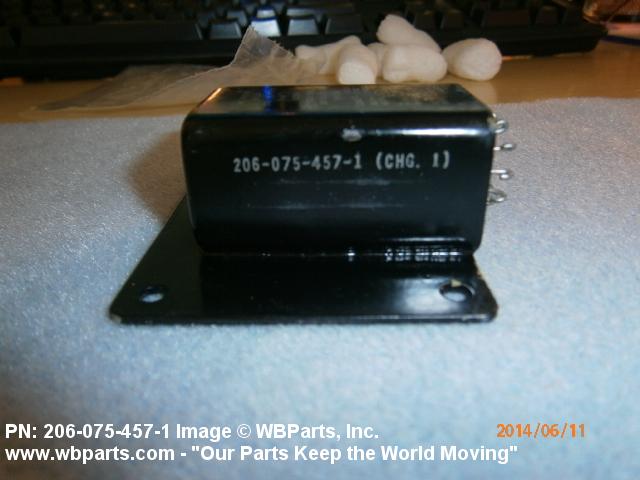

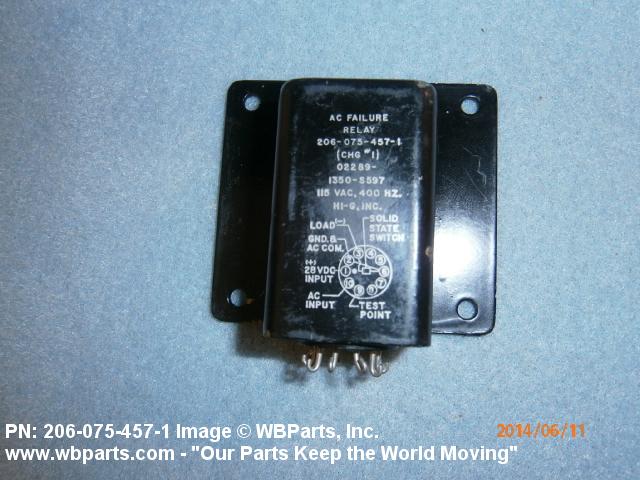

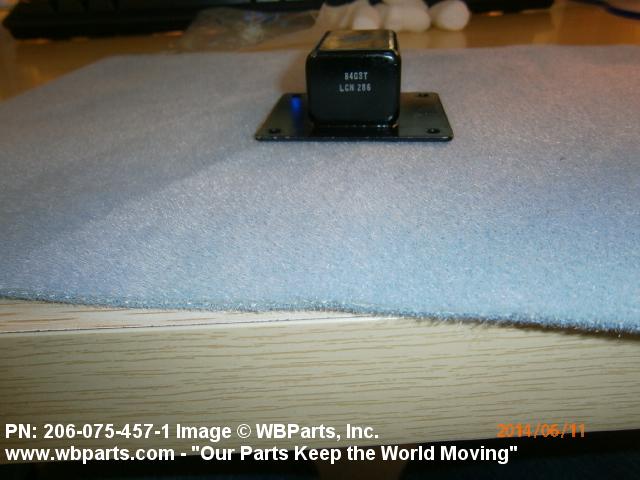

| SPECIAL FEATURES | CONTACT DATA SPST NC,ELECTRICAL DATA 115VAC 400HZ INPUT VOLTAGE,17 TO 30VDC AUX INPUT VOLTAGE,200MA MAX AT 28VDC OUTPUT VOLTAGE,-32 DEG C TO 71 DEG C OPERATING TEMP RANGE,HERMETIC SEAL,20000 FT MAX ALTITUDE,1.00 IN. H,2.44 IN. W,2.56 IN. L MAX O/A DIM.,FLANGE MTD,FOUR 0.178 IN DIA MTG HOLES SPACED ON 1.875 IN. BY 2.062 IN. MTG CTR |
