Product Details | THERMAL FLASHER
5945-00-134-6533 An item designed to complete, interrupt or change the connections in one or more electrical lighting circuits in accordance with a predetermined time cycle. It is actuated by the effect of heat generated by current passing through its circuit(s). Excludes CONTROL, DIRECTIONAL SIGNAL LIGHT, AUTOMOTIVE, and SWITCH THERMOSTATIC. See also FLASHER, SOLID STATE.
Part Alternates: AC100A2, AC-100A-2, FB100A2, FB100A-2, 20005000, 200-05-000, 2060755295, 206-075-529-5, 3270023, 5945-00-134-6533, 00-134-6533, 5945001346533, 001346533
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 AUG 1969 | 00-134-6533 | 08410 ( FLASHER, THERMAL ) |

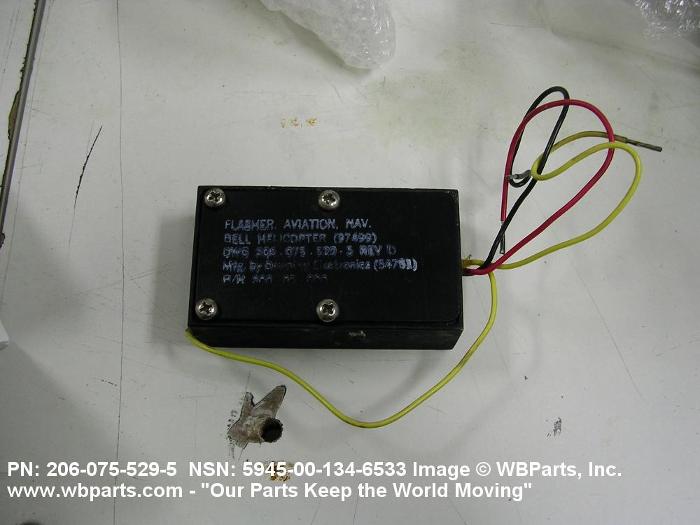

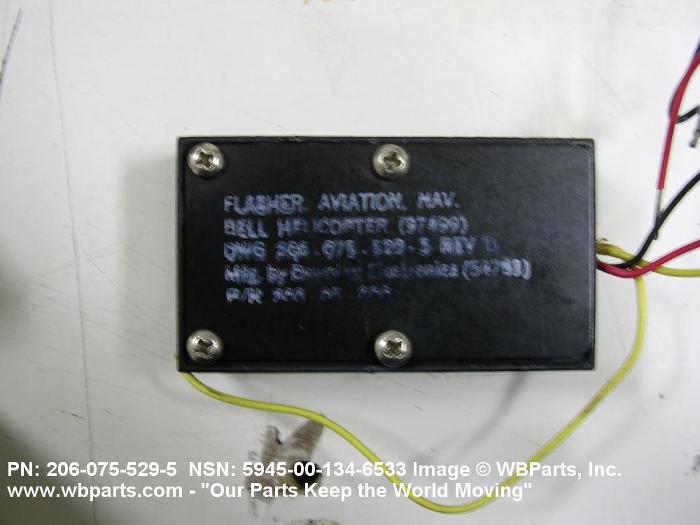

Drawings & Photos | NSN 5945-00-134-6533
Demand History | NSN 5945-00-134-6533
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2060755295 | 2021-11-08 | 2 | us |
| 5945-00-134-6533 | 2020-07-28 | 1 | US |
| 2060755295 | 2014-01-21 | 5 | IR |
| 2060755295 | 2011-05-22 | 25 | China |
| 5945-00-134-6533 | 2011-03-22 | 1 | US |
| 5945-00-134-6533 | 2011-01-18 | 66 | DIBBS |
| 5945-00-134-6533 | 2008-09-02 | 3 | United States |
| 5945-00-134-6533 | 2008-08-22 | 3 | United States |
| 5945-00-134-6533 | 2008-08-06 | 2 | United States |
| 5945-00-134-6533 | 2008-07-11 | 3 | US |
| 5945-00-134-6533 | 2008-03-13 | 200 | DIBBS |
| 5945-00-134-6533 | 2008-01-31 | 150 | DIBBS |
| 5945-00-134-6533 | 2007-12-13 | 83 | DIBBS |
| 5945-00-134-6533 | 2007-10-19 | 67 | DIBBS |
| 5945-00-134-6533 | 2007-05-25 | 68 | DIBBS |
| 5945-00-134-6533 | 2007-05-07 | 1 | US |
Cross Reference | NSN 5945-00-134-6533
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 200-05-000 | 54751 | DOWNING ELECTRONICS INC |
| 206-075-529-5 | 09959 | AIRCRAFT INSTRUMENTS COMPANY |
| 206-075-529-5 | 33871 | BILL MCCLUNG INC DBA ACSI INDUSTRIES |
| 206-075-529-5 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 3270023 | 09959 | AIRCRAFT INSTRUMENTS COMPANY |
| AC-100A-2 | 22644 | NEO-FLASHER ELECTRONICS INC |
| FB100A-2 | 25331 | BETAMITE ELECTRONIC DEVICES |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5945-00-134-6533
Related Products | NSN 5945-00-134-6533
5945-00-134-6555, 5945-00-134-7172, 5945-00-134-7272, 5945-00-134-7343, 5945-00-134-7350
Technical Data | NSN 5945-00-134-6533
| Characteristic | Specifications |
|---|---|
| ADJUSTABILITY | NONADJUSTABLE |
| FLASHING RATE | 90 PER MINUTE NOMINAL |
| CONTROLLED CIRCUIT QUANTITY | 2 |
| ACTUATION TYPE | ELECTROMECHANICAL |
| DC VOLTAGE RATING | 28.0 VOLTS MAXIMUM |
| TERMINAL QUANTITY | 4 |
| TERMINAL TYPE | WIRE LEAD |
| ENVIRONMENTAL PROTECTION | DUSTPROOF |
| OVERALL LENGTH | 3.750 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.930 INCHES MAXIMUM |
| OVERALL WIDTH | 2.100 INCHES MAXIMUM |
| MOUNTING CONFIGURATION | FOUR NO. 8/0.164 IN./32 THD HOLES ON 1.620 IN. BY 1.620 IN. MTG CENTERS |
Restrictions/Controls & Freight Information | NSN 5945-00-134-6533
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5945-00-134-6533
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
