5945-00-619-0528 - ELECTROMAGNETIC RELAY, 177702, 6957ED302C, 6957ED30-2C

Product Details | ELECTROMAGNETIC RELAY

5945-00-619-0528 A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coil(s). Includes solenoid and armature types. Excludes CONTACTOR, MAGNETIC; RELAY, METER MOVEMENT; RELAY, MOTOR DRIVEN; RELAY, REED; RELAY, RESONANT REED; RELAY, ROTARY; and SWITCH, STEPPING.

Part Alternates: 177702, 6957ED302C, 6957ED30-2C, 5945-00-619-0528, 00-619-0528, 5945006190528, 006190528

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	20 FEB 1975	00-619-0528	32512 ( RELAY, ELECTROMAGNETIC )

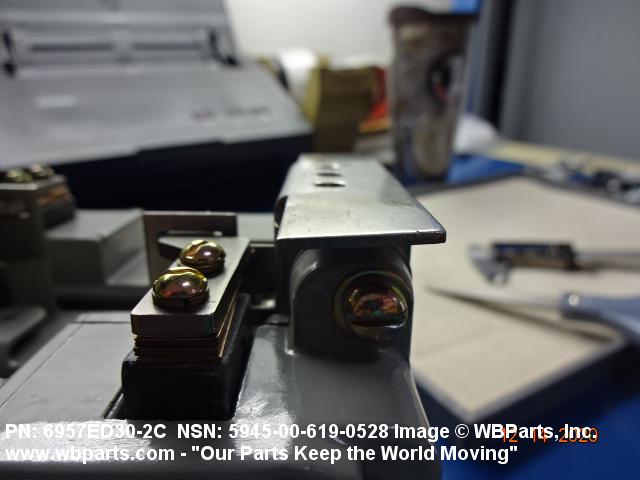

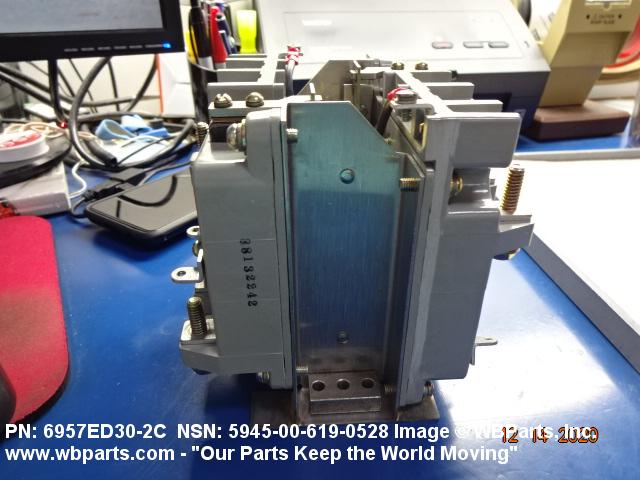

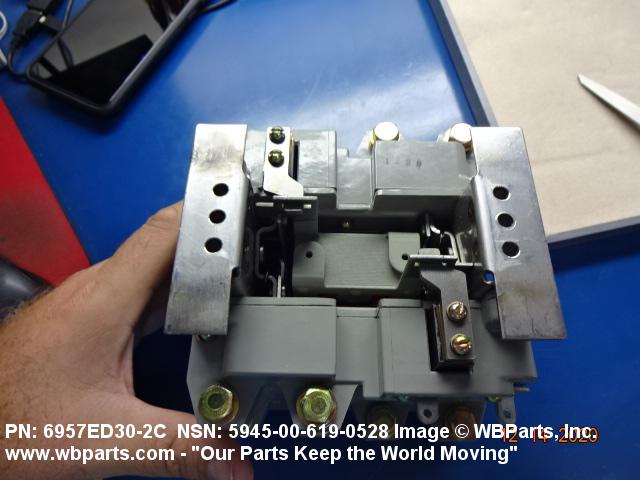

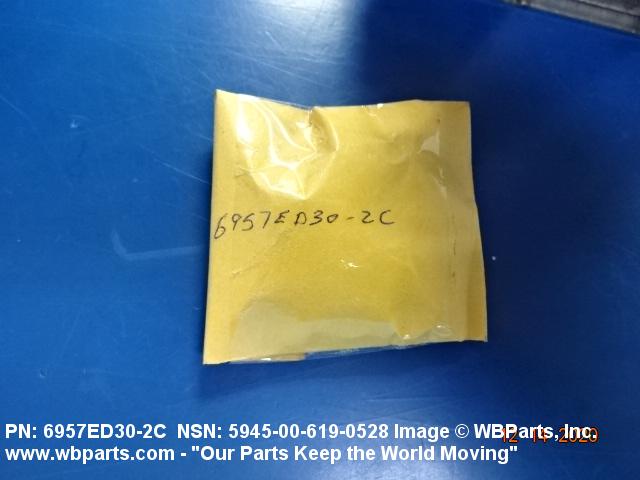

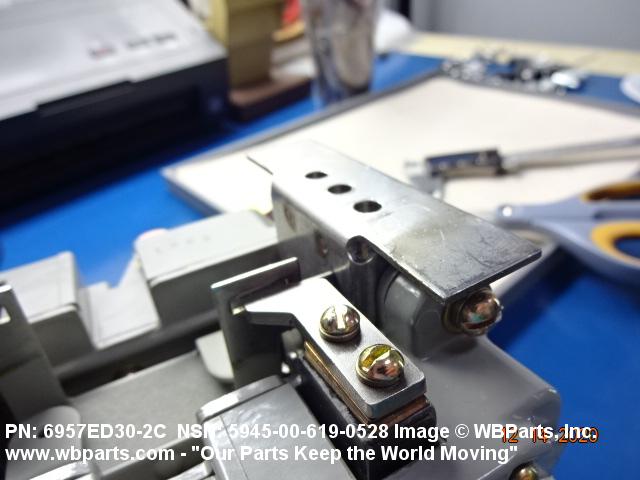

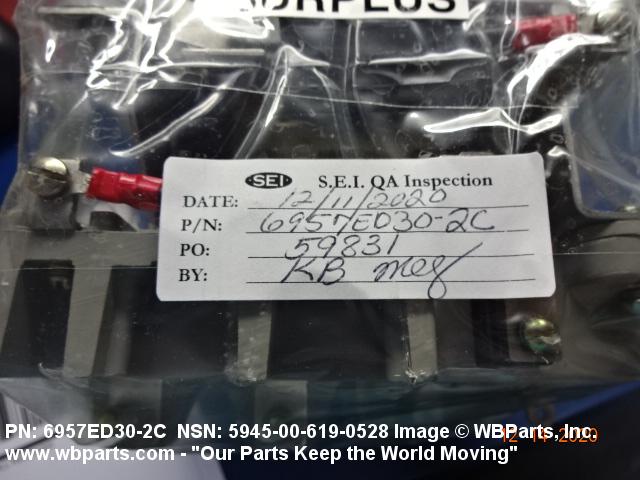

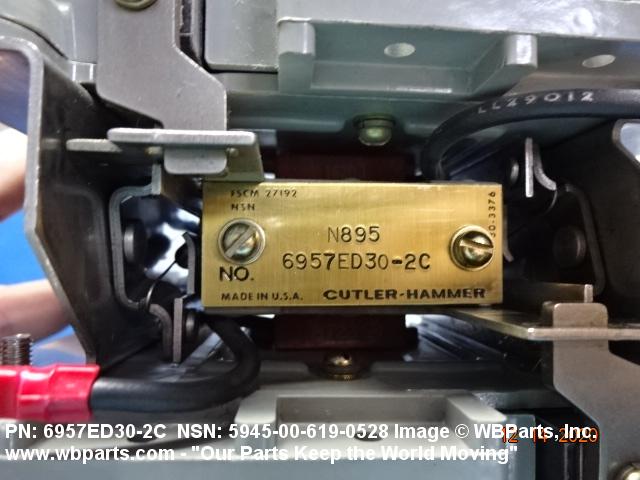

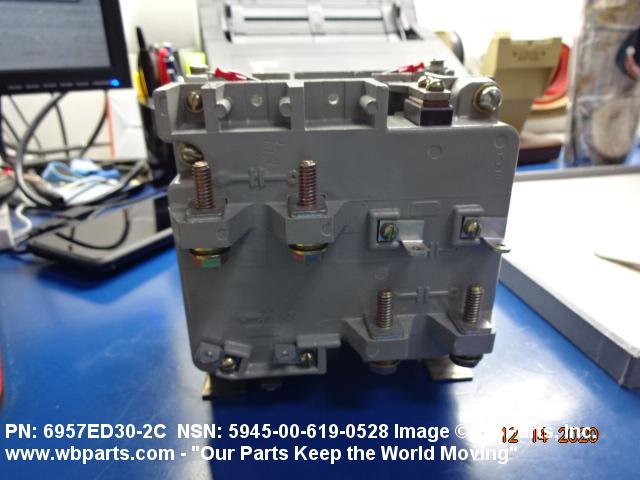

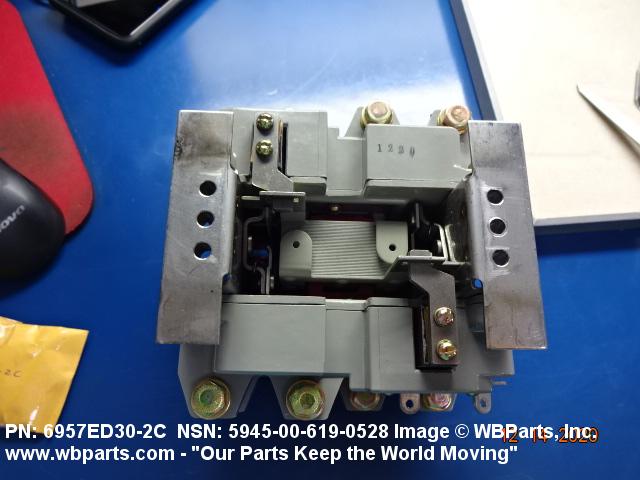

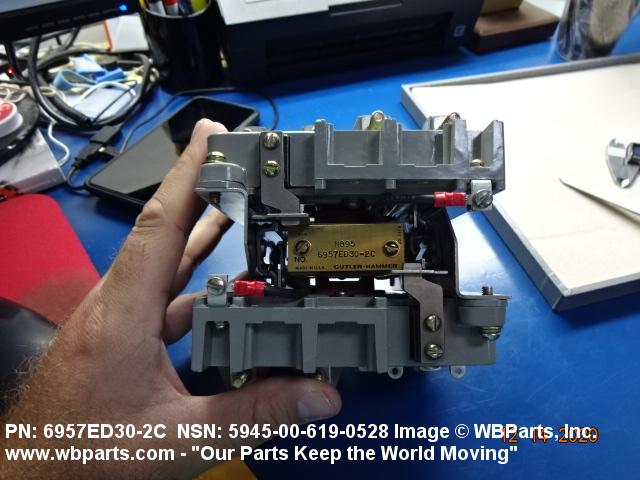

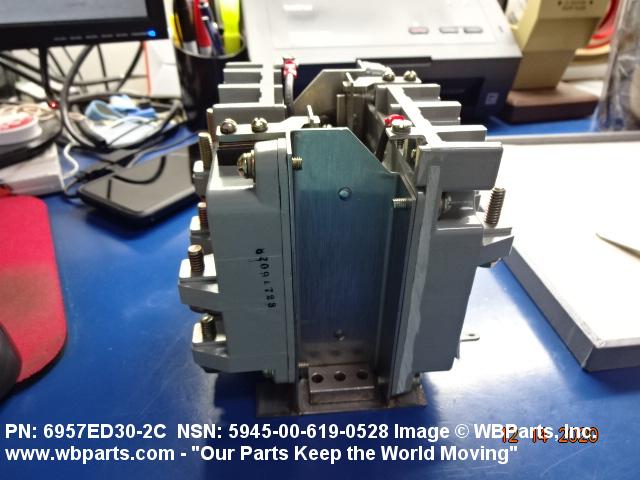

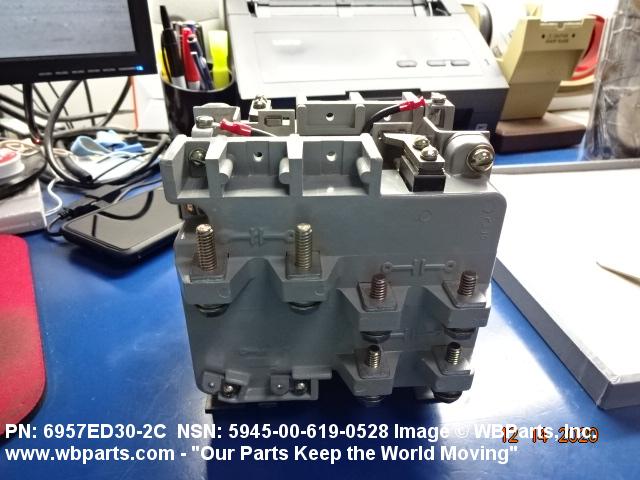

Drawings & Photos | NSN 5945-00-619-0528

Part Number	Request Date	QTY	Origin
6957ED30-2C	2024-05-13	14	DIBBS
6957ED30-2C	2024-05-02	14	DIBBS
6957ED30-2C	2023-11-28	7	DIBBS
6957ED30-2C	2023-05-11	4	DIBBS
6957ED30-2C	2023-03-23	3	DIBBS
6957ED30-2C	2021-04-08	2	DIBBS
6957ED30-2C	2021-03-01	2	DIBBS
6957ED30-2C	2021-02-25	2	DIBBS
6957ED30-2C	2021-02-11	3	DIBBS
5945-00-619-0528	2020-12-09	1	United States
6957ED30-2C	2020-11-30	2	DIBBS
6957ED30-2C	2020-11-19	3	DIBBS
6957ED30-2C	2020-10-20	3	DIBBS
6957ED30-2C	2020-08-20	2	DIBBS
6957ED30-2C	2020-05-21	3	DIBBS
5945-00-619-0528	2015-10-15	6	DIBBS
5945-00-619-0528	2015-04-08	2	DIBBS
5945-00-619-0528	2012-05-08	2	DIBBS
5945-00-619-0528	2011-08-25	2	DIBBS
5945-00-619-0528	2009-10-20	2	DIBBS
5945-00-619-0528	2009-10-19	4	DIBBS
5945-00-619-0528	2009-07-31	2	DIBBS
5945-00-619-0528	2009-01-22	4	DIBBS

Cross Reference | NSN 5945-00-619-0528

Part Number	Cage Code	Manufacturer
177702	21877	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
6957ED30-2C	27192	DRS POWER & CONTROL TECHNOLOGIES, INC.
6957ED302C	88026	EATON CORP CUSTOM DISTRIBUTION AND CONTROL DIV

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5945-00-619-0528

Compare

Related Products | NSN 5945-00-619-0528

5945-00-619-0755, 5945-00-619-0756, 5945-00-619-0765, 5945-00-619-1542, 5945-00-619-3539

Technical Data | NSN 5945-00-619-0528

Characteristic	Specifications
NONPILE-UP MAIN CONTACT ARRANGEMENT	5 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION
NONPILE-UP AUXILIARY CONTACT ARRANGEMENT	1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION AND 2 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS	484.0 AC
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	5.0 AMPERES AC RESISTIVE LOAD
ARC QUENCHING METHOD	AIR
COIL QUANTITY	1
WINDING QUANTITY	1
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP	110.0 VOLTS AC 25 DEG CELSIUS SINGLE WINDING
TERMINAL TYPE AND QUANTITY	18 SCREW ALL FUNCTIONS
DUTY TYPE	CONTINUOUS
OVERALL LENGTH	5.250 INCHES NOMINAL
OVERALL WIDTH	5.000 INCHES NOMINAL
OVERALL HEIGHT	5.500 INCHES NOMINAL
MOUNTING FACILITY TYPE AND QUANTITY	6 UNTHREADED HOLE SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN	RECTANGULAR SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	4.375 INCHES NOMINAL SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH	4.000 INCHES NOMINAL SINGLE MOUNTING FACILITY
UNTHREADED MOUNTING HOLE DIAMETER	0.250 INCHES NOMINAL SINGLE MOUNTING FACILITY
III PURPOSE FOR WHICH DESIGNED	GENERAL
III FRAGILITY FACTOR	MODERATELY RUGGED
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE

Restrictions/Controls & Freight Information | NSN 5945-00-619-0528

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5945-00-619-0528

Navy

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
