Product Details | HYBRID RELAY
5945-01-317-6606 A self-contained device that performs the function of opening or closing an electrical circuit in response to electrical changes in an external circuit. It consists of a combination of semiconductor and passive circuit devices, which in turn control an integral electro-magnetic relay. Excludes relays which employ diodes, rectifiers or other passive devices to achieve contact protection or coil modification. Excludes RELAY, SOLID STATE.
Part Alternates: M83726/28-3002P, M83726/3-121, M83726283002P, M837263121, MIL-PRF-83726/28, MILPRF8372628, MIL-R-83726/28, MIL-R-83726/3, MILR8372628, MILR837263, TD115030S, TD-1150-30S, TDH80503002P, TDH8050-3002P, 5945-01-317-6606, 01-317-6606, 5945013176606, 013176606
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 APR 1990 | 01-317-6606 | 31445 ( RELAY, HYBRID ) |
Drawings & Photos | NSN 5945-01-317-6606
Demand History | NSN 5945-01-317-6606
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-01-317-6606 | 2023-12-29 | 1 | US |
| 5945-01-317-6606 | 2023-04-05 | 4 | United States |
| 5945-01-317-6606 | 2021-02-15 | 11 | DIBBS |
| 5945-01-317-6606 | 2019-08-19 | 14 | DIBBS |
| M83726283002P | 2016-08-24 | 1 | United States |
| M83726283002P | 2015-09-07 | 1 | CN |
| 5945-01-317-6606 | 2014-10-10 | 19 | DIBBS |
| 5945-01-317-6606 | 2012-04-05 | 3 | DIBBS |
| 5945-01-317-6606 | 2012-02-22 | 8 | DIBBS |
| TDH80503002P | 2009-11-05 | 2 | Thailand |
Cross Reference | NSN 5945-01-317-6606
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M83726/28-3002P | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M83726/3-121 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-83726/28 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-83726/28 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-83726/3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| TD-1150-30S | 58657 | LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH |
| TDH8050-3002P | 58657 | LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5945-01-317-6606
Related Products | NSN 5945-01-317-6606
5945-01-317-6725, 5945-01-317-6726, 5945-01-317-6727, 5945-01-317-6728, 5945-01-317-6867
Technical Data | NSN 5945-01-317-6606
| Characteristic | Specifications |
|---|---|
| CONTACT ARRANGEMENT | DOUBLE POLE, DOUBLE THROW |

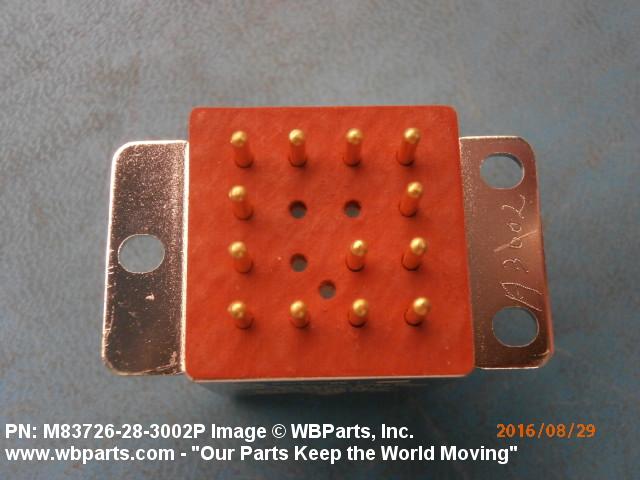

| TERMINAL TYPE AND QUANTITY | 14 PIN |
| FEATURES PROVIDED | HERMETICALLY SEALED |

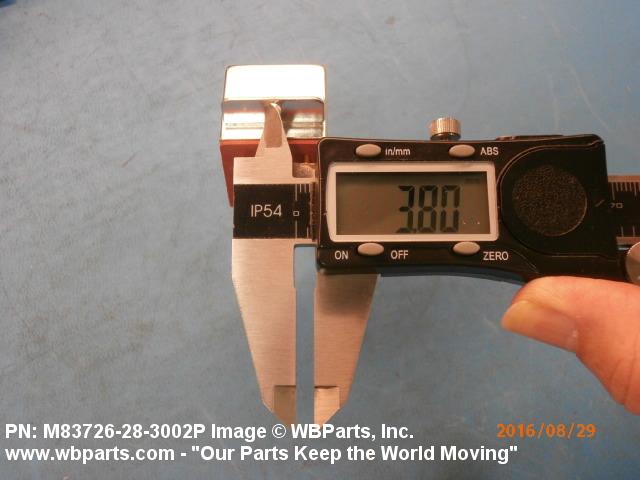

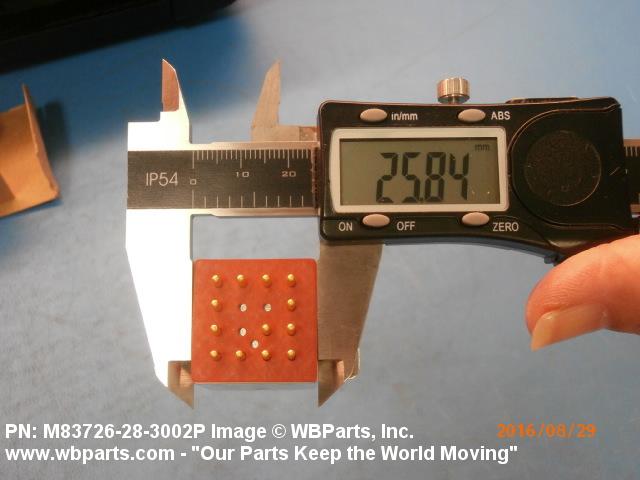

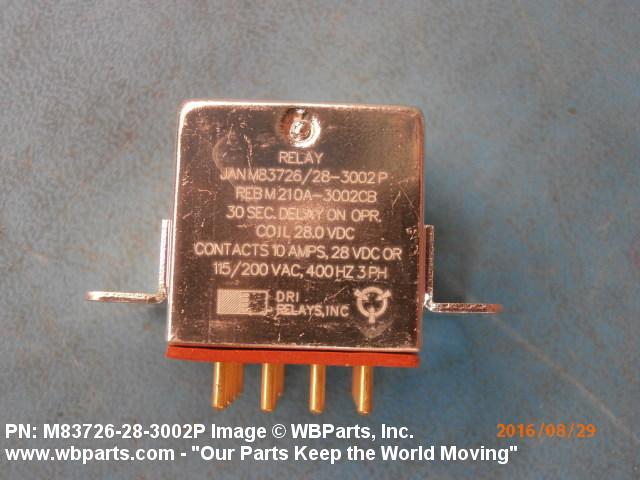

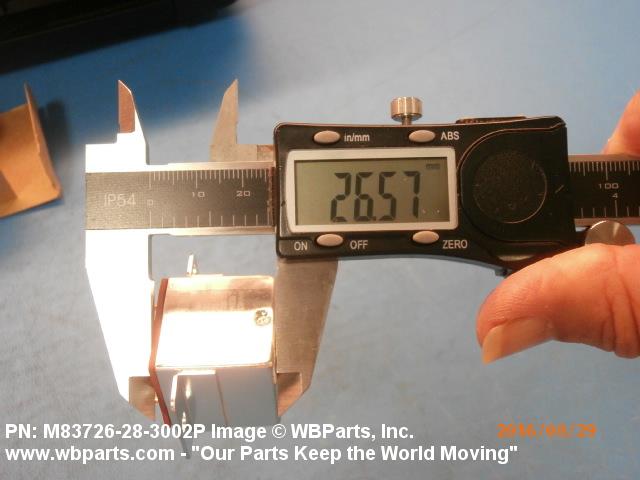

| SPECIAL FEATURES | THREE SLOTTED HOLES SPACED IN ISOSCELES TRIANGLE,SPACED 1.446 IN. PARALLEL TO LG,0.625 IN. PARALLEL TO WDTH;10 AMPS;FIXED TIME DELAY 30 SEC;CONTACTS 200 VAC OR 28 VDC;CONTINOUS DUTY;1.025 IN. MAX W;1.025 IN. MAX LG;1.010 IN. MAX H;1.061 CU. IN. |
| SPECIFICATION/STANDARD DATA | 81349-MIL-R-83726/28 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-83726/28 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M83726/28-3002P |
Restrictions/Controls & Freight Information | NSN 5945-01-317-6606
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
