5950-00-633-7655 - COIL SHIELD, 006337655

Product Details | COIL SHIELD

5950-00-633-7655 An item specifically designed to be placed around a coil for the purpose of shielding against electrical or mechanical interference. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).

Part Alternates: 006337655

Communication, Detection, and Coherent Radiation Equipment | Radar Equipment, Airborne

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
58		00-633-7655	00873 ( SHIELD, COIL )

Drawings & Photos | NSN 5841-00-633-7655

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5950-00-633-7655

Compare

Related Products | NSN 5950-00-633-7655

5841-00-633-7658, 5841-00-633-8053, 5841-00-633-8531, 5841-00-646-5076, 5841-00-647-4017

Technical Data | NSN 5950-00-633-7655

Characteristic	Specifications
MATERIAL	STEEL

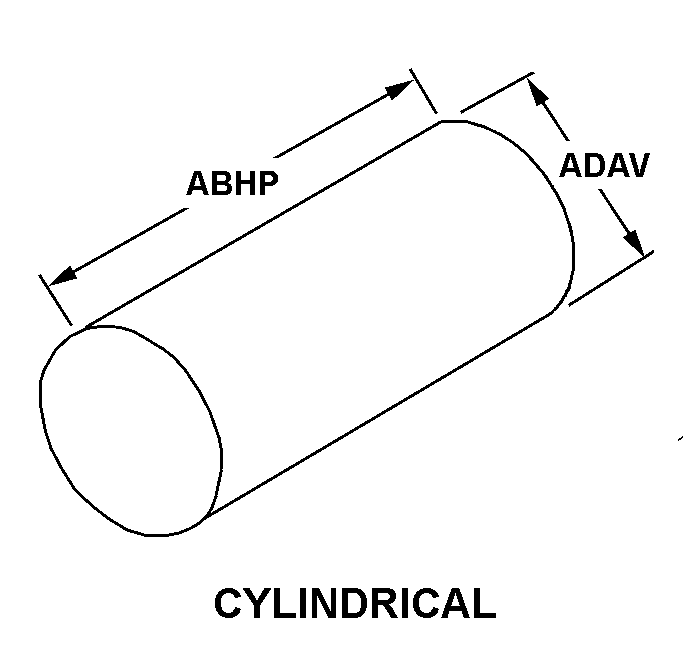

STYLE DESIGNATOR	3C CYLINDRICAL
OVERALL LENGTH	1.812 INCHES NOMINAL
OVERALL DIAMETER	1.125 INCHES NOMINAL
ACCOMMODATED ITEM SECURING DEVICE TYPE	COMPRESSION RING
MANUFACTURERS CODE	56232
DESIGN CONTROL REFERENCE	741052
