5961-00-243-1649 - TRANSISTOR, A32559111, A3255911-1, S16629

Product Details | TRANSISTOR

5961-00-243-1649 An active semiconductor device with three or more electrodes. May or may not include mounting hardware and/or heatsink. Excludes SEMICONDUCTOR DEVICE, DIODE and SEMICONDUCTOR DEVICE, THYRISTOR. For solid state devices which are responsive to visible or infrared radiant energy, see SEMICONDUCTOR DEVICE, PHOTO.

Part Alternates: A32559111, A3255911-1, S16629, SG2097, X11B2169, JANTX2N3700, JANTX2N3700A, MIL-PRF-19500/391, MILPRF19500391, 928288-101, 9473077000, 947307-7000, 2500264-53, 282991, 2846341011, 28463-41011, 2N3700, 3527500901, 352-7500-901, 3528011040, 352-8011-040, 10133054 , 6854W11P019, 90167, 917AS70034, 917AS700-34, 5961-00-243-1649, 00-243-1649, 5961002431649, 002431649, 250026453, 928288101

Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	13 NOV 1970	00-243-1649	20588 ( TRANSISTOR )

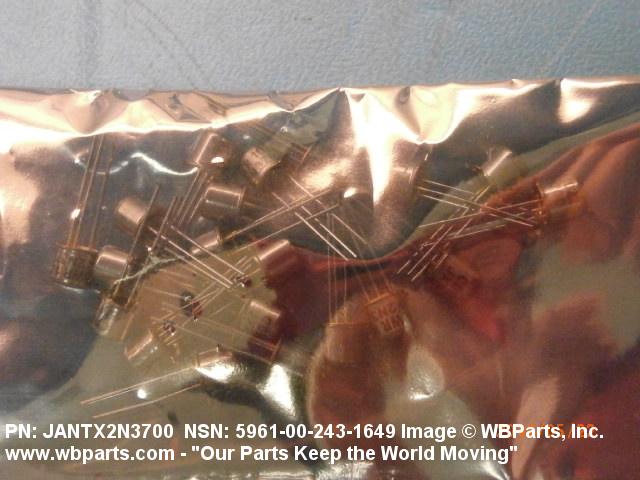

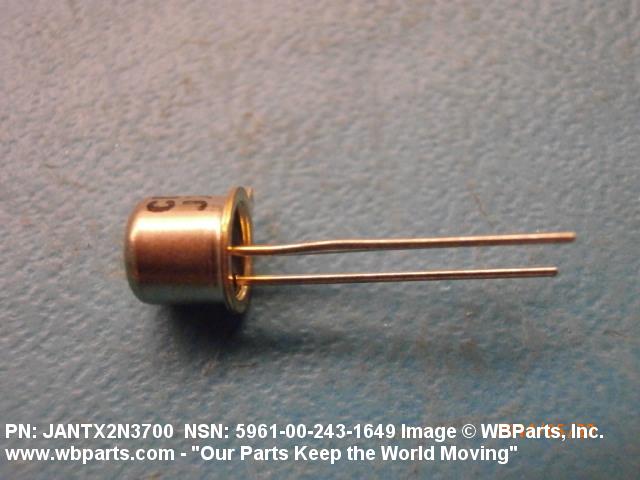

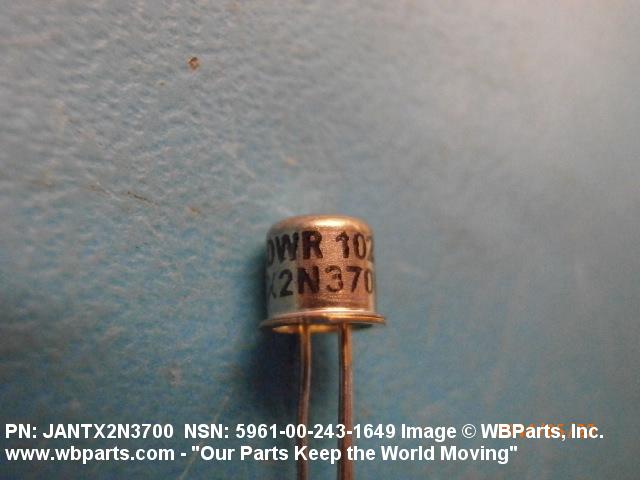

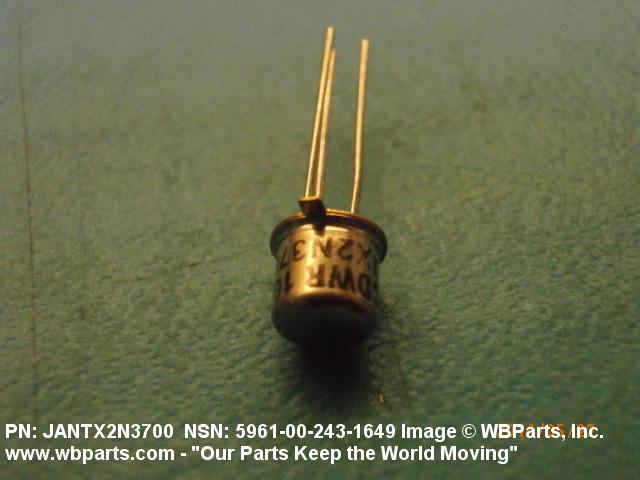

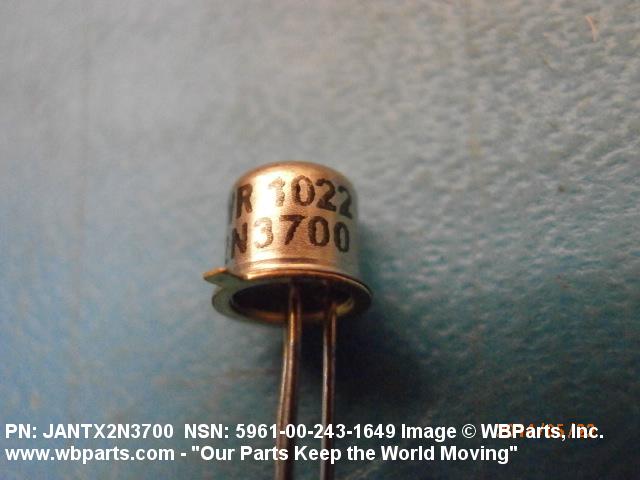

Drawings & Photos | NSN 5961-00-243-1649

Part Number	Request Date	QTY	Origin
5961-00-243-1649	2018-03-04	339	DIBBS
5961-00-243-1649	2017-04-18	1	DIBBS-RFPs
250026453	2014-04-10	20	Australia
2N3700	2012-07-12	1	ID
2N3700	2010-11-29	24
2N3700	2010-08-10	35	United States
5961-00-243-1649	2009-08-29	22	PK
5961-00-243-1649	2008-04-08	4203	DIBBS

Cross Reference | NSN 5961-00-243-1649

Part Number	Cage Code	Manufacturer
2500264-53	07187	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
282991	0KDP7	KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS
28463-41011	K0662	SELEX ES LTD
2N3700	04713	FREESCALE SEMICONDUCTOR, INC.
352-7500-901	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
352-8011-040	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
352-8011-040	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
6854W11P019	97424	AMETEK, INC. DIV AEROSPACE & DEFENSE
90167	73030	HAMILTON SUNDSTRAND CORPORATION
917AS700-34	30003	NAVAL AIR SYSTEMS COMMAND
928288-101	82577	RAYTHEON COMPANY DBA RAYTHEON
947307-7000	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
A3255911-1	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
JANTX2N3700	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
JANTX2N3700A	C7191	ADELCO ELEKTRONIK GMBH
MIL-PRF-19500/391	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
S16629	07263	FAIRCHILD SEMICONDUCTOR CORP
SG2097	01295	TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS
X11B2169	03508	GENERAL ELECTRIC CO SEMI-CONDUCTOR PRODUCTS DEPT

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5961-00-243-1649

Compare

Related Products | NSN 5961-00-243-1649

5961-00-243-1684, 5961-00-243-1698, 5961-00-243-1700, 5961-00-243-1709, 5961-00-243-1897

Technical Data | NSN 5961-00-243-1649

Characteristic	Specifications
SEMICONDUCTOR MATERIAL	SILICON
INTERNAL CONFIGURATION	JUNCTION CONTACT
VOLTAGE RATING IN VOLTS PER CHARACTERISTIC	140.0 MAXIMUM COLLECTOR TO BASE VOLTAGE/STATIC/EMITTER OPEN AND 80.0 MAXIMUM COLLECTOR TO EMITTER VOLTAGE/STATIC/BASE OPEN AND 7.0 MAXIMUM EMITTER TO BASE VOLTAGE, STATIC, COLLECTOR OPEN
CURRENT RATING PER CHARACTERISTIC	1.00 AMPERES MAXIMUM COLLECTOR CURRENT, DC
POWER RATING PER CHARACTERISTIC	1.8 WATTS MAXIMUM TOTAL POWER DISSIPATION
MAXIMUM OPERATING TEMP PER MEASUREMENT POINT	175.0 DEG CELSIUS JUNCTION
INCLOSURE MATERIAL	METAL
ELECTRODE INTERNALLY-ELECTRICALLY CONNECTED TO CASE	COLLECTOR
MOUNTING METHOD	TERMINAL

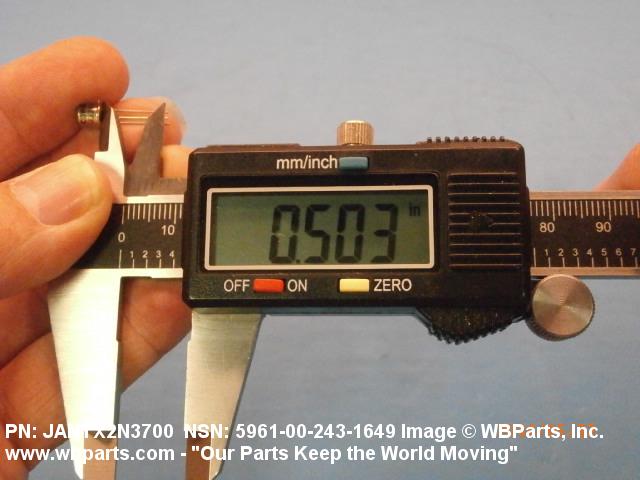

TERMINAL LENGTH	0.500 INCHES MINIMUM
TERMINAL CIRCLE DIAMETER	0.100 INCHES NOMINAL
TERMINAL TYPE AND QUANTITY	3 UNINSULATED WIRE LEAD

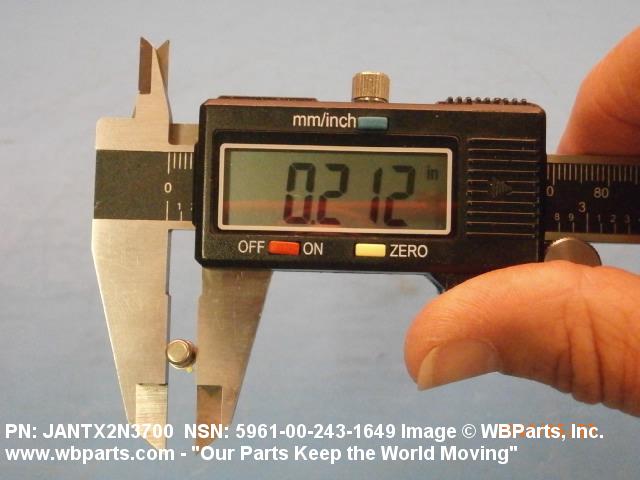

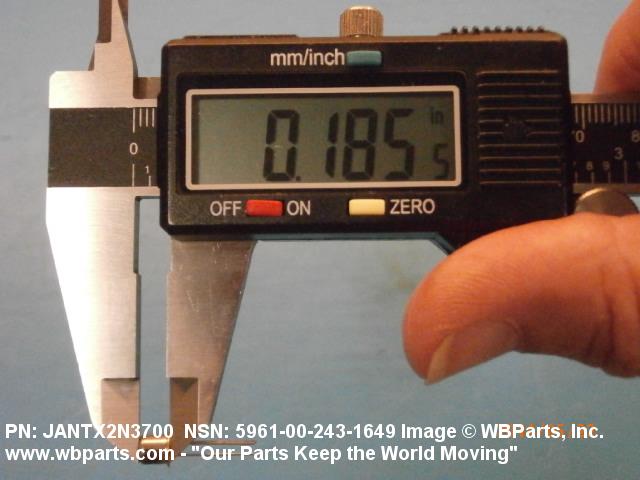

OVERALL LENGTH	0.210 INCHES MAXIMUM
OVERALL DIAMETER	0.230 INCHES MAXIMUM
SPECIAL FEATURES	JUNCTION PATTERN ARRANGEMENT: NPN
TEST DATA DOCUMENT	81349-MIL-PRF-19500 SPECIFICATION
(NON-CORE DATA) SPECIFICATION/STANDARD DATA	81349-MIL-PRF-19500/391 GOVERNMENT SPECIFICATION
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	JANTX2N3700
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-19500/391

Restrictions/Controls & Freight Information | NSN 5961-00-243-1649

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	063025	SEMICONDUCTORS/DEVICES NOI ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5961-00-243-1649

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
