Product Details | LINEAR MICROCIRCUIT
5962-00-449-4334 A microcircuit whose output is a function of the input; that is, the output varies in a predetermined and essentially predictable manner from the input signal.
Part Alternates: NCS1838, NH0002C, SC600311, SC60031-1 , SH13457, C72467Z9000L2, C72467-Z9000-L2, LH0002CH, 710255-010, 71025510, 710255-10, 7534002P008 , 41343-021-6, 697414, 5962-00-449-4334, 00-449-4334, 5962004494334, 413430216, 004494334, 710255010
Electrical and Electronic Equipment Components | Microcircuits, Electronic
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 DEC 1969 | 00-449-4334 | 31778 ( MICROCIRCUIT, LINEAR ) |

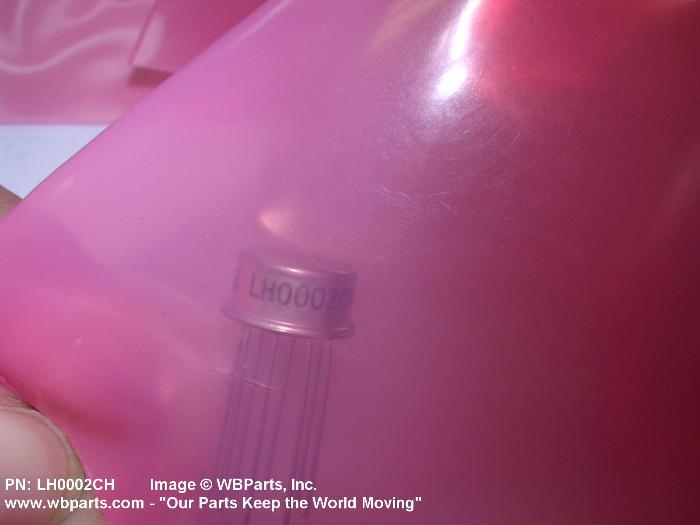

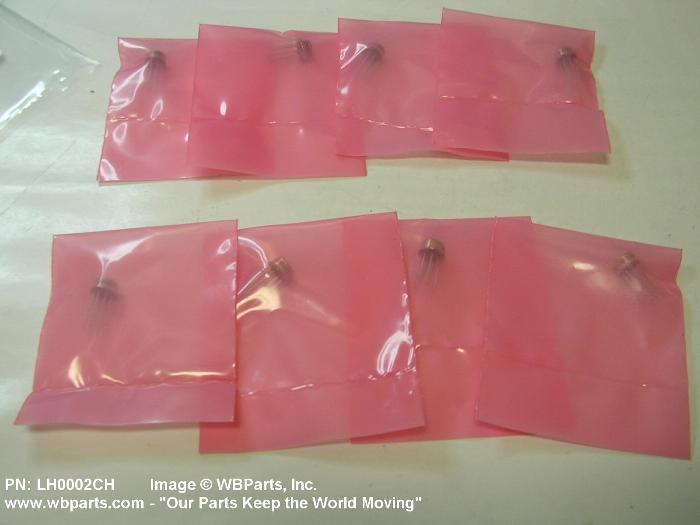

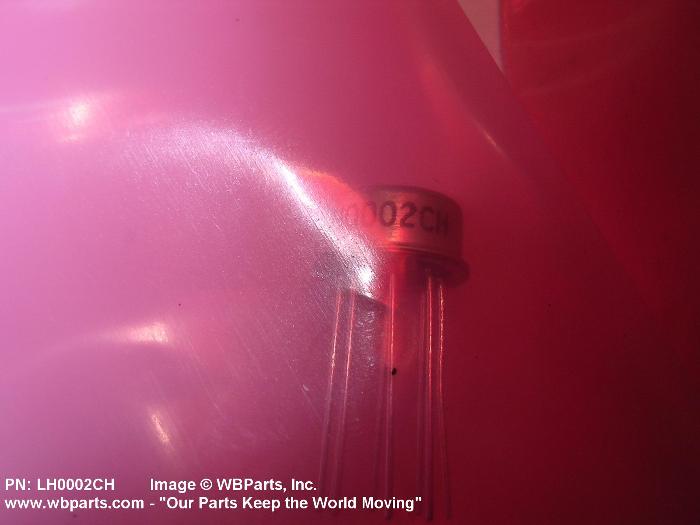

Drawings & Photos | NSN 5962-00-449-4334
Cross Reference | NSN 5962-00-449-4334
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 41343-021-6 | K4556 | BRITISH AEROSPACE DEFENCE SYSTEMS LTD T/A BAE SYSTEMS |
| 41343-021-6 | KC1M9 | BAE SYSTEMS MARITIME SERVICESLIMITED |
| 697414 | 1PQF4 | L-3 COMMUNICATIONS CORPORATION DBA LINK SIMULATION & TRAINING |
| 697414 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 710255-010 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 710255-10 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 7534002P008 | 94117 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| C72467-Z9000-L2 | D1525 | SIEMENS AG AUTOMATISIERUNGSTECHNIKAUT A13 |
| LH0002CH | 12040 | NATIONAL SEMICONDUCTOR CORP |
| LH0002CH | 27014 | NATIONAL SEMICONDUCTOR CORPORATION |
| NCS1838 | 14936 | GENERAL SEMICONDUCTOR INC |
| NH0002C | 27014 | NATIONAL SEMICONDUCTOR CORPORATION |
| SC60031-1 | K3743 | BAE SYSTEMS GLOBAL COMBAT SYSTEMS LIMITED |
| SH13457 | 27014 | NATIONAL SEMICONDUCTOR CORPORATION |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5962-00-449-4334
Related Products | NSN 5962-00-449-4334
5962-00-450-0198, 5962-00-450-0812, 5962-00-450-1347, 5962-00-450-1348, 5962-00-450-1349
Technical Data | NSN 5962-00-449-4334
| Characteristic | Specifications |
|---|---|
| DESIGN FUNCTION AND QUANTITY | 1 AMPLIFIER, HYBRID |
| INPUT CIRCUIT PATTERN | 3 INPUT |
| VOLTAGE RATING AND TYPE PER CHARACTERISTIC | -22.0 VOLTS MINIMUM POWER SOURCE AND 22.0 VOLTS MAXIMUM POWER SOURCE |
| OPERATING TEMP RANGE | 0.0 TO 70.0 DEG CELSIUS |
| TERMINAL TYPE AND QUANTITY | 8 PIN |
| TERMINAL SURFACE TREATMENT | GOLD |
| INCLOSURE CONFIGURATION | CAN |
| INCLOSURE MATERIAL | METAL |
| BODY OUTSIDE DIAMETER | 0.335 INCHES MINIMUM AND 0.370 INCHES MAXIMUM |
| BODY HEIGHT | 0.155 INCHES MINIMUM AND 0.165 INCHES MAXIMUM |
| MAXIMUM POWER DISSIPATION RATING | 600.0 MILLIWATTS |
| STORAGE TEMP RANGE | -65.0 TO 150.0 DEG CELSIUS |
| FEATURES PROVIDED | HYBRID AND HERMETICALLY SEALED AND POSITIVE OUTPUTS AND NEGATIVE OUTPUTS |
| SPECIAL FEATURES | STATIC ELECTRICITY SENSITIVE |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III UNPACKAGED UNIT WEIGHT | 1.2 GRAMS |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | TERMINAL SURFACES GOLD |
Restrictions/Controls & Freight Information | NSN 5962-00-449-4334
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 1 | Analog CPUs, ADP Central Processing Units for Computers Analog. Represents only CPUs that accept as input the electrical equivalent of physical conditions such as flow, temperature, pressure, angular position, or voltage and perform computations by manipulating these electrical equivalents to produce results for further use. NOTE: An analog is a representation of one form of a physical condition existing in another form (e.g., the level of mercury in a tube represents temperature in a thermometer; the angular position of a needle represents speed on a speedometer). Excludes CPUs that have both analog and digital capability. (See code 3) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5962-00-449-4334
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
