Product Details | MICROPHONE ELEMENT
5965-00-843-9957 A complete fabrication of the essential internal operating parts of a microphone.
Part Alternates: M-101/A1C, M101/AIC, M-101/AIC, M101A1C, M101AIC, SP2120, SP-2120, B82577, B-82577, MIL-M-26542/4, MILM265424, MILM27291, MIL-PRF-26542/4, MILPRF265424, M101, 62145019, 62145-019, 82368, 82577, 10239A, 10601, 20952, 5043839, 5043-839, 5719HA, 5719-HA, 5965-00-843-9957, 00-843-9957, 5965008439957, 008439957
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-843-9957 | 00293 ( MICROPHONE ELEMENT ) |

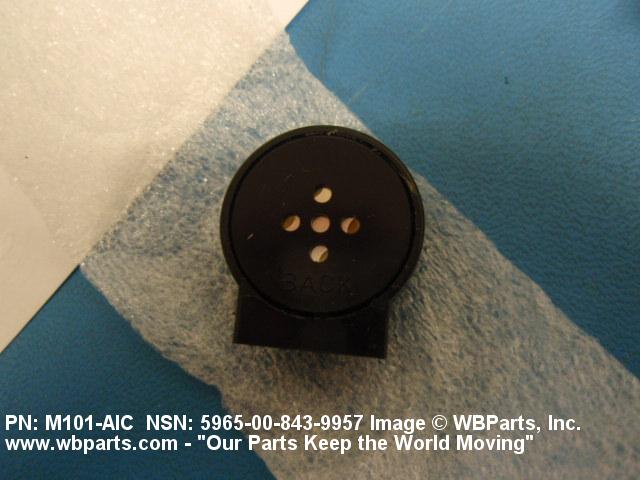

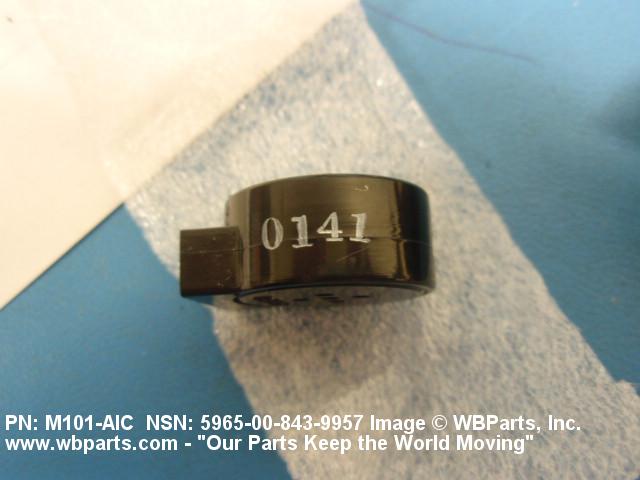

Drawings & Photos | NSN 5965-00-843-9957
Demand History | NSN 5965-00-843-9957
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5965-00-843-9957 | 2024-04-15 | 7197 | DIBBS |
| 5965-00-843-9957 | 2024-02-02 | 261 | United States |
| 5965-00-843-9957 | 2023-09-14 | 5 | US |
| 5965-00-843-9957 | 2023-08-23 | 5 | United States |
| 5965-00-843-9957 | 2023-06-22 | 4358 | DIBBS |
| 5965-00-843-9957 | 2023-06-19 | 193 | DIBBS |
| 5965-00-843-9957 | 2023-06-01 | 783 | DIBBS |
| 5965-00-843-9957 | 2023-05-21 | 783 | DIBBS |
| 5965-00-843-9957 | 2023-04-24 | 427 | DIBBS |
| 5965-00-843-9957 | 2023-04-13 | 427 | DIBBS |
| 5965-00-843-9957 | 2023-03-03 | 517 | DIBBS |
| 5965-00-843-9957 | 2023-02-20 | 517 | DIBBS |
| 5965-00-843-9957 | 2022-12-29 | 1322 | DIBBS |
| 5965-00-843-9957 | 2022-12-18 | 1322 | DIBBS |
| 5965-00-843-9957 | 2022-12-15 | 60 | US |
| 5965-00-843-9957 | 2022-10-27 | 1116 | DIBBS |
| 5965-00-843-9957 | 2022-10-16 | 1116 | DIBBS |
| 5965-00-843-9957 | 2022-09-07 | 10 | CA |
| 5965-00-843-9957 | 2021-12-23 | 1 | United States |
| M101A1C | 2021-12-21 | 1 | US |
| 5965-00-843-9957 | 2021-12-21 | 1 | US |
| M101A1C | 2021-12-21 | 1 | US |
| M101A1C | 2021-12-21 | 1 | US |
| 5965-00-843-9957 | 2021-03-08 | 1 | US |
| 5965-00-843-9957 | 2021-01-22 | 5 | CA |
| 5965-00-843-9957 | 2019-11-07 | 1 | SV |
| 5965-00-843-9957 | 2019-05-30 | 1 | us |
| 5965-00-843-9957 | 2019-05-14 | 8 | US |
| 5965-00-843-9957 | 2019-03-06 | 1 | DIBBS-RFPs |
| 5965-00-843-9957 | 2019-02-27 | 20 | United States |
| 5965-00-843-9957 | 2019-01-14 | 5253 | DIBBS |
| 5965-00-843-9957 | 2019-01-03 | 5253 | DIBBS |
| 5965-00-843-9957 | 2018-11-26 | 1883 | DIBBS |
| 5965-00-843-9957 | 2018-11-15 | 1883 | DIBBS |
| 5965-00-843-9957 | 2018-11-12 | 8 | UAE |
| 5965-00-843-9957 | 2018-10-24 | 5565 | DIBBS |
| 5965-00-843-9957 | 2018-10-18 | 60 | Singapore |
| 5965-00-843-9957 | 2017-08-30 | 1 | Taiwan |
| 5965-00-843-9957 | 2015-12-18 | 400 | South Africa |
| 5965-00-843-9957 | 2015-10-27 | 1 | US |
| 5965-00-843-9957 | 2015-04-02 | 500 | US |
| 5965-00-843-9957 | 2014-08-05 | 1 | DIBBS-RFPs |
| 5965-00-843-9957 | 2013-09-13 | 200 | United States |
| M-101/AIC | 2013-02-05 | 50 | PE |
| M101AIC | 2012-01-26 | 1 | US |
| 5965-00-843-9957 | 2011-03-25 | 15 | US |
| 5965-00-843-9957 | 2010-12-21 | 50 | KR |
| 5965-00-843-9957 | 2010-10-08 | 5 | US |
| 5965-00-843-9957 | 2010-09-28 | 7 | Saudi Arabia |
| 5965-00-843-9957 | 2010-07-21 | 25 | US |
| M101 | 2009-10-27 | 1600 | Italy |
| M101AIC | 2009-08-29 | 1 | US |
| 5965-00-843-9957 | 2009-08-11 | 10 | Denmark |
| 5965-00-843-9957 | 2009-03-16 | 10 | Denmark |
| 5965-00-843-9957 | 2009-03-10 | 10 | Denmark |
| M101AIC | 2008-08-04 | 30 | United States |
| 5965-00-843-9957 | 2008-07-07 | 10 | US |
| 5965-00-843-9957 | 2008-07-04 | 10 | US |
| 5965-00-843-9957 | 2008-07-01 | 10 | Denmark |
| 5965-00-843-9957 | 2008-06-27 | 10 | Australia |
| M101AIC | 2008-03-05 | 30 | FI |
| 5965-00-843-9957 | 2008-03-04 | 10000 | DIBBS |
| 5965-00-843-9957 | 2008-02-28 | 3 | Canada |
| 5965-00-843-9957 | 2008-02-01 | 1793 | DIBBS |
| 5965-00-843-9957 | 2008-01-30 | 8000 | DIBBS |
| 5965-00-843-9957 | 2008-01-21 | 10 | Denmark |
| 5965-00-843-9957 | 2007-10-09 | 8000 | DIBBS |
| 5965-00-843-9957 | 2007-09-27 | 11 | US |
| 5965-00-843-9957 | 2006-06-16 | 12 | US |
| 5965-00-843-9957 | 2006-06-16 | 12 | US |
| 5965-00-843-9957 | 2006-06-16 | 45 | US |
| 5965-00-843-9957 | 2006-06-16 | 10 | Sri Lanka |
| 5965-00-843-9957 | 2006-03-21 | 70 | us |
Cross Reference | NSN 5965-00-843-9957
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10239A | 18068 | ASTROCOM ELECTRONICS, INC. |
| 10601 | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
| 20952 | 18068 | ASTROCOM ELECTRONICS, INC. |
| 5043-839 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 5043-839 | 22861 | JOYCE TELECTRONICS CORP |
| 5719-HA | 22861 | JOYCE TELECTRONICS CORP |
| 62145-019 | 12763 | DYNALEC CORPORATION |
| 82368 | 81134 | BOSCH SECURITY SYSTEMS, INC DBA USE CAGE CODE 25734 FOR |
| 82577 | 81134 | BOSCH SECURITY SYSTEMS, INC DBA USE CAGE CODE 25734 FOR |
| B-82577 | 81134 | BOSCH SECURITY SYSTEMS, INC DBA USE CAGE CODE 25734 FOR |
| M-101/A1C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M-101/AIC | 16575 | SONETRONICS INC DBA SONETRONICS |
| M-101/AIC | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| M-101/AIC | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M101 | 81134 | BOSCH SECURITY SYSTEMS, INC DBA USE CAGE CODE 25734 FOR |
| M101/AIC | 81579 | MASON ELECTRIC COMPANY |
| M101A1C | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
| MIL-M-26542/4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-26542/4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILM27291 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SP-2120 | 71483 | DAVID CLARK COMPANY INCORPORATED |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5965-00-843-9957
Related Products | NSN 5965-00-843-9957
5965-00-844-4207, 5965-00-844-9778, 5965-00-844-9952, 5965-00-845-1848, 5965-00-845-1902
Technical Data | NSN 5965-00-843-9957
| Characteristic | Specifications |
|---|---|
| ELEMENT TYPE | DYNAMIC |
| FREQUENCY RESPONSE RANGE IN HERTZ | 200.0 TO 6000.0 |
| IMPEDANCE RATING | 4.0 OHMS MINIMUM AND 6.0 OHMS MAXIMUM |
| OUTPUT SENSITIVITY RATING IN DECIBELS | -74.0 AND 74.0 |
| OUTPUT SENSITIVITY RATING REFERENCE | 0.0002 DYNES PER SQ CENTIMETER |
| POLARITY CONNECTION | NOT REQUIRED |
| SOUND PICKUP DIRECTIONAL TYPE | UNIDIRECTIONAL |
| NOISE CANCELING FEATURE | INCLUDED |
| SHOCK MOUNT | NOT PROVIDED |
| TERMINAL TYPE | PIN JACK |
| BODY STYLE | 1 IRREGULAR SHAPE |
| WIDTH | 1.047 INCHES NOMINAL |
| LENGTH | 1.163 INCHES MAXIMUM |
| HEIGHT | 0.500 INCHES MAXIMUM |
| SPECIAL FEATURES | THIS IS A NOISE CANCELLING DYNAMIC TYPE ELEMENT WITH A 4 TO 6 OHM IMPEDANCE AND A 200 TO 6000 HZ FREQUENCY RESPONSE; USED WITH SEVERAL HEADSET-MICROPHONES AND HELMETS |
| TEST DATA DOCUMENT | 81349-MIL-M-26542 SPECIFICATION |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III UNPACKAGED UNIT WEIGHT | 16.0 GRAMS |
| III FSC APPLICATION DATA | HEADSETS,HANDSETS,MICROPHONES AND SPEAKERS |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M-101/AIC |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-26542/4 |
Restrictions/Controls & Freight Information | NSN 5965-00-843-9957
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126840 | POWER TRANS BELT CLAMPS,GUIDES ETC |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 590 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
