Product Details | PLATE INSULATOR
5970-00-073-5503 An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD.
Part Alternates: 1086126, 2105942, 5970-00-073-5503, 00-073-5503, 5970000735503, 000735503
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-073-5503 | 18296 ( INSULATOR, PLATE ) |
Drawings & Photos | NSN 5970-00-073-5503
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5970-00-073-5503
5970-00-073-6534, 5970-00-073-6540, 5970-00-073-8951, 5970-00-073-8961, 5970-00-073-8966
Technical Data | NSN 5970-00-073-5503
| Characteristic | Specifications |
|---|---|

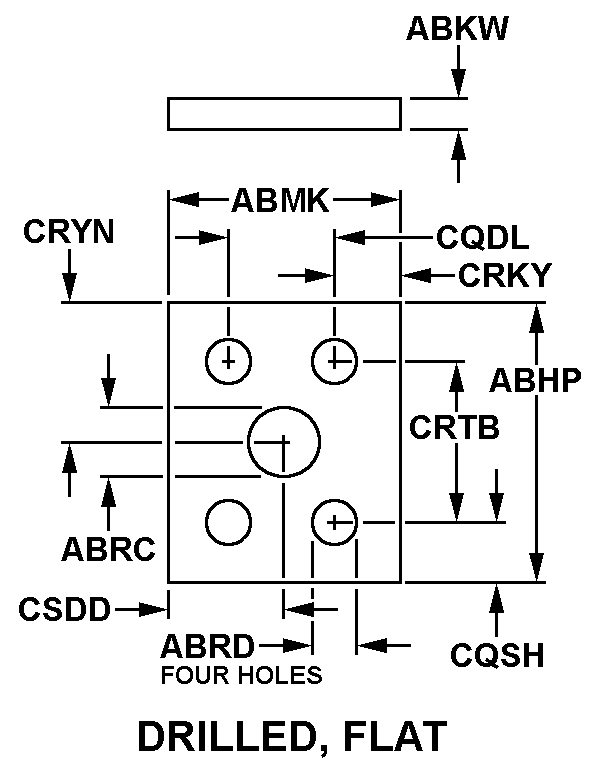

| STYLE DESIGNATOR | K12 DRILLED, FLAT |
| OVERALL LENGTH | 2.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.125 INCHES NOMINAL |
| OVERALL WIDTH | 2.500 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.945 INCHES MINIMUM AND 0.950 INCHES MAXIMUM |
| SECOND HOLE DIAMETER | 0.164 INCHES MINIMUM AND 0.166 INCHES MAXIMUM |
| FOURTH HOLE SPACING | 1.750 INCHES NOMINAL |
| FIRST HOLE SPACING | 0.375 INCHES NOMINAL |
| SECOND HOLE SPACING | 0.375 INCHES NOMINAL |
| THIRD HOLE SPACING | 1.750 INCHES NOMINAL |
| FIFTH HOLE SPACING | 1.250 INCHES NOMINAL |
| SIXTH HOLE SPACING | 1.250 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC, LAMINATED, THERMOSETTING, L-P-00513, TYPE PBE-P OR OVERALL PLASTIC, 63-018-17, TYPE PLE, SPERRY GYROSCOPE CO |
| SPECIAL FEATURES | 250 MICROINCH FINISH OVERALL |
