Product Details | BEAD INSULATOR
5970-00-285-0067 An insulator specifically designed to be used as a spacer in, or in conjunction with, such items as coaxial cables, transmission lines, brush shunts, test leads, high voltage lines and the like. Has an axial hole through which the wire passes and the length of which is considerably more than 25 percent of the largest diameter perpendicular to the hole. The external shapes may be variations of cylindrical and spherical shapes.
Part Alternates: YA15881085P1, YA1588-1085P1, YA15881085P1REV2, YA1588-1085P1REV2, 5970-00-285-0067, 00-285-0067, 5970002850067, 002850067
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-285-0067 | 18299 ( INSULATOR, BEAD ) |
Drawings & Photos | NSN 5970-00-285-0067
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5970-00-285-0067
5970-00-285-0085, 5970-00-285-0086, 5970-00-285-0088, 5970-00-285-0094, 5970-00-285-0103
Technical Data | NSN 5970-00-285-0067
| Characteristic | Specifications |
|---|---|

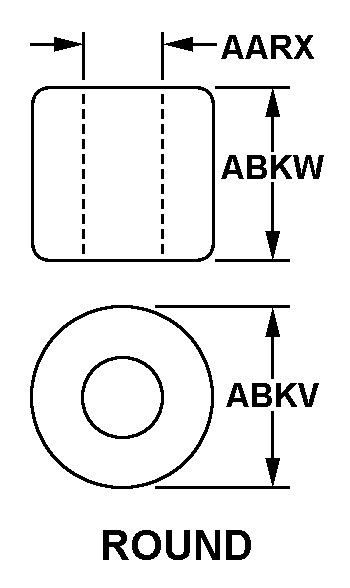

| STYLE DESIGNATOR | A1 ROUND |
| INSIDE DIAMETER | 0.124 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.447 INCHES NOMINAL |
| OVERALL HEIGHT | 0.273 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC, MIL-P-77, TYPE E-2-CANCELED |
Restrictions/Controls & Freight Information | NSN 5970-00-285-0067
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
