Product Details | DISK INSULATOR
5970-01-077-9920 An insulator that is essentially thin, flat, and round in shape, with or without holes. The general shape may vary by the addition of such features as beveled edges, indented surfaces, through-hole key and/or peripheral flats. It may have one or more holes off center; if there are two or more holes, one may be centrally located. Excludes MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT.
Part Alternates: NAS1801316, NAS1801-3-16 , BACS12CB316, BACS12CB3-16 , 10114972 , 484571, 5970-01-077-9920, 01-077-9920, 5970010779920, 010779920
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 JUN 1979 | 01-077-9920 | 18295 ( INSULATOR, DISK ) |
Drawings & Photos | NSN 5970-01-077-9920
Demand History | NSN 5970-01-077-9920
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 484571 | 2019-03-12 | 40 | DIBBS |
| 484571 | 2019-01-10 | 40 | DIBBS |
| 5970-01-077-9920 | 2018-12-25 | 1 | DIBBS |
| NAS1801316 | 2016-03-31 | 25 | United States |
| NAS1801316 | 2015-06-01 | 85 | United States |
| NAS1801-3-16 | 2015-03-19 | 1000 | United States |
| NAS1801316 | 2014-01-02 | 320 | US |
| NAS1801316 | 2013-08-01 | 60 | US |
| NAS1801316 | 2012-10-04 | 100 | TR |
| NAS1801316 | 2011-06-29 | 2 | United States |
Cross Reference | NSN 5970-01-077-9920
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 484571 | 89305 | SIMMONDS PRECISION PRODUCTS, INC. DBA GOODRICH SENSORS AND INTERGRATED |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5970-01-077-9920
Related Products | NSN 5970-01-077-9920
5970-01-077-9921, 5970-01-078-0663, 5970-01-078-0664, 5970-01-078-0936, 5970-01-078-0937
Technical Data | NSN 5970-01-077-9920
| Characteristic | Specifications |
|---|---|

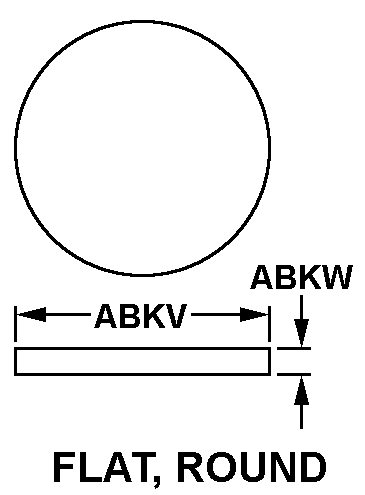

| STYLE DESIGNATOR | E1 FLAT, ROUND |
| OUTSIDE DIAMETER | 1.740 INCHES NOMINAL |
| OVERALL HEIGHT | 0.015 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL PLASTIC, MIL-P-18177 |
| III END ITEM IDENTIFICATION | AIRCRAFT,F-16 |
