Product Details | ELECTRICAL TEXTILE SLEEVING
5970-01-597-9409 A treated or untreated flexible tubing of natural or synthetic fibers such as cotton, silk, rayon, glass, or nylon, specifically designed to inclose a wire or cable but does not have a definite rated electrical characteristic. Includes items in bulk or in definite fabricated lengths. For items having definite rated electrical characteristics, see INSULATION SLEEVING, ELECTRICAL.
Part Alternates: 5046300303S, 5970-01-597-9409, 01-597-9409, 5970015979409, 015979409
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 JUN 2011 | 01-597-9409 | 19932 ( SLEEVING, TEXTILE, ELECTRICAL ) |

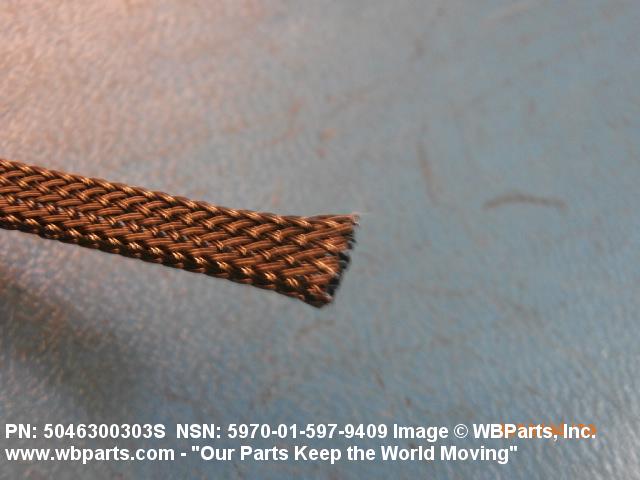

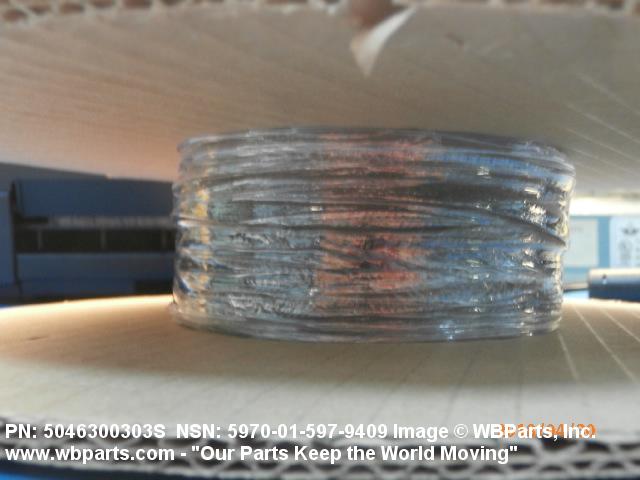

Drawings & Photos | NSN 5970-01-597-9409
Demand History | NSN 5970-01-597-9409
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5970-01-597-9409 | 2018-10-10 | 2494 | DIBBS |
| 5046300303S | 2018-04-23 | 50 | United States |
| 5970-01-597-9409 | 2017-09-06 | 1563 | DIBBS |
| 5970-01-597-9409 | 2017-06-06 | 1563 | DIBBS |
| 5970-01-597-9409 | 2017-03-19 | 1563 | DIBBS |
| 5970-01-597-9409 | 2017-01-23 | 1600 | DIBBS |
| 5970-01-597-9409 | 2017-01-19 | 550 | DIBBS |
| 5970-01-597-9409 | 2016-08-02 | 1751 | DIBBS |
| 5970-01-597-9409 | 2016-05-02 | 500 | DIBBS |
| 5970-01-597-9409 | 2015-08-26 | 185 | DIBBS |
| 5970-01-597-9409 | 2015-08-16 | 465 | DIBBS |
| 5970-01-597-9409 | 2014-11-09 | 185 | DIBBS |
| 5970-01-597-9409 | 2014-05-01 | 185 | DIBBS |
| 5970-01-597-9409 | 2012-11-27 | 37 | DIBBS |
| 5970-01-597-9409 | 2012-11-07 | 37 | DIBBS |
| 5970-01-597-9409 | 2012-08-09 | 37 | DIBBS |
| 5970-01-597-9409 | 2012-07-24 | 37 | DIBBS |
| 5970-01-597-9409 | 2011-10-25 | 244 | DIBBS |
Cross Reference | NSN 5970-01-597-9409
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5046300303S | 81851 | FEDERAL-MOGUL CORPORATION DBA FEDERAL-MOGUL DIV SYSTEMS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5970-01-597-9409
Related Products | NSN 5970-01-597-9409
5970-01-598-7224, 5970-01-598-9501, 5970-01-599-2460, 5970-01-600-6356, 5970-01-601-1303
Technical Data | NSN 5970-01-597-9409
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | NONSHRINKABLE |
| DESIGN FORM | FULL ROUND |
| SPECIAL FEATURES | TUBULAR BRAID OF POLYPROPYLENE SULFIDE (PPS) MONOFILAMENT YARNS; CONTINUOUS LENGTH; STANDARD PACKAGING: 2000 FEET |
| MARKINGS | NONE INDICATED |
| COLOR | BLACK |

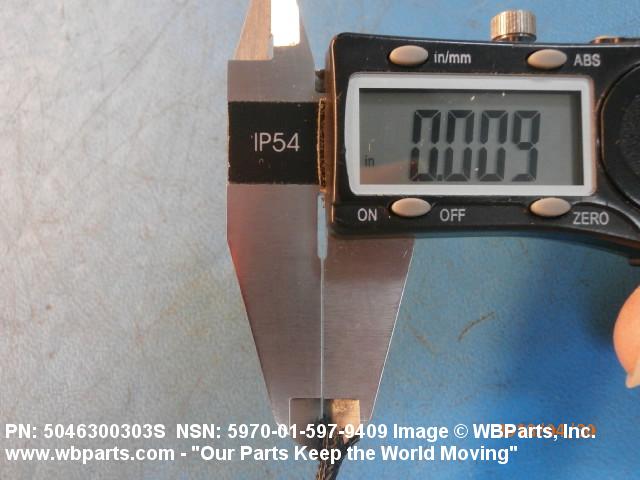

| WALL THICKNESS | 0.008 INCHES NOMINAL |
| INSIDE DIAMETER | 0.125 INCHES NOMINAL |
| END ITEM IDENTIFICATION | TOTAL AIRCRAFT |
| MATERIAL | PLASTIC |
| FLEXIBILITY | FLEXIBLE |
| TEMP RATING | 200.0 DEG CELSIUS |
| OVERALL LENGTH | 2000.000 FEET NOMINAL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | EXPANDO PPS 3-Y (BLACK) |
Restrictions/Controls & Freight Information | NSN 5970-01-597-9409
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5970-01-597-9409
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 FT : Foot |
