Product Details | ELECTRICAL BOX CONNECTOR
5975-00-199-9563 An item designed to mechanically connect in a straight line or an angle electrical conduit, conduit assemblies, wire, wireway, cable, or cable assemblies to a point of termination, such as a junction box, conduit outlet, or the like. The termination end must have an external thread with a boss or shoulder and may be furnished with a locknut or bondnut; or, must have internal thread with which is furnished an externally threaded hub with a wrenching feature; or be of a snap-in type that may be installed from either inside or outside the box and secured with a captive screw. It is not intended to join conduit to conduit. For angle type items having a male thread without a boss or shoulder, see ELBOW, ELECTRICAL CONDUIT. Does not include facilities to mount wiring devices. Excludes CHASE NIPPLE, CONDUIT.
Part Alternates: AA50552, A-A-50552, AA5055200I1AD, AA50552-00I-1-A-D, WF406, W-F-406, 2741, 27-41, 301, 5975-00-199-9563, 00-199-9563, 5975001999563, 001999563
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-199-9563 | 09663 ( BOX CONNECTOR, ELECTRICAL ) |
Drawings & Photos | NSN 5975-00-199-9563
Demand History | NSN 5975-00-199-9563
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AA50552 | 2020-10-07 | 1 | United States |
| 5975-00-199-9563 | 2016-04-05 | 34 | DIBBS |
| 5975-00-199-9563 | 2016-02-09 | 1 | DIBBS |
| 5975-00-199-9563 | 2016-01-28 | 1 | DIBBS |
| 5975-00-199-9563 | 2015-12-15 | 5 | DIBBS |
| 5975-00-199-9563 | 2015-10-27 | 1 | DIBBS |
| 5975-00-199-9563 | 2014-04-01 | 1 | DIBBS |
| WF406 | 2012-09-26 | 4 | US |
| 5975-00-199-9563 | 2012-07-26 | 3 | DIBBS |
| 301 | 2012-07-22 | 1 | United States |
| 5975-00-199-9563 | 2012-02-13 | 1 | DIBBS |
| 5975-00-199-9563 | 2012-01-24 | 1 | DIBBS |
| 301 | 2011-12-01 | 25 | |
| 301 | 2011-10-05 | 4 | US |
| 301 | 2011-05-18 | 1 | AE |
| 2741 | 2007-11-01 | 1 | US |
Cross Reference | NSN 5975-00-199-9563
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 27-41 | 83879 | EGS ELECTRIC CO LLC |
| 301 | 56501 | THOMAS & BETTS CORPORATION |
| A-A-50552 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA50552-00I-1-A-D | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| W-F-406 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5975-00-199-9563
5975-00-200-2002, 5975-00-201-2220, 5975-00-201-6306, 5975-00-201-6916, 5975-00-201-7578
Technical Data | NSN 5975-00-199-9563
| Characteristic | Specifications |
|---|---|

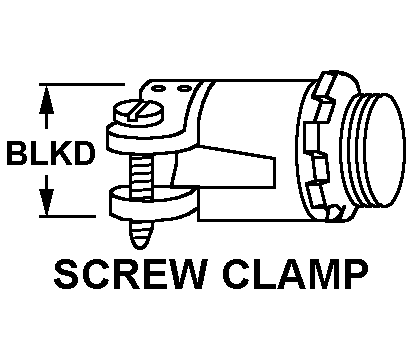

| STYLE DESIGNATOR | A8 SCREW CLAMP |
| ITEM ACCOMMODATED TRADE SIZE | 0.375 INCHES FIRST END |
| MATERIAL | IRON OR STEEL |
| SURFACE TREATMENT | CADMIUM OR ZINC |
| THREAD SERIES DESIGNATOR | NPT SECOND END |
| NOMINAL THREAD SIZE | 0.500 INCHES SECOND END |
| CONDUIT TYPE ACCOMMODATED | FLEXIBLE METALLIC FIRST END |
| END TYPE | CLAMP SQUEEZE FIRST END EXTERNAL THREAD SECOND END |
| FURNISHED ITEMS | LOCKNUT |
| NONDEFINITIVE SPEC/STD DATA | 1 CLASS AND A STYLE AND 1 TYPE |
| III SUPPLEMENTARY FEATURES | END ITEM SHIOP EQUIPMENT,GENERAL PURPOSE REPAIR,TRAILER,SEMI-MOUNTED |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-50552 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AA50552-00I-1-A-D |
Restrictions/Controls & Freight Information | NSN 5975-00-199-9563
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
