Product Details | ELECTRICAL CONDUIT COUPLING
5975-00-661-1003 An item specifically designed and constructed to mechanically connect in a straight line two sections of electrical conduit or like fabrication and of the same size. For three-piece items which may be disassembled without disturbing the rest of the conduit line, see UNION, ELECTRICAL CONDUIT. See also ADAPTER, ELECTRICAL CONDUIT; POTHEAD; and SEALING FITTING, ELECTRICAL CONDUIT.
Part Alternates: AA50553, A-A-50553, AA5055312K05S, AA50553-1-2-K-05-S, FEDSTD156, WF408, 1014S, 1014-S, 20804, 2926, 5520, 575C379G1, 95T150, 5975-00-661-1003, 00-661-1003, 5975006611003, 006611003
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-661-1003 | 09664 ( COUPLING, ELECTRICAL CONDUIT ) |

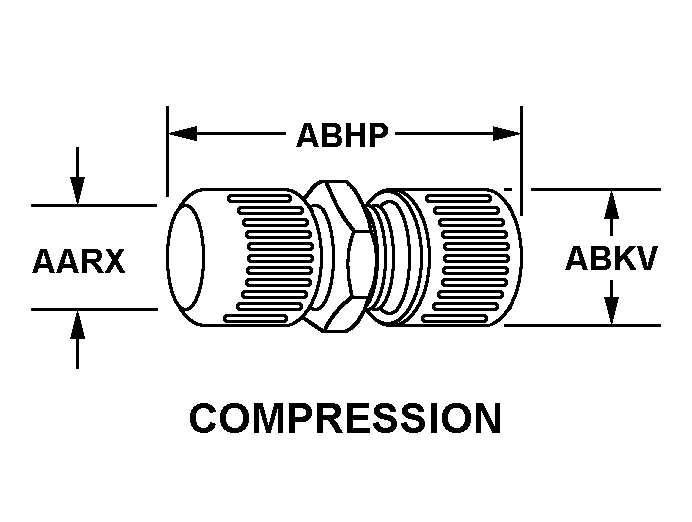

Drawings & Photos | NSN 5975-00-661-1003
Demand History | NSN 5975-00-661-1003
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AA50553 | 2019-09-18 | 10 | US |
| FEDSTD156 | 2018-09-17 | 2 | US |
| 5975-00-661-1003 | 2015-05-13 | 437 | DIBBS |
| 5975-00-661-1003 | 2012-09-09 | 217 | DIBBS |
| 5520 | 2011-09-14 | 1 | |
| 5975-00-661-1003 | 2011-06-06 | 175 | DIBBS |
| 5975-00-661-1003 | 2011-04-15 | 30 | US |
| AA5055312K05S | 2010-09-30 | 35 | US |
| 5975-00-661-1003 | 2010-09-29 | 35 | DIBBS |
| AA50553 | 2010-07-15 | 1 | US |
Cross Reference | NSN 5975-00-661-1003
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1014-S | 33342 | ATLAS TECHNOLOGIES INC |
| 20804 | 33342 | ATLAS TECHNOLOGIES INC |
| 2926 | 28488 | RACO A DIVISION OF HUBBELL INCORPORATEDDELAWARE |
| 5520 | 22421 | THOMAS AND BETTS LTD |
| 5520 | 56501 | THOMAS & BETTS CORPORATION |
| 95T150 | 03743 | EGS ELECTRICAL GROUP APPLETON DIV |
| A-A-50553 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA50553-1-2-K-05-S | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| FEDSTD156 | 06542 | FEDERAL STANDARDS PROMULGATED BY GENERAL SERVICES |
| WF408 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5975-00-661-1003
5975-00-661-1004, 5975-00-661-1005, 5975-00-661-1006, 5975-00-661-1007, 5975-00-661-1832
Technical Data | NSN 5975-00-661-1003
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A32 COMPRESSION |
| OVERALL LENGTH | 3.062 INCHES NOMINAL |
| ITEM ACCOMMODATED TRADE SIZE | 1.500 INCHES FIRST END 1.500 INCHES SECOND END |
| MATERIAL | IRON OR STEEL |
| SURFACE TREATMENT | CADMIUM OR ZINC |
| CONDUIT TYPE ACCOMMODATED | RIGID METALLIC THINWALL FIRST END RIGID METALLIC THINWALL SECOND END |
| END TYPE | COMPRESSION RING AND NUT FIRST END COMPRESSION RING AND NUT SECOND END |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | RAINTIGHT-NEMA TYPE 3R |
| NONDEFINITIVE SPEC/STD DATA | 2 CLASS AND K KIND AND I TYPE |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-50553 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AA50553-1-2-K-05-S |
Restrictions/Controls & Freight Information | NSN 5975-00-661-1003
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
