Product Details | DUST AND MOISTURE SEAL BOOT
5975-00-752-2843 A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes BELLOWS, PROTECTION; GROMMET, NONMETALLIC; and CABLE NIPPLE, ELECTRICAL. See also CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and SHIELD, ELECTRICAL CONNECTOR.20253400020Hardware, Commercial59300008Switches
Part Alternates: 2518041, 5975-00-752-2843, 00-752-2843, 5975007522843, 007522843
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-752-2843 | 19302 ( BOOT, DUST AND MOISTURE SEAL ) |
Drawings & Photos | NSN 5975-00-752-2843
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5975-00-752-2843
5975-00-752-2936, 5975-00-752-2937, 5975-00-752-2938, 5975-00-752-2945, 5975-00-752-4918
Technical Data | NSN 5975-00-752-2843
| Characteristic | Specifications |
|---|---|

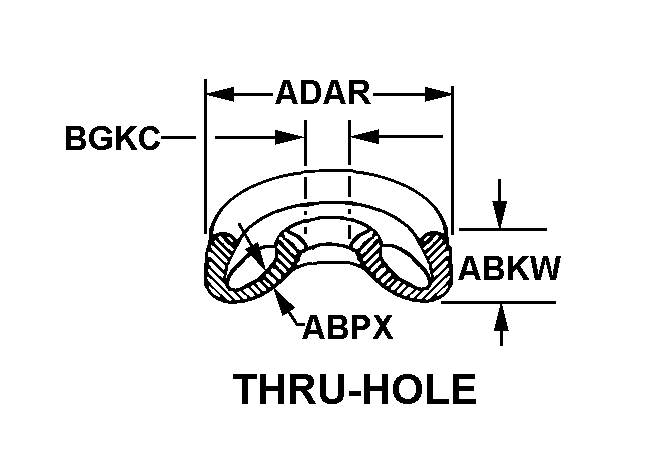

| STYLE DESIGNATOR | A5 THRU-HOLE |
| OVERALL HEIGHT | 0.172 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.031 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| OPENING INSIDE DIAMETER | 0.219 INCHES NOMINAL |
| MATERIAL | RUBBER BODY |
| MANUFACTURERS CODE | 07187 |
| DESIGN CONTROL REFERENCE | 2518041 |
Restrictions/Controls & Freight Information | NSN 5975-00-752-2843
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194090 | WASHERS/SEALS |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 846 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-752-2843
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
