Product Details | CABLE MARKER SLEEVE
5975-01-051-5609 A cylindrical item into which a wire or cable is inserted. It is inscribed for identification, to indicate connections or routing of electrical cables and the like. For unmarked items made of insulation material, see INSULATION SLEEVING, ELECTRICAL. For items secured by crimping, slot and tongue, or other similar methods of fastening, see BAND, MARKER.
Part Alternates: ST650713A2A18, 210, 5975-01-051-5609, 01-051-5609, 5975010515609, 010515609
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 DEC 1977 | 01-051-5609 | 16785 ( SLEEVE, MARKER, CABLE ) |
Drawings & Photos | NSN 5975-01-051-5609
Demand History | NSN 5975-01-051-5609
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5975-01-051-5609
5975-01-051-5893, 5975-01-051-6073, 5975-01-051-6403, 5975-01-051-6407, 5975-01-051-6458
Technical Data | NSN 5975-01-051-5609
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-I-631,TYPE F MIL SPEC SINGLE MATERIAL RESPONSE |
| INSCRIPTION | A2A18 |

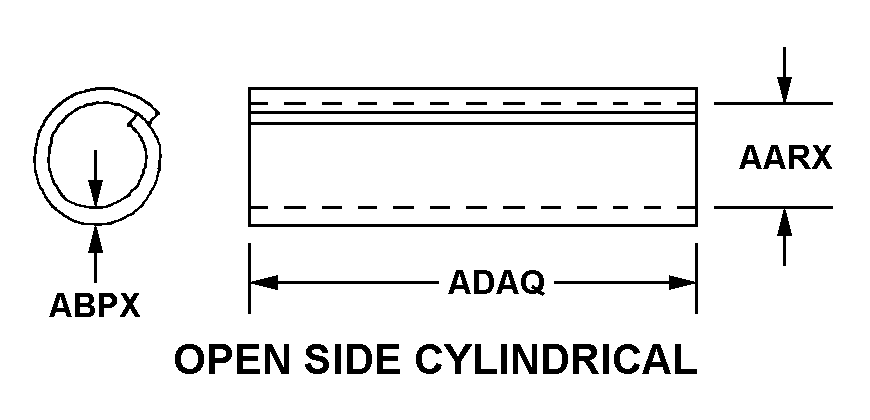

| STYLE DESIGNATOR | A4 OPEN SIDE CYLINDRICAL |
| INSIDE DIAMETER | 0.210 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.015 INCHES NOMINAL |
| BODY LENGTH | 0.750 INCHES NOMINAL |
| FEATURES PROVIDED | LEGEND |
| ENVIRONMENTAL PROTECTION | HEAT AND MILDEW RESISTANT |
| SPECIAL FEATURES | TETRAHYDROFURAN WITH 10 PCT POLYVINYL CHLORIDE BY WEIGHT IN SOLUTION _DURAMARK LIQUID PLASTIC K[ TO BE APPLIED TO SEAM AT ASSEMBLY |
Restrictions/Controls & Freight Information | NSN 5975-01-051-5609
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
