Product Details | ELECTRICAL EQUIPMENT MOUNTING BASE
5975-01-121-3455 A tray or racklike item designed to provide a supporting surface to which electrical/electronic equipment may be secured when installed in aircraft, vehicles, or other types of mobile equipment. It may be equipped with shock or vibration isolation devices and/or wires, cables, terminal boards, connectors, etc. Excludes BASE, ELECTRICAL EQUIPMENT RACK and MOUNT, RESILIENT. See also RACK, ELECTRICAL EQUIPMENT.
Part Alternates: C31A93063, C31A9306-3, 3234501, 323450-1, 5975-01-121-3455, 01-121-3455, 5975011213455, 011213455
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 NOV 1981 | 01-121-3455 | 29923 ( MOUNTING BASE, ELECTRICAL EQUIPMENT ) |
Drawings & Photos | NSN 5975-01-121-3455
Cross Reference | NSN 5975-01-121-3455
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 323450-1 | 15280 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV ES DEFENSIVE SYSTEMS DIVISION |
| 323450-1 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| C31A9306-3 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5975-01-121-3455
5975-01-121-4324, 5975-01-121-4377, 5975-01-121-4378, 5975-01-121-4379, 5975-01-121-4380
Technical Data | NSN 5975-01-121-3455
| Characteristic | Specifications |
|---|---|

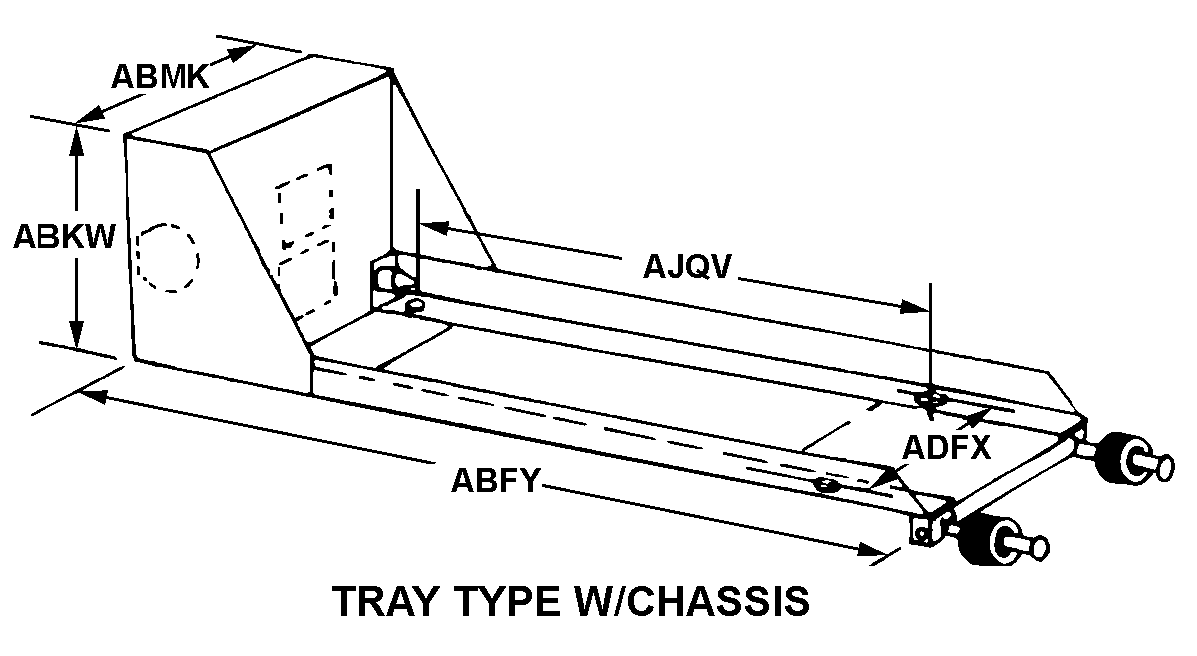

| STYLE DESIGNATOR | E7 TRAY TYPE W/CHASSIS |
| OVERALL DEPTH | 23.570 INCHES NOMINAL |
| OVERALL HEIGHT | 6.620 INCHES NOMINAL |
| OVERALL WIDTH | 15.030 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 12.515 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG DEPTH | 20.750 INCHES NOMINAL |
| MATERIAL | ALUMINUM |
| MAXIMUM WEIGHT CAPACITY | 9.8 POUNDS |
| III FSC APPLICATION DATA | ELECTRONIC COUNTERMEASURE AN/ALR-62(V) |
| MANUFACTURERS CODE | 15280 |
| MFR SOURCE CONTROLLING REFERENCE | 323450-1 |
Restrictions/Controls & Freight Information | NSN 5975-01-121-3455
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093600 | BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
