Product Details | ELECTRICAL EQUIPMENT RACK
5975-01-586-4585 An open or inclosed frame structure designed to accommodate (but does not include) electrical/electronic equipment mounted on standard width panels so that the equipment may be operated after installation without being removed. It must have panel mounting rails that provide a uniform pattern of mounting holes that will accommodate various combinations of standard width panels. It may include wires, cables, terminal boards, connectors, and the like, required for equipment operation. See also MOUNTING BASE, ELECTRICAL EQUIPMENT; CABINET, ELECTRICAL EQUIPMENT; and CASE (2) (as modified). Excludes MAIN DISTRIBUTING FRAME, TELEPHONE and INTERMEDIATE DISTRIBUTING FRAME, TELEPHONE.
Part Alternates: DTD175D02, DTD-175D-02, 5975-01-586-4585, 01-586-4585, 5975015864585, 015864585
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 JUN 2010 | 01-586-4585 | 06353 ( RACK, ELECTRICAL EQUIPMENT ) |

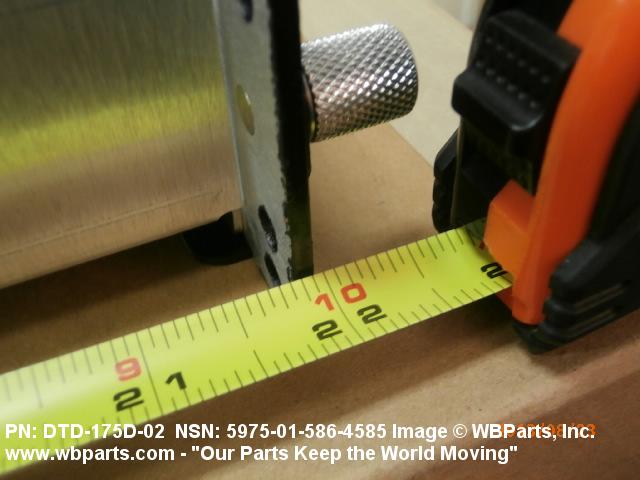

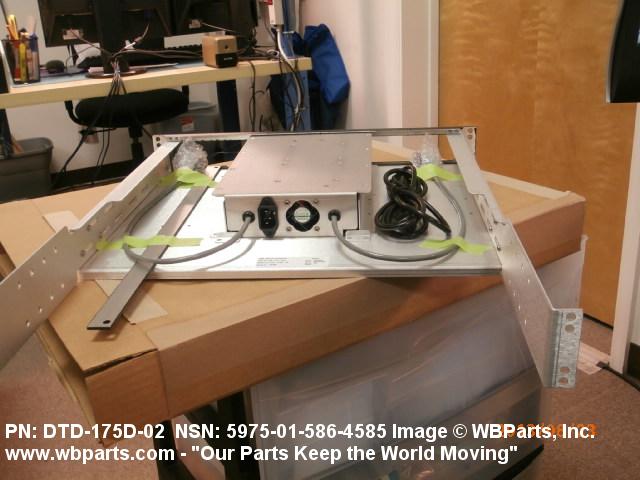

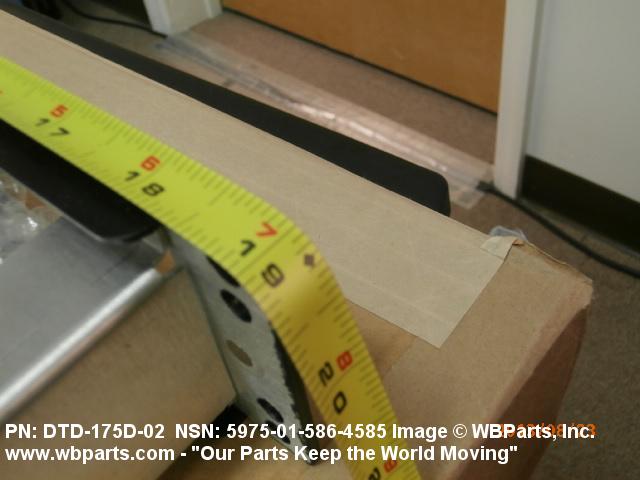

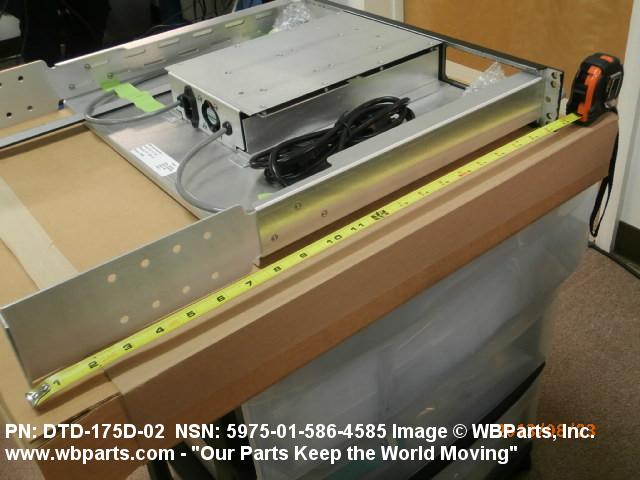

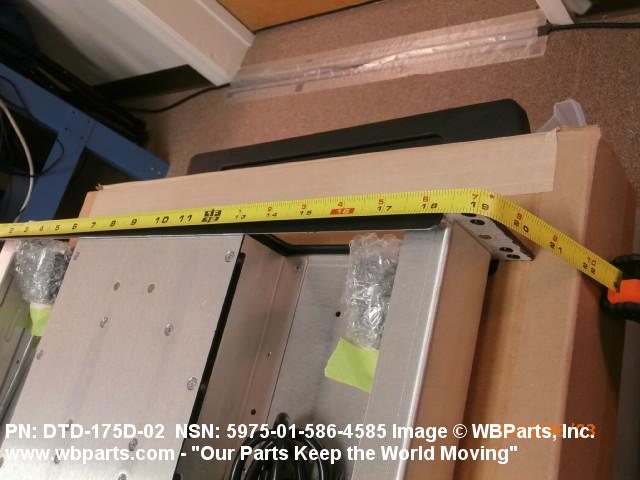

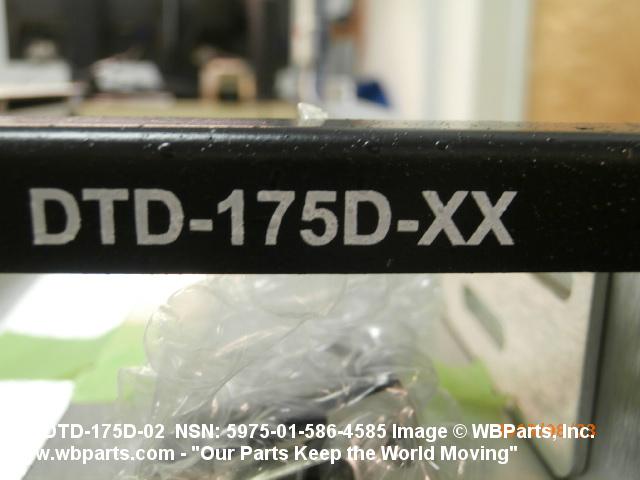

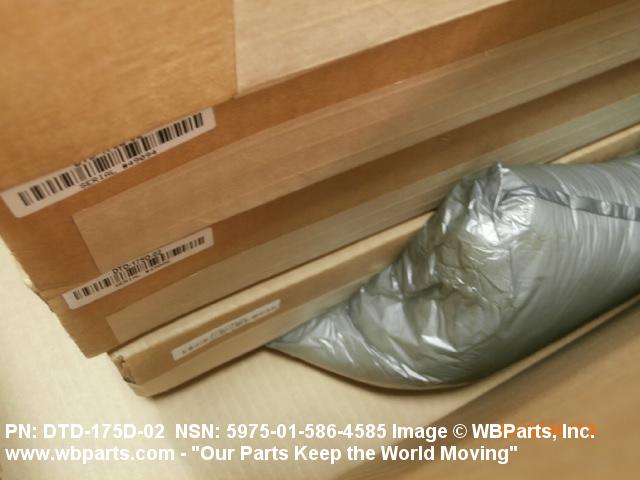

Drawings & Photos | NSN 5975-01-586-4585
Demand History | NSN 5975-01-586-4585
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-01-586-4585 | 2023-12-05 | 4 | RO |
| 5975-01-586-4585 | 2022-11-03 | 11 | US |
| 5975-01-586-4585 | 2020-05-08 | 1 | US |
| 5975-01-586-4585 | 2018-11-07 | 10 | US |
| 5975-01-586-4585 | 2018-05-17 | 5 | US |
| DTD175D02 | 2018-05-09 | 16 | us |
| DTD175D02 | 2017-11-15 | 2 | US |
| 5975-01-586-4585 | 2015-07-23 | 4 | United States |
| DTD175D02 | 2015-07-23 | 2 | United States |
| 5975-01-586-4585 | 2015-07-22 | 2 | United States |
| 5975-01-586-4585 | 2014-05-20 | 2 | US |
| 5975-01-586-4585 | 2013-10-31 | 25 | US |
| DTD175D02 | 2013-09-18 | 24 | United States |
| 5975-01-586-4585 | 2013-08-16 | 1 | US |
| DTD175D02 | 2013-08-13 | 28 | United States |
| 5975-01-586-4585 | 2013-08-12 | 1 | US |
| 5975-01-586-4585 | 2013-06-07 | 1 | US |
| 5975-01-586-4585 | 2013-05-15 | 12 | US |
| 5975-01-586-4585 | 2013-05-14 | 12 | US |
| 5975-01-586-4585 | 2012-09-19 | 5 | US |
Cross Reference | NSN 5975-01-586-4585
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DTD-175D-02 | 3X2T6 | CIS SECURE COMPUTING, INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5975-01-586-4585
Related Products | NSN 5975-01-586-4585
5975-01-586-5851, 5975-01-586-8183, 5975-01-586-8714, 5975-01-587-7036, 5975-01-587-9395
Technical Data | NSN 5975-01-586-4585
| Characteristic | Specifications |
|---|---|
| PART NAME ASSIGNED BY CONTROLLING AGENCY | DUAL KG-175D (TACLANE-MICRO),DTD-175D-XX,RUGGED RACK MOUNT ENCLOSURE |
| OVERALL HEIGHT | 2.625 INCHES NOMINAL |
| OVERALL DEPTH | 22.000 INCHES MINIMUM AND 32.000 INCHES MAXIMUM |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| SPECIAL FEATURES | SUPPORTS KG-175 (2 EACH) WITH REDUCDANT POWER SUPPLY;WEIGHT:7.000 POUNDS;OPERATING TEMPERATURE RATING:MINUS 30.0C TO 60.0C;POWER:90-264VAC,47-63,400HZ STANDARD;12,28,48VDC OPTIONAL |
| OVERALL WIDTH | 19.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5975-01-586-4585
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5975-01-586-4585
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | G | Communications and Electronics Equipment, Electronics Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | 9 | Signal Intelligence |
| Weapons Systems/End Item or Homogeneous Group | 9F | ARL - C/I/M |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B16 | US Army Communications-Electronics Command and Fort Monmouth Fort Monmouth, NJ 07703-5016 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | D | When repair is beyond lower level maintenance capability, evacuate the item to depot. Disposal is not authorized below wholesale level. |
| Acquisition Advice Codes | B | INVENTORY CONTROL POINT (ICP)-REGULATED (Service/Agency use only.) # Issue, transfer, or shipment is controlled by the ICP. 1. The use or stockage of the item requires release authority based on prior or concurrent justification. 2. Requisitions will be submitted in accordance with Agency/Service requisitioning procedure. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 2 | Marine Corps Appropriation Stores Account Secondary Items. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | 4 | Communications/Electronics Materiel5445, 58, 59, 60, 61, 6625, 6660, 6665 |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | MPB | Commanding General Marine Corps Logistics Command 566-2, Bldg. 3700 Albany, GA 31704-5000 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | L | Reparable item. Repair, condemnation, and disposal not authorized below depot/specialized repair activity level. |
| Acquisition Advice Codes | B | INVENTORY CONTROL POINT (ICP)-REGULATED (Service/Agency use only.) # Issue, transfer, or shipment is controlled by the ICP. 1. The use or stockage of the item requires release authority based on prior or concurrent justification. 2. Requisitions will be submitted in accordance with Agency/Service requisitioning procedure. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
