Product Details | LIGHT EMITTING DIODE
5980-01-241-0631 A two electrode, solid state, optoelectronic device that emits visible or infrared radiant energy when electrically energized. May or may not include mounting hardware and/or heat sink. Excludes LAMP, CARTRIDGE; and LIGHT, INDICATOR. For solid state devices which are responsive to infrared or radiant energy, see SEMICONDUCTOR DEVICE (1), PHOTO.20259800046Optoelectronic Devices and Associated Hardware62100045Indoor and Outdoor Electric Lighting Fixtures
Part Alternates: SP830223A, SP830223-A, T531011404, 303784, 30378-4, 57250104, 5725010-4, 5980-01-241-0631, 01-241-0631, 5980012410631, 012410631
Electrical and Electronic Equipment Components | Optoelectronic Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 22 SEP 1986 | 01-241-0631 | 32371 ( LIGHT EMITTING DIODE ) |

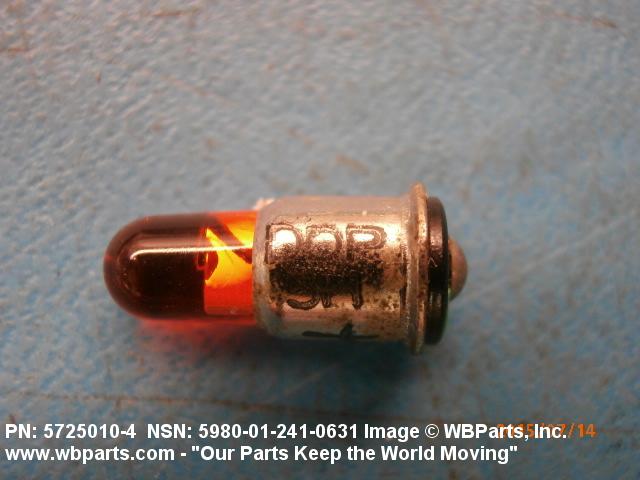

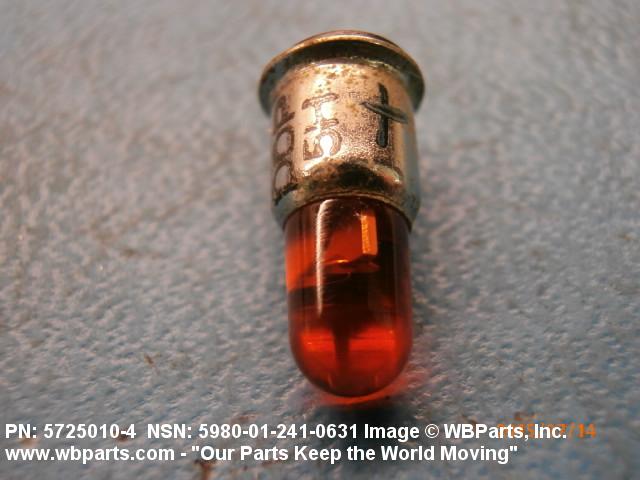

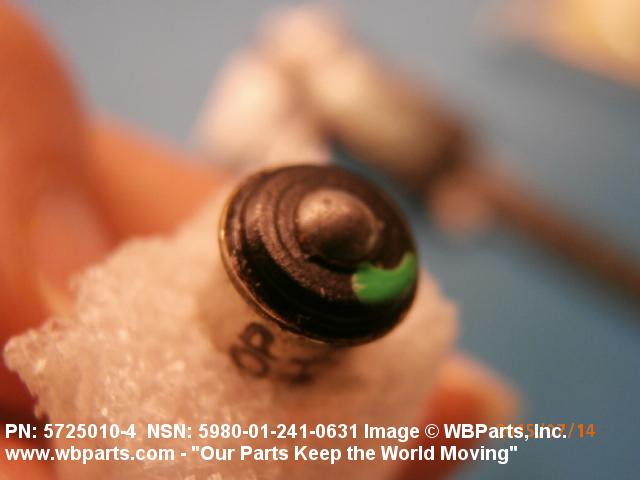

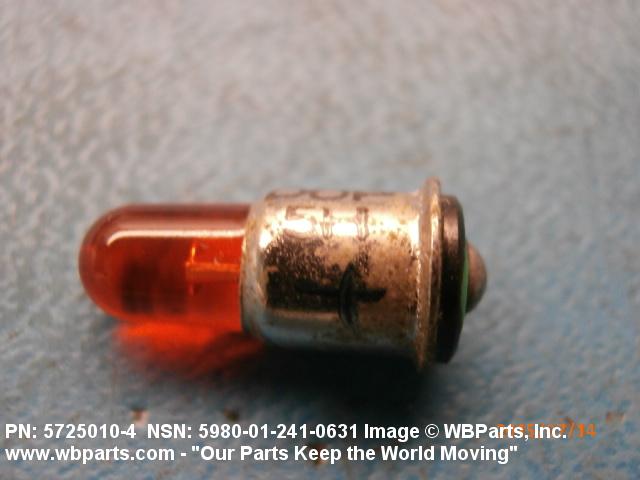

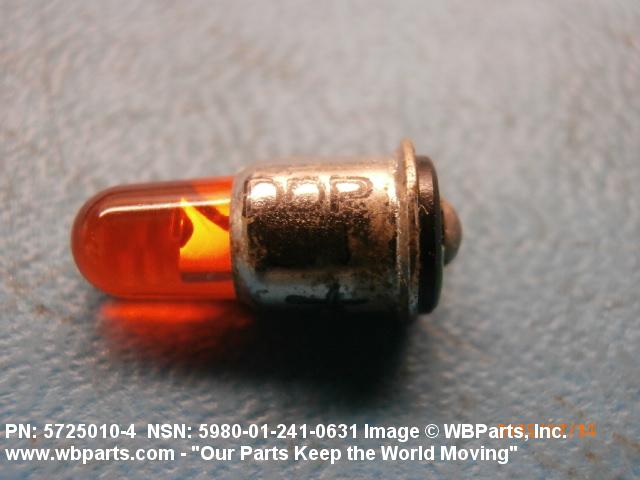

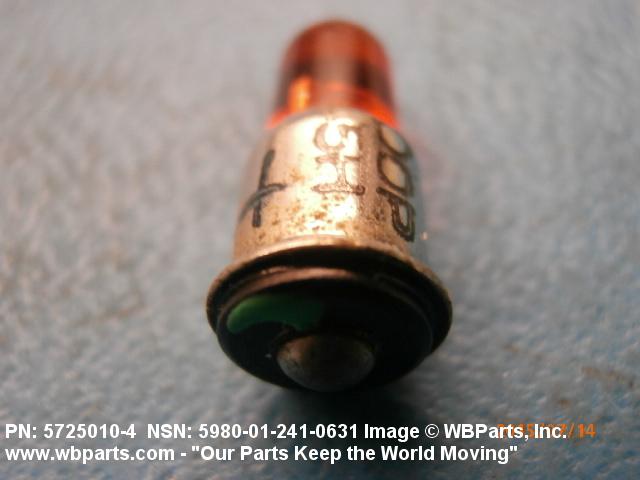

Drawings & Photos | NSN 5980-01-241-0631
Demand History | NSN 5980-01-241-0631
Cross Reference | NSN 5980-01-241-0631
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 30378-4 | 08719 | DUCOMMUN LABARGE TECHNOLOGIES, INC DBA AMERICAN ELECTRONICS |
| 5725010-4 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| SP830223-A | 15513 | DISPLAY PRODUCTS INC. DBA DATA DISPLAY PRODUCTS |
| T531011404 | 36090 | LOCKHEED MARTIN LIBRASCOPE CORP |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5980-01-241-0631
5980-01-241-0632, 5980-01-241-2381, 5980-01-241-2947, 5980-01-241-3135, 5980-01-241-5237
Technical Data | NSN 5980-01-241-0631
| Characteristic | Specifications |
|---|---|
| SEMICONDUCTOR MATERIAL | GALLIUM ARSENIDE |
| INTERNAL CONFIGURATION | POINT CONTACT |
| INTERNAL JUNCTION CONFIGURATION | PN |
| VOLTAGE RATING IN VOLTS PER CHARACTERISTIC | 5.0 MAXIMUM NOMINAL REGULATOR VOLTAGE |
| CURRENT RATING PER CHARACTERISTIC | 27.00 MILLIAMPERES MAXIMUM VOLTAGE REGULATOR DIODE CURRENT |
| COLOR TONE PRODUCED PER SOURCE | AMBER SEMICONDUCTOR |
| LUMINOUS INTENSITY | 130.0 MILLICANDELA NOMINAL |
| MAXIMUM OPERATING TEMP PER MEASUREMENT POINT | 70.0 DEG CELSIUS AMBIENT AIR |
| INCLOSURE MATERIAL | METAL AND PLASTIC |
| JOINT ELECTRONIC DEVICE ENGINEERING COUNCIL/JEDEC/CASE OUTLINE DESIGNATION | T1 3/4 |
| MOUNTING METHOD | PRESS FIT |
| TERMINAL TYPE AND QUANTITY | 2 CASE |

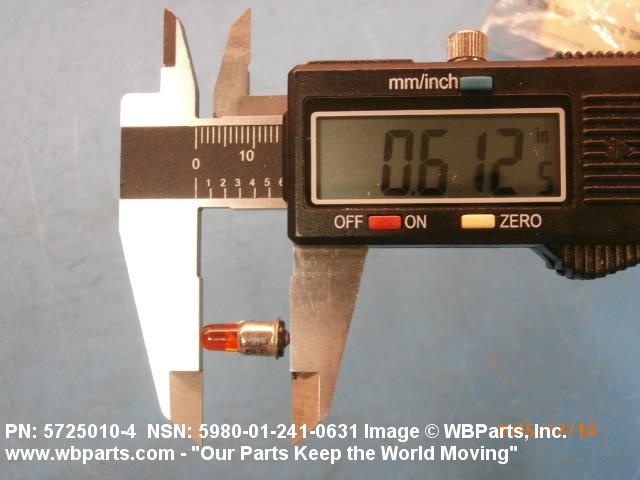

| OVERALL LENGTH | 0.650 INCHES MAXIMUM |

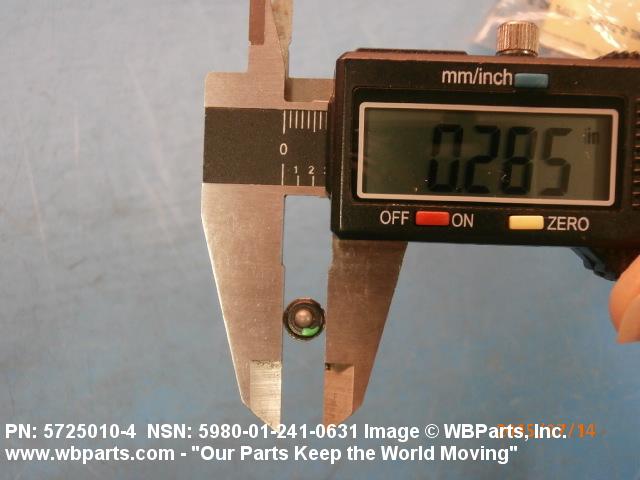

| OVERALL DIAMETER | 0.285 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5980-01-241-0631
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5980-01-241-0631
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
