Product Details | WAVEGUIDE ASSEMBLY
5985-00-808-4511 An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE.
Part Alternates: MA558A, 9113377, 5985-00-808-4511, 00-808-4511, 5985008084511, 008084511
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-808-4511 | 00305 ( WAVEGUIDE ASSEMBLY ) |
Drawings & Photos | NSN 5985-00-808-4511
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5985-00-808-4511
Related Products | NSN 5985-00-808-4511
5985-00-808-5270, 5985-00-808-5814, 5985-00-808-7122, 5985-00-809-0522, 5985-00-809-1187
Technical Data | NSN 5985-00-808-4511
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B1 STRAIGHT TYPE |
| WAVEGUIDE LENGTH | 1.750 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | A1 INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| WAVEGUIDE OUTSIDE WIDTH | 0.360 INCHES NOMINAL |
| WAVEGUIDE INSIDE WIDTH | 0.280 INCHES NOMINAL |
| WAVEGUIDE INSIDE HEIGHT | 0.140 INCHES NOMINAL |
| WAVEGUIDE OUTSIDE HEIGHT | 0.220 INCHES NOMINAL |
| FLEXIBILITY | RIGID SINGLE TUBING SEGMENT |
| TUBING WALL CONSTRUCTION STYLE | J1 SEAMLESS SINGLE TUBING SEGMENT |
| TUBING TWIST TYPE | STRAIGHT TWIST SINGLE TUBING SEGMENT |
| TUBING TWIST ANGLE IN DEG | 90.0 SINGLE TUBING SEGMENT |
| MATERIAL | METAL NONFERROUS/D SINGLE TUBING SEGMENT |
| SURFACE TREATMENT | SILVER SINGLE TUBING SEGMENT INSIDE SURFACES ANY ACCEPTABLE SINGLE TUBING SEGMENT OUTSIDE SURFACES |
| FLANGE QUANTITY | 2 |

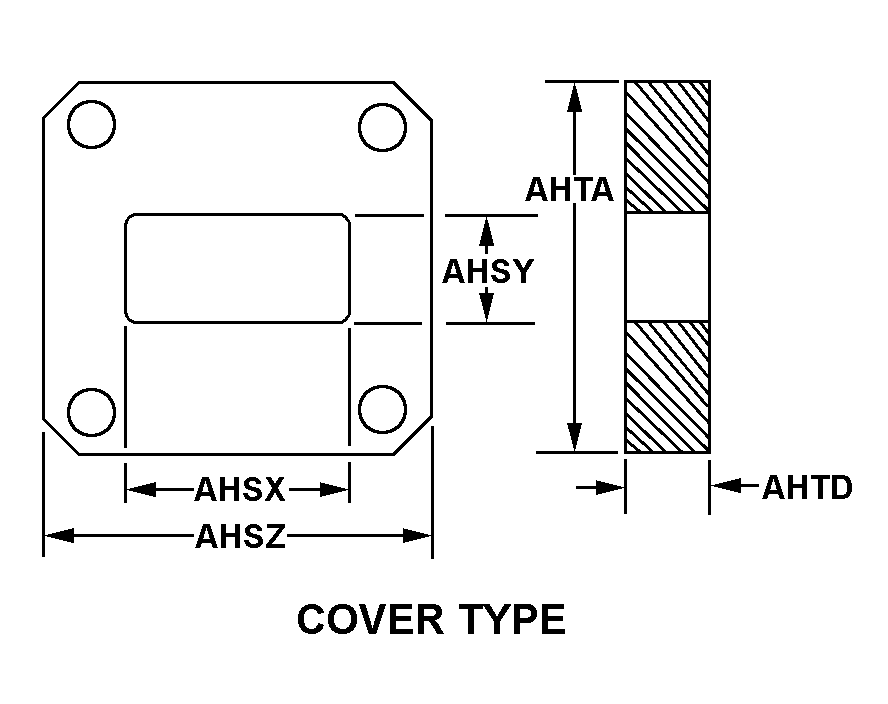

| FLANGE STYLE | C27 COVER TYPE ALL FLANGES |
| FLANGE INSIDE WIDTH | 0.362 INCHES NOMINAL ALL FLANGES |
| FLANGE INSIDE HEIGHT | 0.222 INCHES NOMINAL ALL FLANGES |
| FLANGE OUTSIDE WIDTH | 0.750 INCHES NOMINAL ALL FLANGES |
| FLANGE OUTSIDE HEIGHT | 0.750 INCHES NOMINAL ALL FLANGES |
| FLANGE DEPTH | 0.188 INCHES NOMINAL ALL FLANGES |
| FLANGE CONNECTING FACILITY AND QUANTITY | 4 UNTHREADED HOLE ALL FLANGES ALL CONNECTION FACILITIES |
| FLANGE CONNECTING HOLE DIAMETER | 0.116 INCHES NOMINAL ALL FLANGES ALL CONNECTION FACILITIES |
| (NON-CORE DATA) TUBING MANUFACTURER PART NUMBER | M85/1-114 SINGLE TUBING SEGMENT |
| (NON-CORE DATA) FLANGE MANUFACTURER PART NUMBER | M3922/54-3 ALL FLANGES |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | INTERNAL TUBING SURFACE SILVER |
Restrictions/Controls & Freight Information | NSN 5985-00-808-4511
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
