Product Details | WAVEGUIDE ASSEMBLY
5985-00-875-2852 An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE.
Part Alternates: 208156, 95763, 5985-00-875-2852, 00-875-2852, 5985008752852, 008752852
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-875-2852 | 00305 ( WAVEGUIDE ASSEMBLY ) |
Drawings & Photos | NSN 5985-00-875-2852
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5985-00-875-2852
Related Products | NSN 5985-00-875-2852
5985-00-875-4058, 5985-00-875-4085, 5985-00-875-4988, 5985-00-875-5182, 5985-00-875-6397
Technical Data | NSN 5985-00-875-2852
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B4 OFFSET BEND TYPE |
| WAVEGUIDE LENGTH | 38.750 INCHES NOMINAL |
| WAVEGUIDE CENTER TO CENTER DISTANCE | 18.750 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | A1 INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| WAVEGUIDE OUTSIDE WIDTH | 2.994 INCHES MINIMUM AND 3.006 INCHES MAXIMUM |
| WAVEGUIDE INSIDE WIDTH | 2.834 INCHES MINIMUM AND 2.846 INCHES MAXIMUM |
| WAVEGUIDE INSIDE HEIGHT | 1.334 INCHES MINIMUM AND 1.346 INCHES MAXIMUM |
| WAVEGUIDE OUTSIDE HEIGHT | 1.494 INCHES MINIMUM AND 1.506 INCHES MAXIMUM |
| FLEXIBILITY | FLEXIBLE SINGLE TUBING SEGMENT |

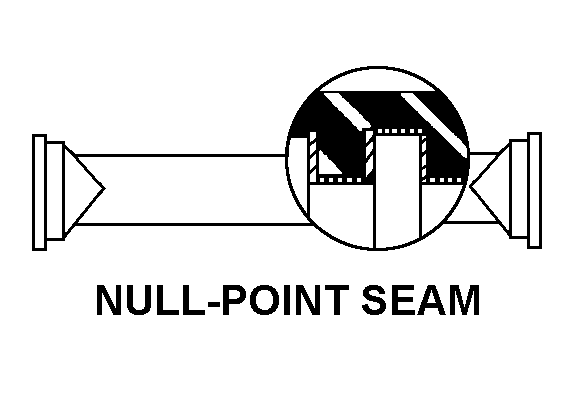

| TUBING WALL CONSTRUCTION STYLE | J7 NULL-POINT SEAM SINGLE TUBING SEGMENT |
| TUBING TWIST TYPE | STRAIGHT TWIST SINGLE TUBING SEGMENT |
| TUBING TWIST ANGLE IN DEG | 67.5 SINGLE TUBING SEGMENT |
| MATERIAL | ALUMINUM ALLOY ALL FLANGE |
| SURFACE TREATMENT | CHROMATE AND PRIMER AND PAINT ALL FLANGE OUTSIDE SURFACES |
| FLANGE QUANTITY | 2 |
| FLANGE STYLE | C25 COVER TYPE FIRST FLANGE |
| FLANGE INSIDE WIDTH | 3.002 INCHES MINIMUM AND 3.005 INCHES MAXIMUM FIRST FLANGE |
| FLANGE INSIDE HEIGHT | 1.502 INCHES MINIMUM AND 1.505 INCHES MAXIMUM FIRST FLANGE |
| FLANGE OUTSIDE DIAMETER | 5.298 INCHES MINIMUM AND 5.328 INCHES MAXIMUM FIRST FLANGE |
| FLANGE DEPTH | 0.735 INCHES MINIMUM AND 0.765 INCHES MAXIMUM FIRST FLANGE |
| FLANGE CONNECTING FACILITY AND QUANTITY | 8 UNTHREADED HOLE FIRST FLANGE ALL CONNECTION FACILITIES |
| FLANGE CONNECTING HOLE DIAMETER | 0.257 INCHES MINIMUM AND 0.260 INCHES MAXIMUM FIRST FLANGE ALL CONNECTION FACILITIES |
| INSERTION LOSS IN DECIBELS | 0.06 |
| VOLTAGE STANDING WAVE RATIO | 1.06 |
| (NON-CORE DATA) TUBING MANUFACTURER PART NUMBER | M85/1-041 SINGLE TUBING SEGMENT |
| (NON-CORE DATA) FLANGE MANUFACTURER PART NUMBER | M3922/56-2 FIRST FLANGE |
| (NON-CORE DATA) FRAGILITY FACTOR | MODERATELY RUGGED |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | INTERNAL SURFACES SILVER |
| III FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 5985-00-875-2852
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-00-875-2852
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
