5985-00-988-4405 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: RC43A6052H44, RC43E6050H440, RC43E6051H440, 3103, 4100515010, 410-0515-010, 5985-00-988-4405, 00-988-4405, 5985009884405, 009884405
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-988-4405 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-00-988-4405
Demand History | NSN 5985-00-988-4405
Cross Reference | NSN 5985-00-988-4405
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3103 | 52151 | CONTINENTAL ELECTRONICS CORPORATION |
| 410-0515-010 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| RC43A6052H44 | 73905 | JENNINGS TECHNOLOGY COMPANY LLC DBA JENNINGS |
| RC43E6050H440 | 73905 | JENNINGS TECHNOLOGY COMPANY LLC DBA JENNINGS |
| RC43E6051H440 | 73905 | JENNINGS TECHNOLOGY COMPANY LLC DBA JENNINGS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5985-00-988-4405
Related Products | NSN 5985-00-988-4405
5985-00-988-4752, 5985-00-988-5261, 5985-00-988-5268, 5985-00-988-5270, 5985-00-988-6834
Technical Data | NSN 5985-00-988-4405
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 400.0 MEGAHERTZ MINIMUM AND 450.0 MEGAHERTZ MAXIMUM SINGLE FREQUENCY VOLTAGE STANDING WAVE RATIO 400.0 MEGAHERTZ MINIMUM AND 450.0 MEGAHERTZ MAXIMUM SINGLE FREQUENCY INSERTION LOSS REFERENCE |
| RF POWER HANDLING CAPABILITY | 1.0 KILOWATTS AVERAGE 1ST 15.0 KILOWATTS PEAK 2ND |
| ACTUATOR VOLTAGE IN VOLTS | 24.0 MINIMUM AND 28.0 MAXIMUM |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 3 |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE |
| SWITCH OPERATION SEQUENCE | MAKES BEFORE BREAKS |
| SWITCHING TIME | 18.0 MILLISECONDS |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |

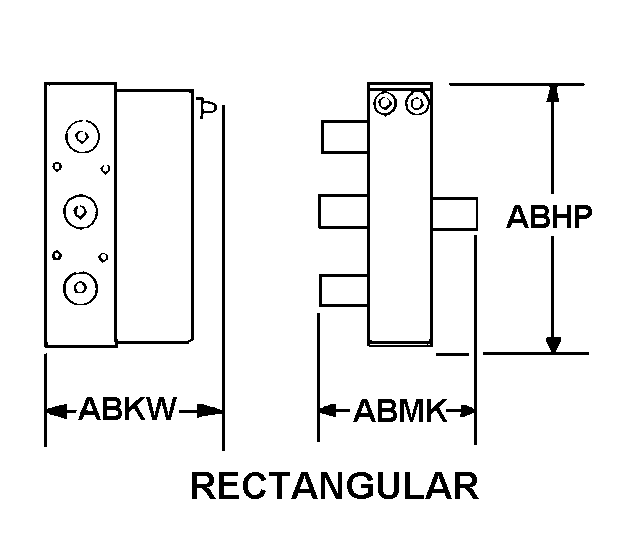

| BODY STYLE | 13B RECTANGULAR |
| OVERALL LENGTH | 4.969 INCHES MINIMUM AND 5.031 INCHES MAXIMUM |
| OVERALL WIDTH | 4.031 INCHES MINIMUM AND 4.093 INCHES MAXIMUM |
| III OPERATING TEMP RANGE | -55.0 TO 125.0 DEG CELSIUS |
