Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-477-2200 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: C209174, C-209174, 2091744, 209174-4, 52091744, 5209174-4 , 5985-01-477-2200, 01-477-2200, 5985014772200, 014772200
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 AUG 2000 | 01-477-2200 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-477-2200
Demand History | NSN 5985-01-477-2200
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-477-2200 | 2018-10-22 | 3 | DIBBS |
| 5985-01-477-2200 | 2018-10-11 | 3 | DIBBS |
| 5985-01-477-2200 | 2018-01-18 | 2 | DIBBS |
| 5985-01-477-2200 | 2017-08-13 | 2 | DIBBS |
| 5985-01-477-2200 | 2017-07-13 | 2 | DIBBS |
| 5985-01-477-2200 | 2014-11-05 | 3 | DIBBS |
| 5985-01-477-2200 | 2014-08-14 | 4 | DIBBS |
| 5985-01-477-2200 | 2010-10-25 | 4 | DIBBS |
| 5985-01-477-2200 | 2010-09-29 | 1 | DIBBS |
| 5985-01-477-2200 | 2010-08-30 | 1 | DIBBS |
| 5985-01-477-2200 | 2010-06-16 | 13 | DIBBS |
| 5985-01-477-2200 | 2009-03-17 | 11 | DIBBS |
| 5985-01-477-2200 | 2009-02-23 | 7 | DIBBS |
| 5985-01-477-2200 | 2008-02-04 | 7 | DIBBS |
| 5985-01-477-2200 | 2007-01-24 | 2 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5985-01-477-2200
Related Products | NSN 5985-01-477-2200
5985-01-477-2657, 5985-01-477-3964, 5985-01-477-4209, 5985-01-477-4562, 5985-01-477-4738
Technical Data | NSN 5985-01-477-2200
| Characteristic | Specifications |
|---|---|

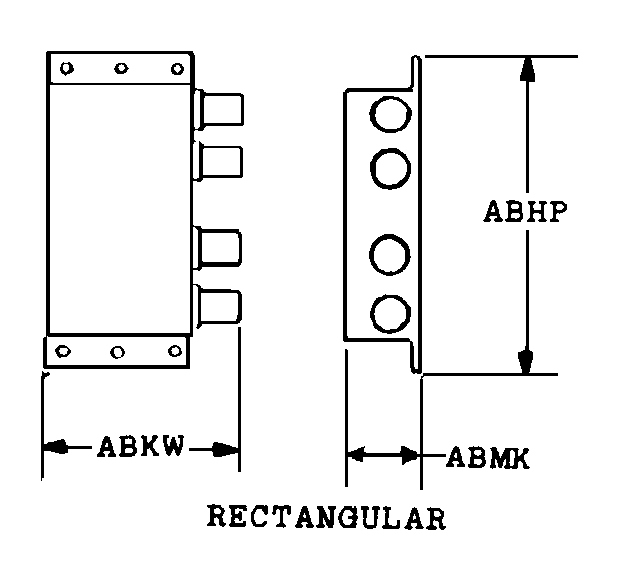

| BODY STYLE | 48B RECTANGULAR |
| OVERALL LENGTH | 5.840 INCHES NOMINAL |
| OVERALL HEIGHT | 4.250 INCHES NOMINAL |
| OVERALL WIDTH | 0.863 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.150 INCHES NOMINAL |
| SPECIAL FEATURES | INCLUDES CABLES ON OUTPUT PORTS; FDDI C000 BYPASS SWITCH MODULE ST ADAPTOR/ST PIGTAILS; 6 POSITION SHELDED MINI DIN |
Restrictions/Controls & Freight Information | NSN 5985-01-477-2200
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
