Product Details | FIXED ATTENUATOR
5985-01-544-9143 A device for reducing the strength of an alternating current signal by a fixed or predetermined amount, without causing appreciable signal distortion, by maintaining correct impedance match.
Part Alternates: A3RR103, A3RR10-3, PCAF3, PCAF-3, TS0303W3, 7136063, 713606-3, 5985-01-544-9143, 01-544-9143, 5985015449143, 015449143
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 26 OCT 2006 | 01-544-9143 | 14224 ( ATTENUATOR, FIXED ) |

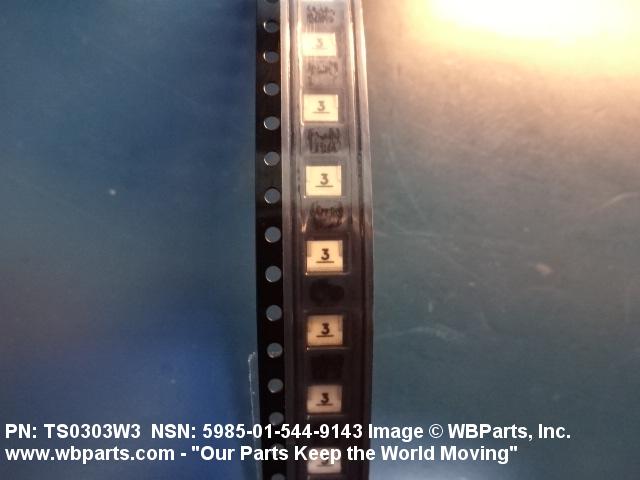

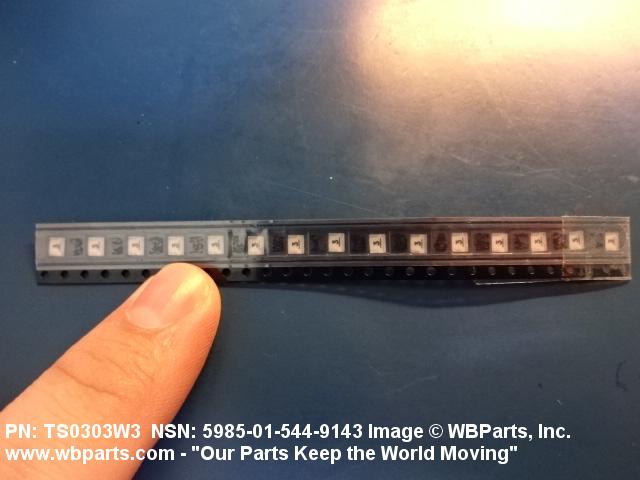

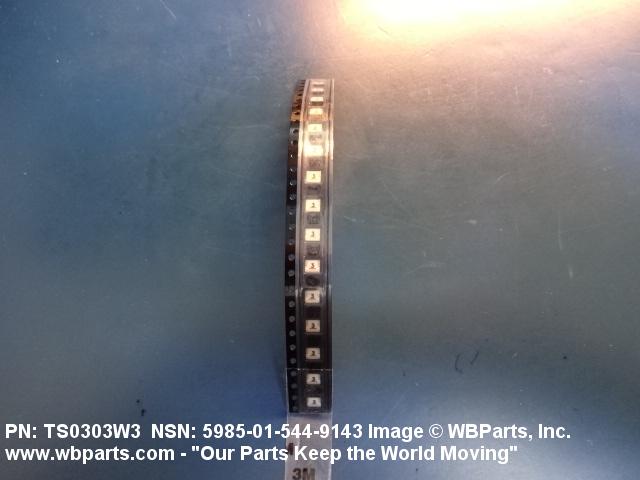

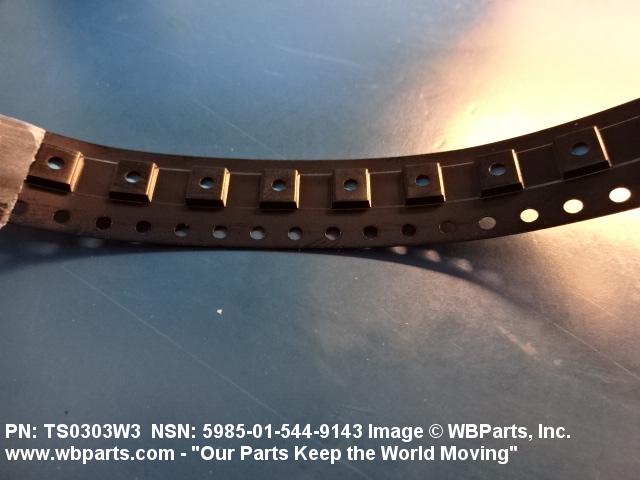

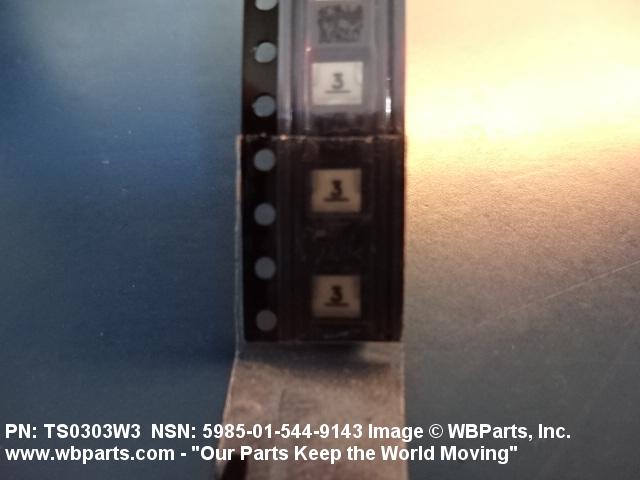

Drawings & Photos | NSN 5985-01-544-9143
Demand History | NSN 5985-01-544-9143
Cross Reference | NSN 5985-01-544-9143
Part Number | Cage Code | Manufacturer |
---|---|---|
713606-3 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
A3RR10-3 | 64537 | AEROFLEX CONTROL COMPONENTS, INC. DBA AEROFLEX / KDI |
PCAF-3 | 64537 | AEROFLEX CONTROL COMPONENTS, INC. DBA AEROFLEX / KDI |
TS0303W3 | 1CSB1 | EMC TECHNOLOGY SERVICES INC |
TS0303W3 | 24602 | SMITHS INTERCONNECT MICROWAVE COMPONENTS, INC. |
Request a Quote
Comments | What our customers are saying...
NSNs for Compare ( up to 4 ): Add 5985-01-544-9143
Related Products | NSN 5985-01-544-9143
5985-01-544-9181, 5985-01-544-9183, 5985-01-544-9376, 5985-01-544-9514, 5985-01-544-9593
Technical Data | NSN 5985-01-544-9143
Characteristic | Specifications |
---|---|
APPLICATION DESIGN | TRANSMISSION LINE |
INPUT IMPEDANCE RATING IN OHMS | 50.0 |
OUTPUT IMPEDANCE RATING IN OHMS | 50.0 |
FREQUENCY RANGE | 0.000 HERTZ MINIMUM AND 8.000 GIGAHERTZ MAXIMUM |
VOLTAGE STANDING WAVE RATIO | 1.25 AND 1.35 |
VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE | 0.0 TO 8.0 GIGAHERTZ |
RF SIGNAL ATTENUATION IN DECIBELS | 3.0 |
FREQUENCY SENSITIVITY ATTENUATION IN DECIBELS | 1.00 |
POWER RATING | 2.0 WATTS AVERAGE AND 50.0 WATTS PEAK |
OPERATING TEMP RANGE | -55.0 TO 150.0 DEG CELSIUS |
BODY STYLE | 26B RECTANGULAR TERMINAL/TERMINALS ON THREE SURFACES |
OVERALL LENGTH | 0.147 INCHES NOMINAL |
OVERALL HEIGHT | 0.039 INCHES NOMINAL |
OVERALL WIDTH | 0.123 INCHES NOMINAL |
BODY MATERIAL | ANY ACCEPTABLE |
BODY SURFACE TREATMENT | ANY ACCEPTABLE |
TERMINAL TYPE AND QUANTITY | 3 SURFACE CONTACT |
SPECIAL FEATURES | SUBSTRATE: ALUMINA; RESISTIVE MATERIAL: THIN FILM; FINISH: 60/40 SOLDER (BLANK) |
III END ITEM IDENTIFICATION | R-2199A/SPS-49(V), RECEIVER, RADAR; WSD: NIMITZ CLASS CVN |
Restrictions/Controls & Freight Information | NSN 5985-01-544-9143
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 060535 | AERIAL/ANTENNAS DIRECTIONAL |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 723 | unknown |
Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-544-9143
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
