5990-00-553-6711 - TRANSMITTER SYNCHRO, AY240BA12A1, MIL-S-20708/94, MILS2070894

Product Details | TRANSMITTER SYNCHRO

5990-00-553-6711 A synchro consisting of a stator and rotor inductively coupled. The electrical output of the stator into a receiver synchro, a control transformer or differential synchro is dependent upon the position of its rotor. Does not include variable resistors, goniometers, variable transformers, or items with dials.

Part Alternates: AY240BA12A1, MIL-S-20708/94, MILS2070894, VTX23/36-6B, VTX23366B, 23TX6A, 5990-00-553-6711, 00-553-6711, 5990005536711, 005536711

Electrical and Electronic Equipment Components | Synchros and Resolvers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-553-6711	02073 ( SYNCHRO, TRANSMITTER )

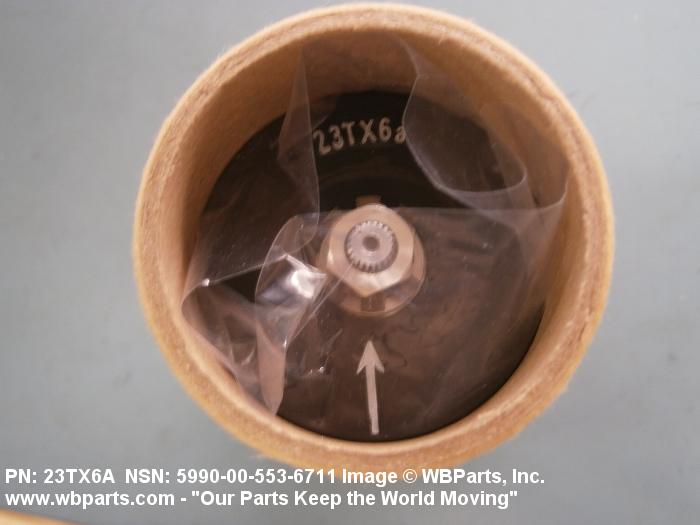

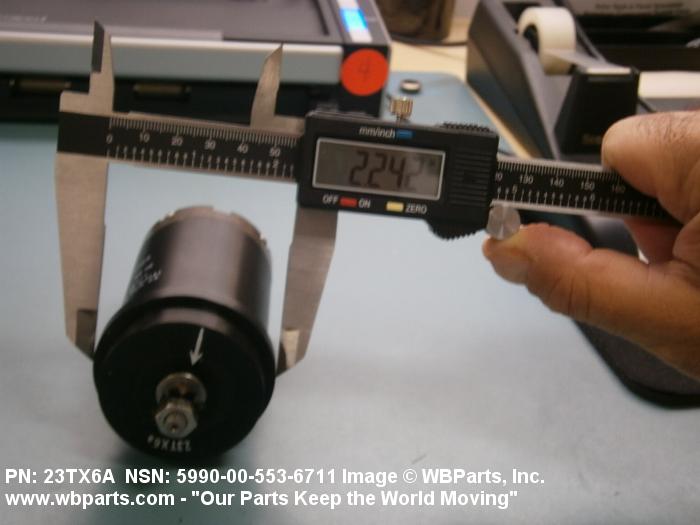

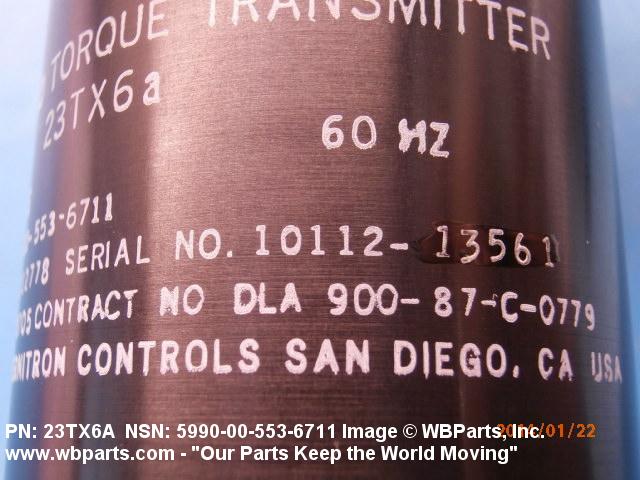

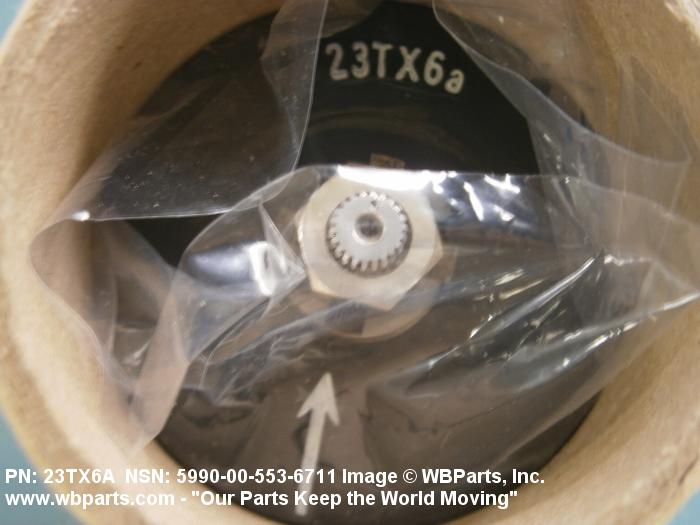

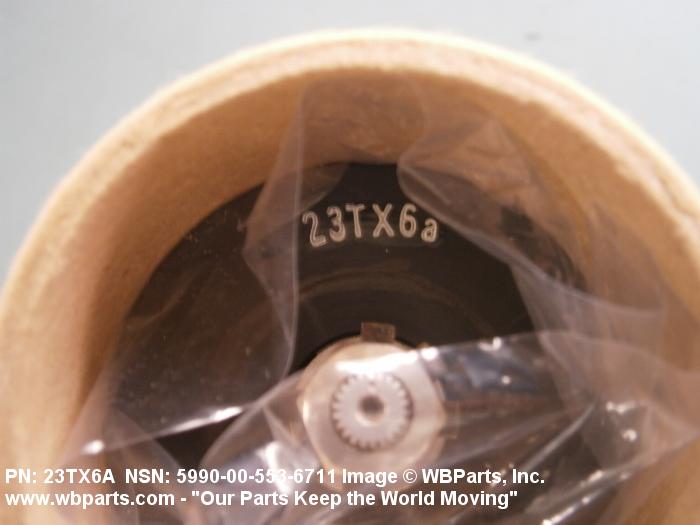

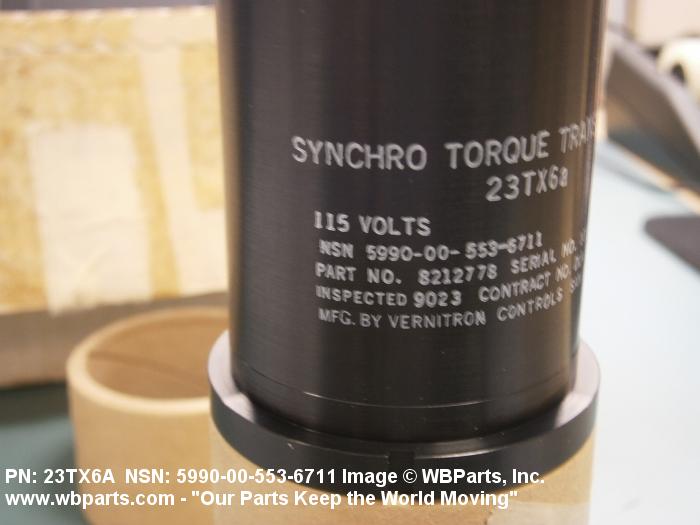

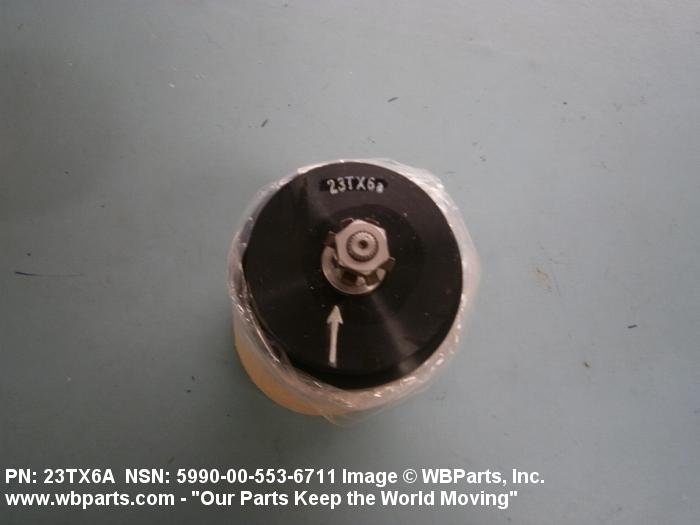

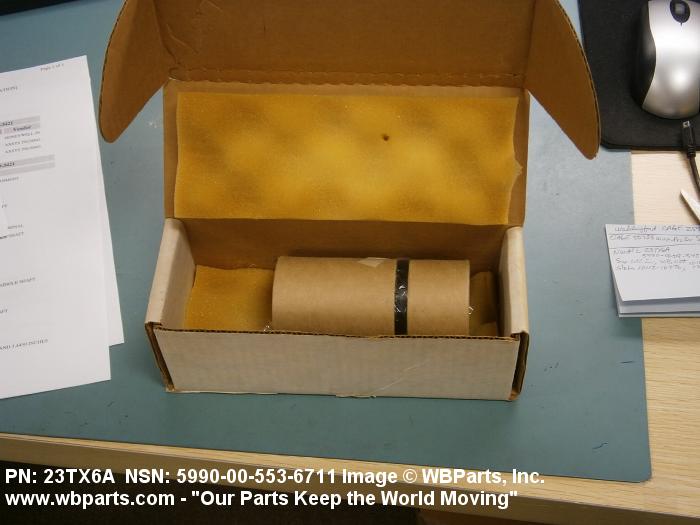

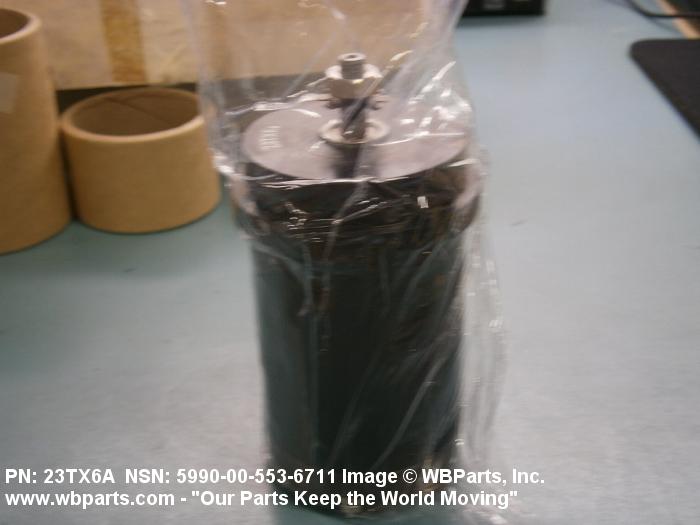

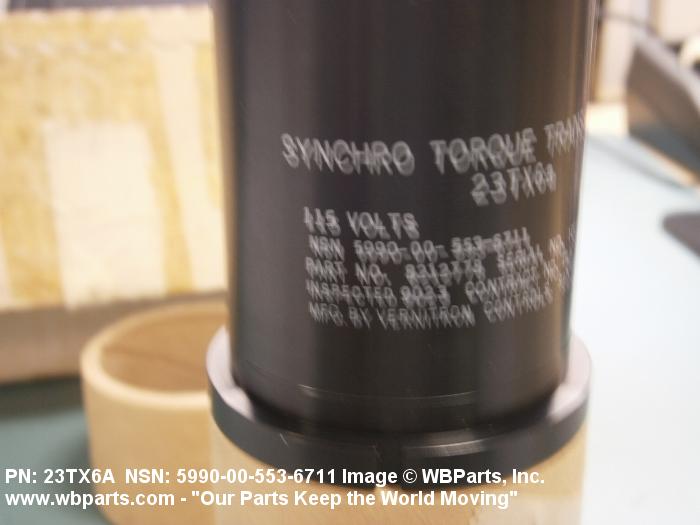

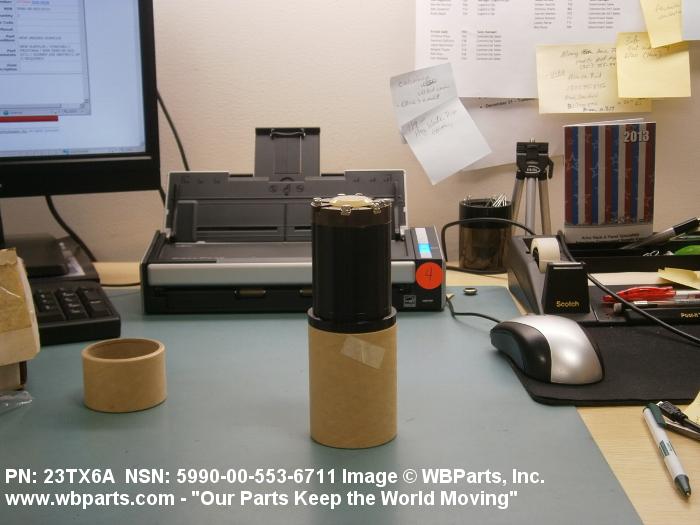

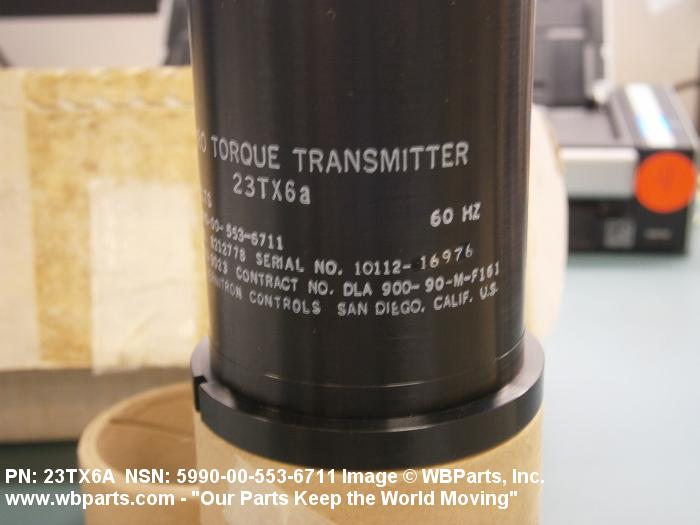

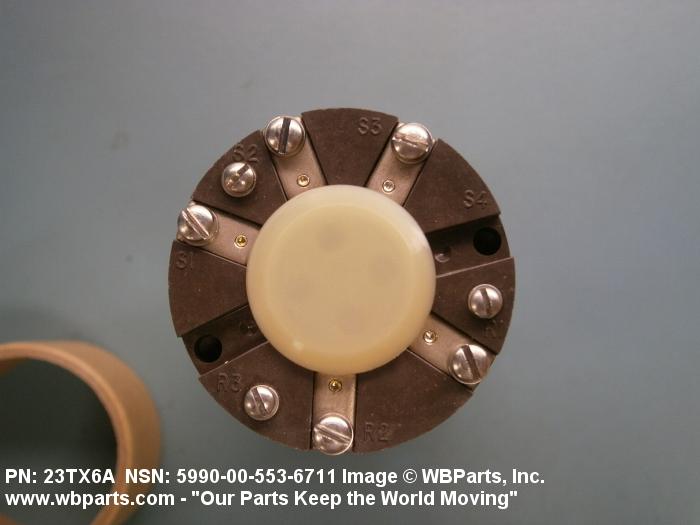

Drawings & Photos | NSN 5990-00-553-6711

Part Number	Request Date	QTY	Origin
5990-00-553-6711	2024-02-08	11	DIBBS
5990-00-553-6711	2023-07-20	1	DIBBS
5990-00-553-6711	2023-06-26	1	DIBBS
5990-00-553-6711	2023-05-21	11	DIBBS
5990-00-553-6711	2022-10-05	2	PE
5990-00-553-6711	2021-04-20	1	US
5990-00-553-6711	2021-04-20	2	US
MILS2070894	2020-08-05	8	US
5990-00-553-6711	2019-05-16	1	South Korea
5990-00-553-6711	2019-01-14	2	United States
23TX6A	2019-01-09	2	us
5990-00-553-6711	2016-12-13	2	US
5990-00-553-6711	2016-01-18	3	DIBBS
23TX6A	2014-11-14	4	United States
5990-00-553-6711	2014-01-08	1	United States
23TX6A	2013-07-03	4	United States
23TX6A	2013-06-28	4	United States
5990-00-553-6711	2012-08-31	8	DIBBS
5990-00-553-6711	2012-07-20	8	DIBBS
23TX6A	2010-11-29	4	United States

Cross Reference | NSN 5990-00-553-6711

Part Number	Cage Code	Manufacturer
23TX6A	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
AY240BA12A1	55972	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS
MIL-S-20708/94	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
VTX23/36-6B	10112	GENERAL DYNAMICS GLOBAL IMAGING TECHNOLOGIES, INC.

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5990-00-553-6711

Compare

Related Products | NSN 5990-00-553-6711

5990-00-553-6712, 5990-00-553-6716, 5990-00-553-6848, 5990-00-553-7238, 5990-00-554-0359

Technical Data | NSN 5990-00-553-6711

Characteristic	Specifications
BODY SIZE	23
ROTOR INPUT VOLTAGE RATING IN VOLTS	115.0 NOMINAL
ROTOR INPUT CURRENT RATING	210.0 MILLIAMPERES NOMINAL
ROTOR INPUT ELECTRICAL POWER RATING	5.0 WATTS NOMINAL
FREQUENCY IN HERTZ	60.0 NOMINAL
ZRO RESISTANCE IN OHMS	132.00 NOMINAL
PLUS J ZRO REACTANCE IN OHMS	494.00 NOMINAL
ZSO RESISTANCE IN OHMS	98.00 NOMINAL
PLUS J ZSO REACTANCE IN OHMS	311.00 NOMINAL
ZRS RESISTANCE IN OHMS	249.00 NOMINAL
PLUS J ZRS REACTANCE IN OHMS	79.00 NOMINAL
ZSO-90 RESISTANCE IN OHMS	90.00 NOMINAL
PLUS J ZSO-90 REACTANCE IN OHMS	90.00 NOMINAL
TRANSFORMATION RATIO	0.783 ROTOR TO STATOR NOMINAL
MAXIMUM TEMP RISE	65.0 DEG CELSIUS
MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT	75.00 OUTPUT
MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT	125.00
ELECTRICAL ERROR ANGULAR RANGE IN MINUTES	-8.0 TO 8.0
ACTUATOR FRICTION TORQUE AT MINUS 55 DEG CELSIUS	0.50 INCH-OUNCES MAXIMUM
ACTUATOR FRICTION TORQUE AT PLUS 25 DEG CELSIUS	0.20 INCH-OUNCES MAXIMUM
TORQUE GRADIENT PER ANGULAR DEG	0.130 INCH-OUNCES NOMINAL

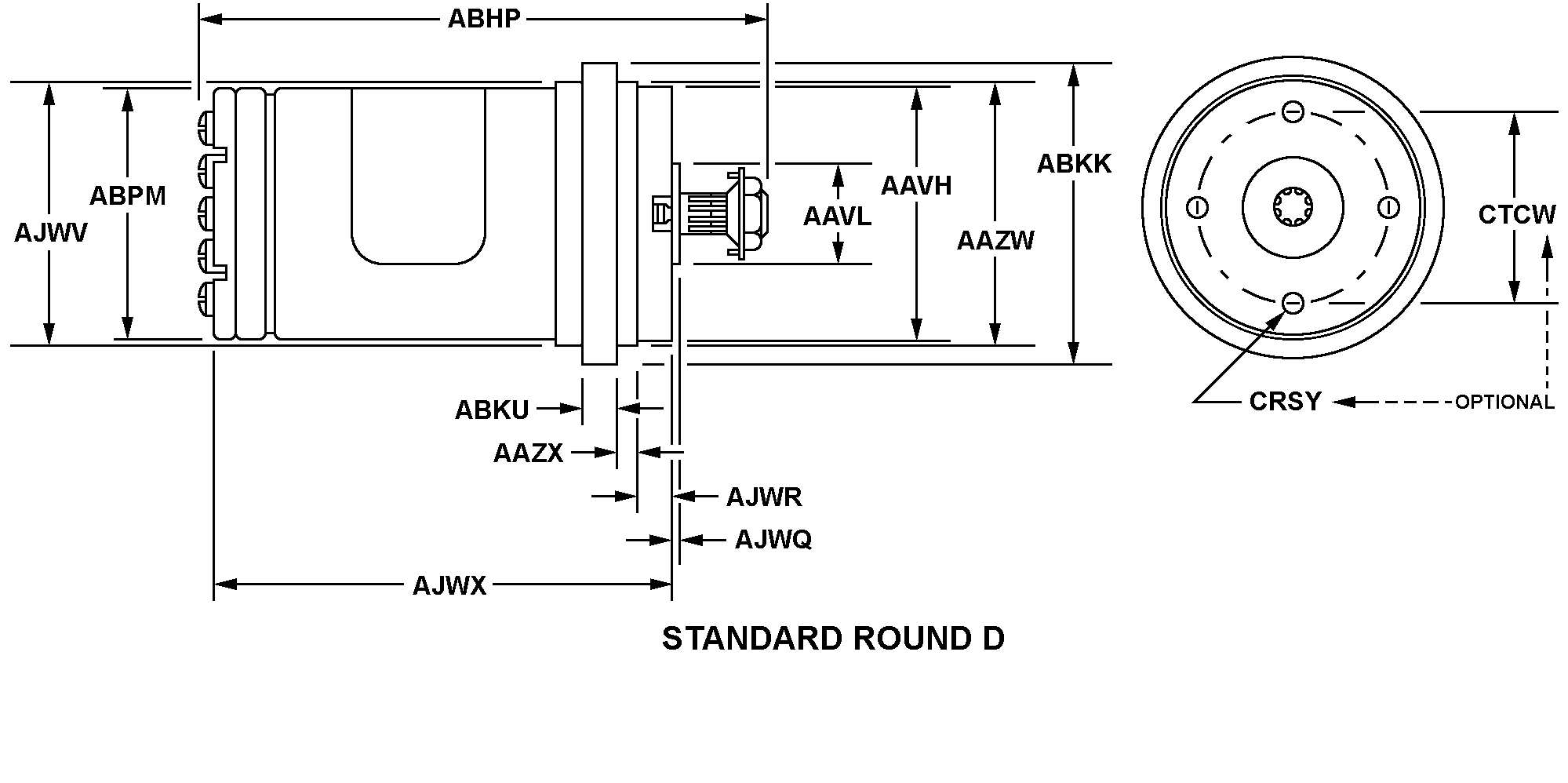

BODY STYLE	A4 STANDARD ROUND D
SHOULDER DIAMETER	1.9850 INCHES MINIMUM AND 1.9900 INCHES MAXIMUM
PILOT DIAMETER	0.5900 INCHES MINIMUM AND 0.6000 INCHES MAXIMUM
SECOND SHOULDER DIAMETER	1.9985 INCHES MINIMUM AND 1.9995 INCHES MAXIMUM
SECOND SHOULDER LENGTH	0.1670 INCHES MINIMUM AND 0.1700 INCHES MAXIMUM

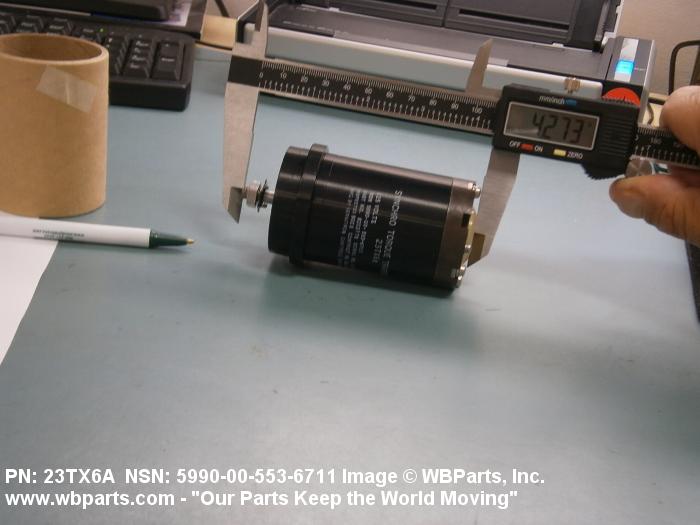

OVERALL LENGTH	4.2940 INCHES NOMINAL

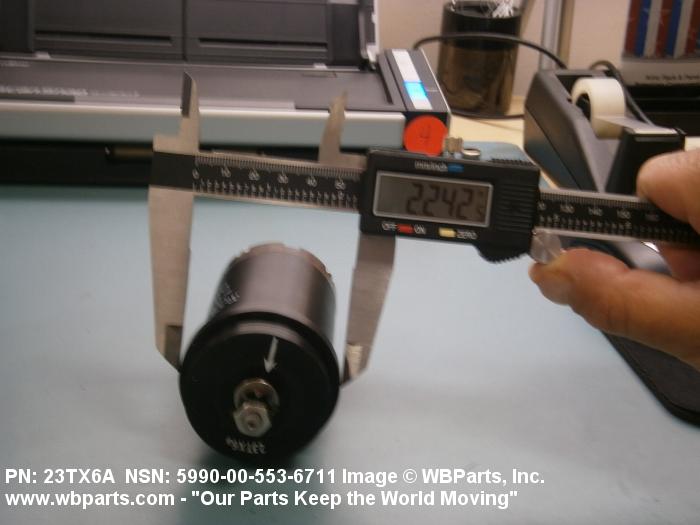

FLANGE DIAMETER	2.2490 INCHES MINIMUM AND 2.2500 INCHES MAXIMUM

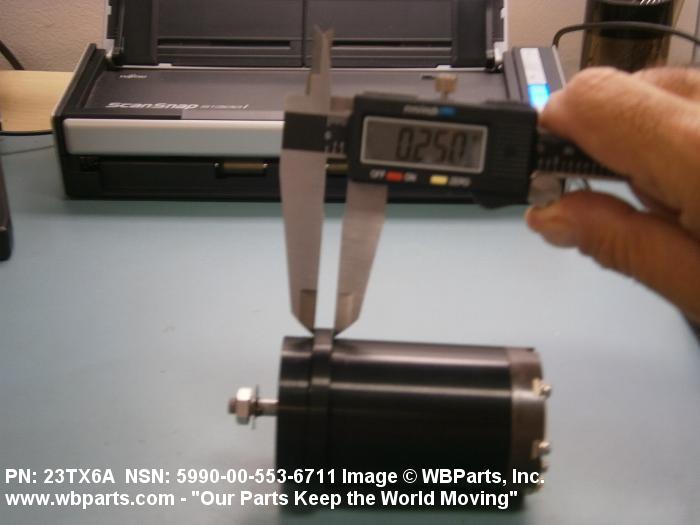

FLANGE THICKNESS	0.2490 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM
BODY DIAMETER	1.9900 INCHES MINIMUM AND 1.9950 INCHES MAXIMUM
PILOT LENGTH	0.0360 INCHES MINIMUM AND 0.0460 INCHES MAXIMUM
SHOULDER LENGTH	0.2410 INCHES MINIMUM AND 0.2520 INCHES MAXIMUM
AFT OF FIRST FLANGE DIAMETER	1.9985 INCHES MINIMUM AND 1.9995 INCHES MAXIMUM
MOUNTING SURFACE TO TERMINAL END DISTANCE	3.4450 INCHES MAXIMUM
SHAFT TYPE	SPLINE W/THREADS SINGLE SHAFT
SHAFT DIAMETER	0.2402 INCHES MINIMUM AND 0.2405 INCHES MAXIMUM SINGLE SHAFT
SHAFT LENGTH	0.6930 INCHES MINIMUM AND 0.7190 INCHES MAXIMUM SINGLE SHAFT
SHAFT THREAD LENGTH	0.2660 INCHES NOMINAL SINGLE SHAFT
SPLINE TOOTH QUANTITY	22 SINGLE SHAFT
SPLINE TOOTH DIAMETRAL PITCH	96 SINGLE SHAFT
SHAFT THREAD SERIES DESIGNATOR	UNF SINGLE SHAFT

Restrictions/Controls & Freight Information | NSN 5990-00-553-6711

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	D	Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.)
Controlled Inventory Item Code:	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	062820	RADIO/TV TRANSMIT/RECEIVE SETS
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	593	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	K	Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5990-00-553-6711

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	4	Communications Systems Agency and Satellite Communications
Weapons Systems/End Item or Homogeneous Group	4A	AN/FSC-78/GSC-39
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Schedule B No. and Headings	Commodity Description	Unit of Quantity
90.14	- Direction finding compasses; other navigational instruments and appliances; parts and accessories thereof:
9014.10	- - Direction finding compasses:
	- - - Other:
	- - - - Gyroscopic compasses, other than electrical:
9014.10.6040	- - - - - For use in civil aircraft	No.
9014.10.6080	- - - - - Other	No.
	- - - - Other:
	- - - - - Gyroscopic compasses, electrical:
9014.10.7040	- - - - - - For use in civil aircraft	No.
9014.10.7080	- - - - - - Other	No.
	- - - - - Other:
9014.10.9040	- - - - - - For use in civil aircraft	No.
9014.10.9080	- - - - - - Other	No.
	- - - Optical instruments:
9014.10.1040	- - - - For use in civil aircraft	No.
9014.10.1080	- - - - Other	No.
9014.20	- - Instruments and appliances for aeronautical or space navigation (other than compasses):
9014.20.2000	- - - Optical instruments and appliances	No.
	- - - Other:
9014.20.4000	- - - - Automatic pilots	No.
	- - - - Other:
9014.20.6000	- - - - - Electrical	No.
	- - - - - Other:
9014.20.8040	- - - - - - For use in civil aircraft	No.
9014.20.8080	- - - - - - Other	No.
9014.80	- - Other instruments and appliances:
9014.80.2000	- - - Ships logs and depth-sounding apparatus	No.
9014.80.6000	- - - Other	No.
9014.90.0000	- - Parts and accessories	X
