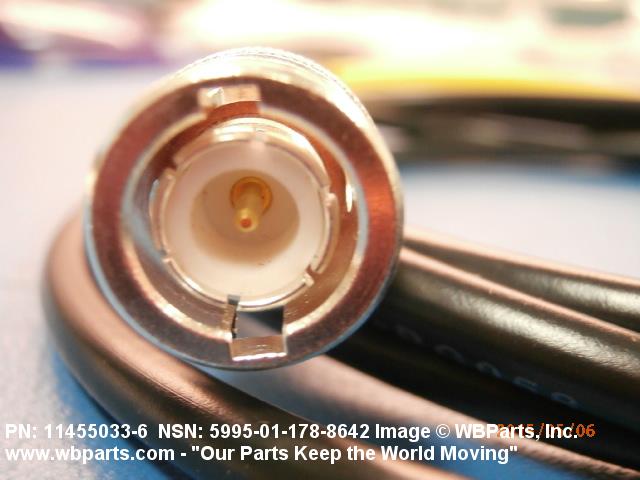

5995-01-178-8642 A definite length of CABLE, RADIO FREQUENCY having one or both ends processed and/or terminated in fittings which provide for connection to other items. Includes multiple cable assemblies in a common jacket or shield. Excludes items having branches or forks and LEAD, TEST. See also CABLE ASSEMBLY, RADIO FREQUENCY, BRANCHED.20211350043Fuzing and Firing Devices, Nuclear Ordnance59950057Cable, Cord, and Wire Assemblies: Communication Equipment
Part Alternates: 11455033-6, 49350005220112, 4935-0005-220112, 5995-01-178-8642, 01-178-8642, 5995011788642, 114550336, 011788642
Electrical and Electronic Equipment Components | Cable, Cord, and Wire Assemblies: Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 MAY 1984 | 01-178-8642 | 00886 ( CABLE ASSEMBLY, RADIO FREQUENCY ) |

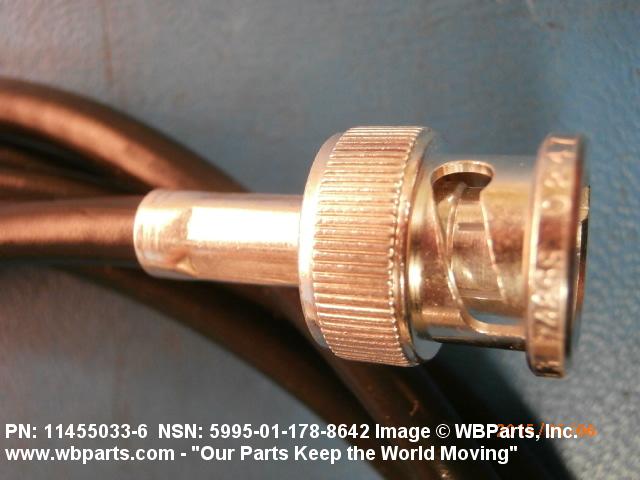

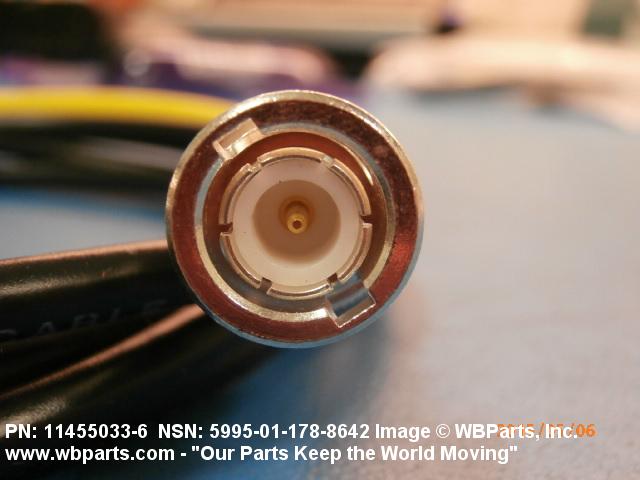

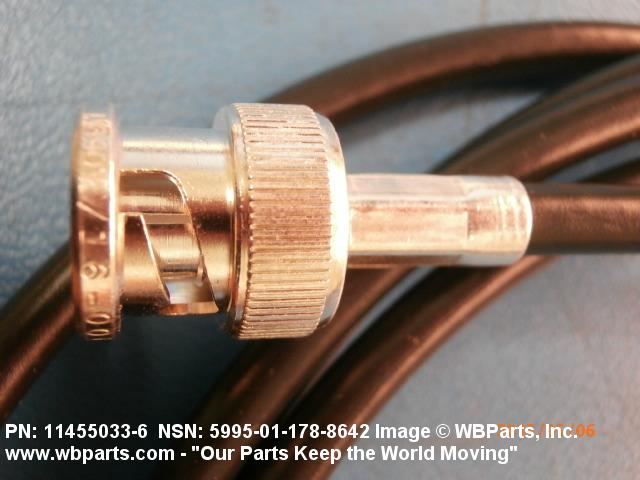

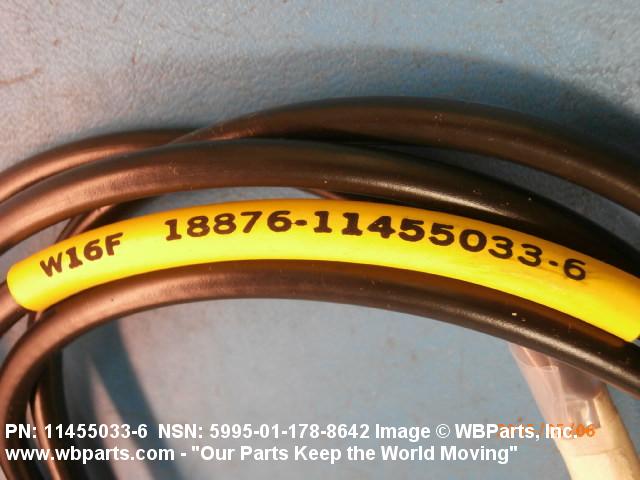

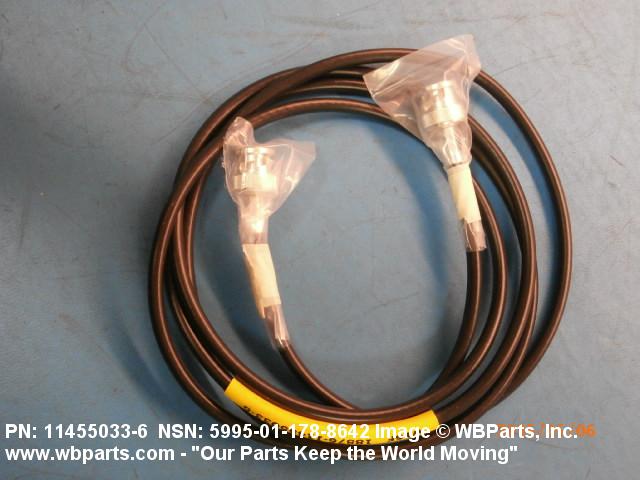

Drawings & Photos | NSN 5995-01-178-8642
Demand History | NSN 5995-01-178-8642
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5995-01-178-8642 | 2024-01-23 | 65 | DIBBS |
| 5995-01-178-8642 | 2023-08-25 | 2 | US |
| 5995-01-178-8642 | 2023-06-26 | 21 | DIBBS |
| 5995-01-178-8642 | 2023-03-30 | 43 | DIBBS |
| 5995-01-178-8642 | 2019-02-05 | 46 | DIBBS |
| 5995-01-178-8642 | 2018-10-10 | 29 | DIBBS |
| 5995-01-178-8642 | 2018-08-07 | 29 | DIBBS |
| 5995-01-178-8642 | 2018-03-19 | 29 | DIBBS |
| 5995-01-178-8642 | 2018-03-07 | 29 | DIBBS |
| 5995-01-178-8642 | 2015-04-21 | 8 | United States |
| 5995-01-178-8642 | 2014-10-16 | 1 | United States |
| 5995-01-178-8642 | 2013-08-13 | 2 | US |
| 11455033-6 | 2013-07-31 | 2 | US |
| 5995-01-178-8642 | 2013-07-31 | 2 | MANUAL |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5995-01-178-8642
Related Products | NSN 5995-01-178-8642
5995-01-178-8752, 5995-01-178-8753, 5995-01-178-8821, 5995-01-178-8983, 5995-01-178-8984
Technical Data | NSN 5995-01-178-8642
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 1 |
| CONDUCTOR FORM | STRANDED SINGLE CONDUCTOR |
| MATERIAL | COPPER CORE CONDUCTOR SINGLE CONDUCTOR |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-343 FED SPEC SINGLE MATERIAL RESPONSE CORE CONDUCTOR SINGLE CONDUCTOR |
| ROUND CONDUCTOR SIZE | 20 AWG SINGLE CONDUCTOR |
| STRAND QUANTITY PER CONDUCTOR | 19 SINGLE CONDUCTOR |
| STRAND AWG SIZE PER CONDUCTOR | 34 SINGLE CONDUCTOR |
| CONDUCTOR ARRANGEMENT AND QUANTITY | 1 COAXIAL |
| ELECTRICAL RESISTANCE | 50.00 OHMS IMPEDANCE |
| STYLE DESIGNATOR | 40 INTERNAL AND EXTERNAL CONNECTOR |

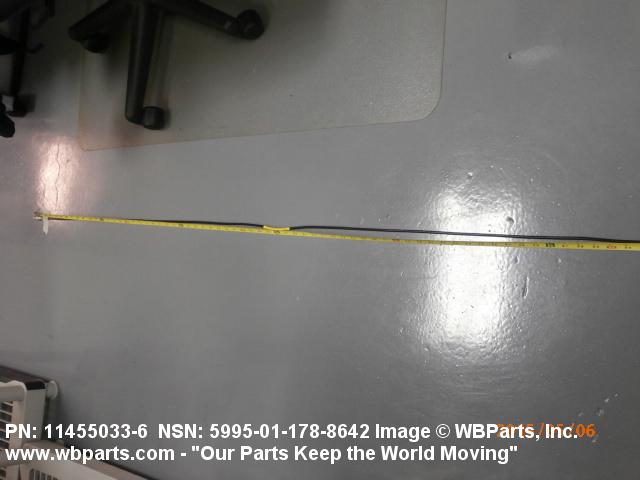

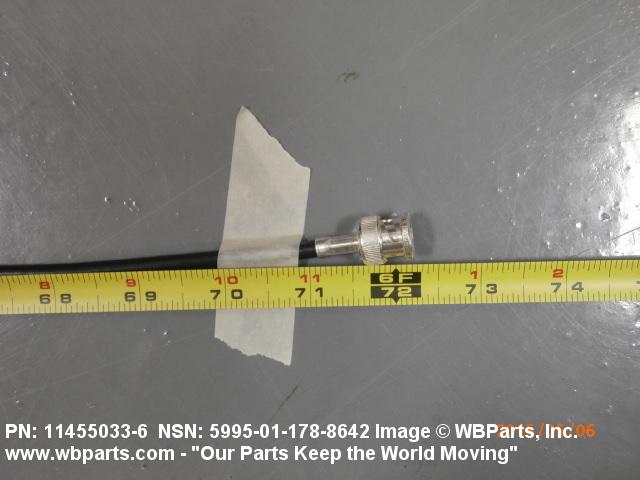

| OVERALL LENGTH | 72.000 INCHES |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| CROSS SECTION OUTSIDE DIAMETER | 0.195 INCHES NOMINAL |
| TERMINATION TYPE | CONNECTOR PLUG BOTH ENDS SINGLE CONDUCTOR |
| TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER | M39012/16-0013 1ST END SINGLE CONDUCTOR M39012/16-0013 2ND END SINGLE CONDUCTOR |
| TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE | 81349 BOTH ENDS SINGLE CONDUCTOR |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 11455033-6 |
