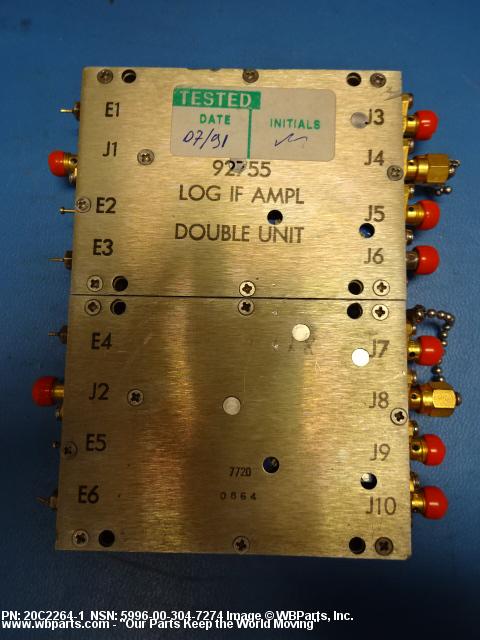

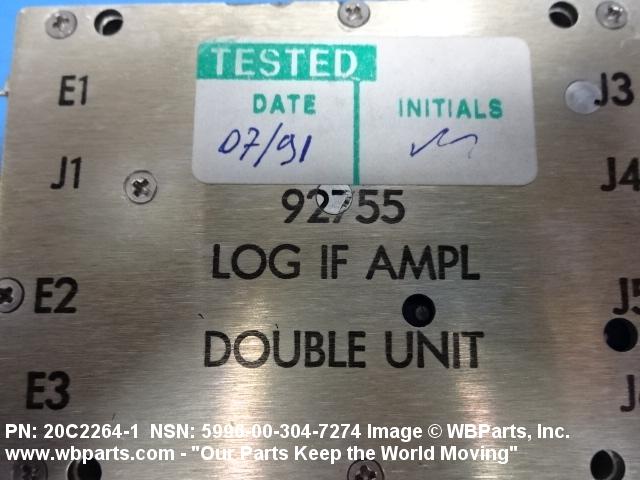

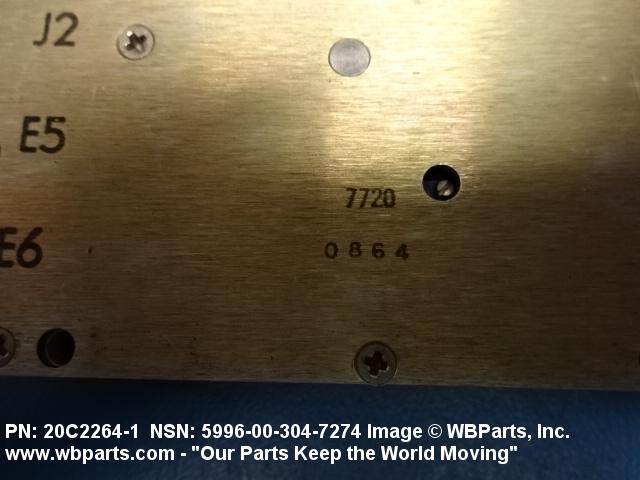

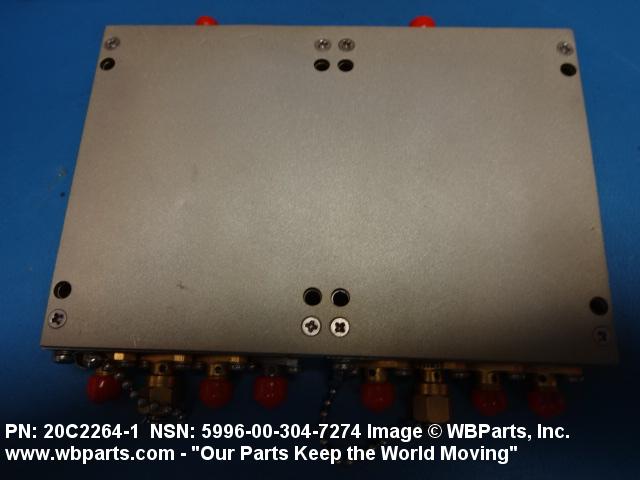

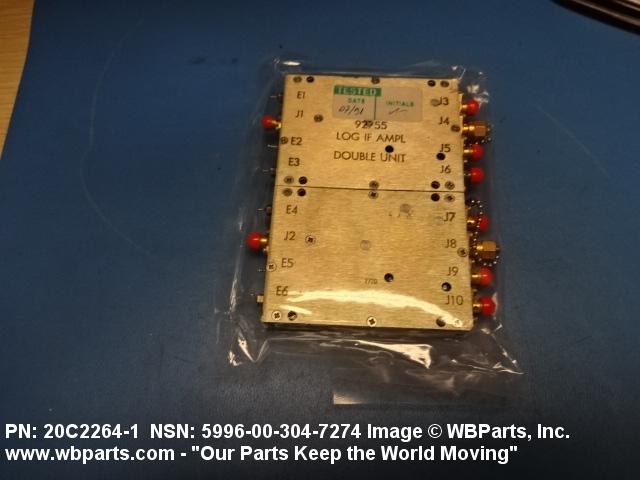

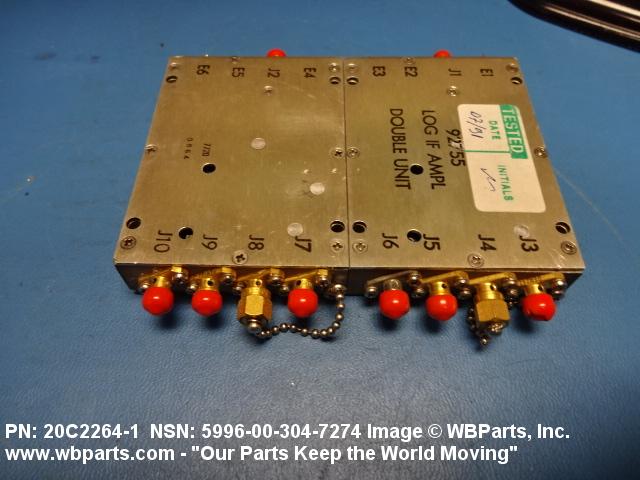

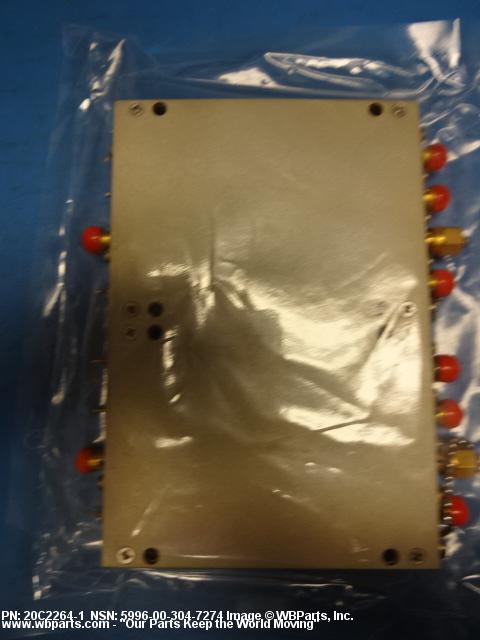

5996-00-304-7274 An electronic device whose input signals controls a local source of power and delivers an output signal of greater amplitude with respect to current and/or voltage. The output signals characteristics are uniformly related to the input signals. It is tuned to a single fixed frequency which is the resultant of heterodyne action between a local oscillator frequency and a signal frequency introduced from an external source.
Part Alternates: CT726, 20C22641, 20C2264-1, 5996-00-304-7274, 00-304-7274, 5996003047274, 003047274
Electrical and Electronic Equipment Components | Amplifiers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 OCT 1973 | 00-304-7274 | 00885 ( AMPLIFIER, INTERMEDIATE FREQUENCY ) |
Drawings & Photos | NSN 5996-00-304-7274
Demand History | NSN 5996-00-304-7274
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 20C2264-1 | 2022-01-05 | 2 | DIBBS |
| 20C22641 | 2021-05-07 | 1 | United States |
| 20C2264-1 | 2021-05-04 | 4 | DIBBS |
| 20C2264-1 | 2020-11-19 | 4 | DIBBS |
| 20C2264-1 | 2020-08-12 | 1 | DIBBS |
| 20C2264-1 | 2020-08-12 | 2 | DIBBS |
| 20C2264-1 | 2020-08-12 | 1 | DIBBS |
| 5996-00-304-7274 | 2017-04-10 | 5 | DIBBS |
| 5996-00-304-7274 | 2017-02-07 | 2 | DIBBS |
| 5996-00-304-7274 | 2016-10-16 | 4 | DIBBS |
| 5996-00-304-7274 | 2016-08-23 | 1 | United States |
| 5996-00-304-7274 | 2016-03-29 | 4 | DIBBS |
| 5996-00-304-7274 | 2013-03-19 | 3 | DIBBS |
| 5996-00-304-7274 | 2012-06-22 | 4 | DIBBS |
| 5996-00-304-7274 | 2012-05-31 | 3 | DIBBS |
| 5996-00-304-7274 | 2006-01-09 | 2 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5996-00-304-7274
Related Products | NSN 5996-00-304-7274
5996-00-304-8196, 5996-00-304-9897, 5996-00-305-2807, 5996-00-305-2808, 5996-00-305-2827
Technical Data | NSN 5996-00-304-7274
| Characteristic | Specifications |
|---|---|
| CIRCUIT CONSTRUCTION TYPE | SOLID STATE |
| FREQUENCY PER CHANNEL | 60.0 MEGAHERTZ NOMINAL OPERATING CHANNEL |
| IMPEDANCE RATING PER CHANNEL | 50.000 OHMS INPUT CHANNEL 50.000 OHMS OUTPUT CHANNEL |
| AVERAGE LIFE MEASUREMENT | NOT RATED |
| OPERATING TEMP RANGE | -15.0 TO 65.0 DEG CELSIUS |
| EXTERNAL DC OPERATING VOLTAGE IN VOLTS | 6.0 NOMINAL SINGLE VOLTAGE |
| INCLOSURE TYPE | ENCASED |
| BASIC SHAPE STYLE | 1 RECTANGULAR OR SQUARE |
| OVERALL LENGTH | 4.865 INCHES NOMINAL |
| OVERALL HEIGHT | 0.730 INCHES NOMINAL |
| OVERALL WIDTH | 4.110 INCHES NOMINAL |
| III FSC APPLICATION DATA | ANALYZER,SIGNAL PULSE,RECEIVING SET,COUNTERMEASURES |
| MANUFACTURERS CODE | 92755 |
| MFR SOURCE CONTROLLING REFERENCE | 20C2264-1 |
