Product Details | ELECTRONIC TEST EXTENDER CARD
5998-01-168-9780 An item consisting of a hand wired or printed wiring board, with or without a retaining plate, rails, brackets, or electrical connector(s) which is designed to provide access to a circuit card assembly or electronic components assembly for testing, test point checking and troubleshooting.
Part Alternates: 01A22839801, 01A228398-01, 5998-01-168-9780, 01-168-9780, 5998011689780, 011689780
Electrical and Electronic Equipment Components | Electrical and Electronic assemblies, Boards, Cards, and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 DEC 1983 | 01-168-9780 | 62400 ( EXTENDER CARD, ELECTRONIC TEST ) |

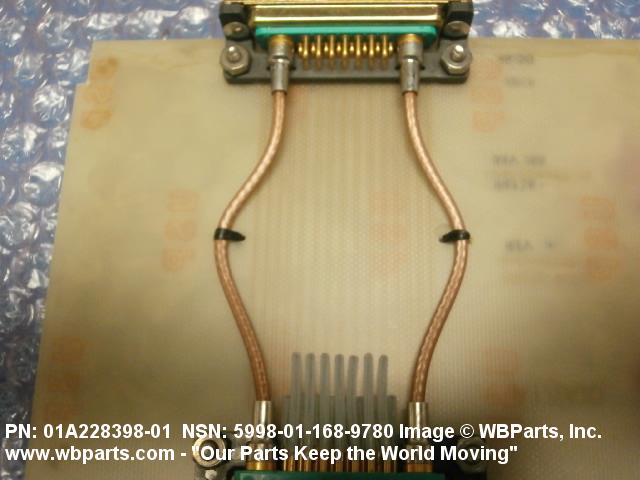

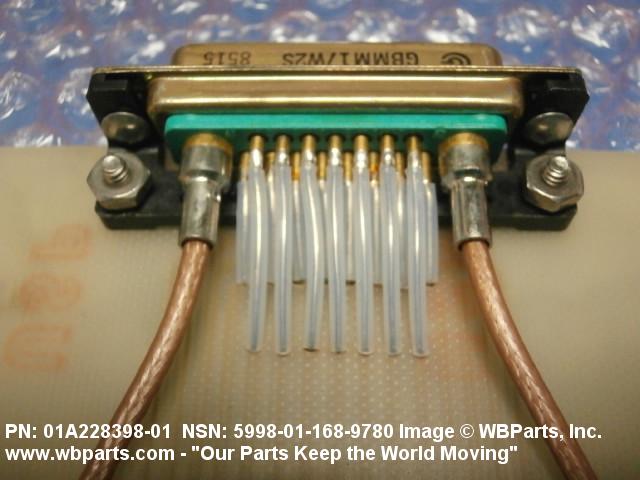

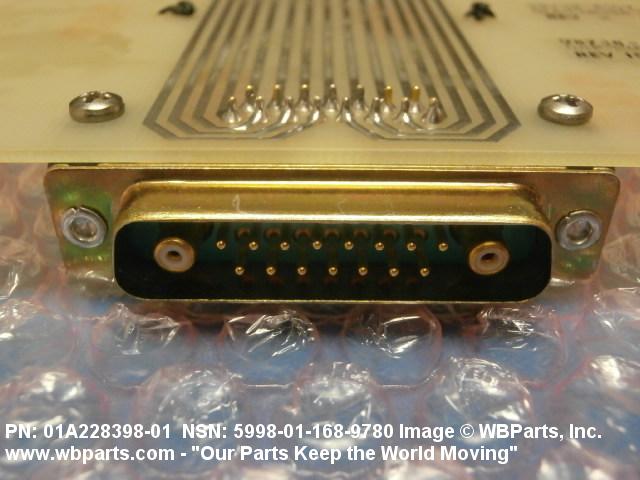

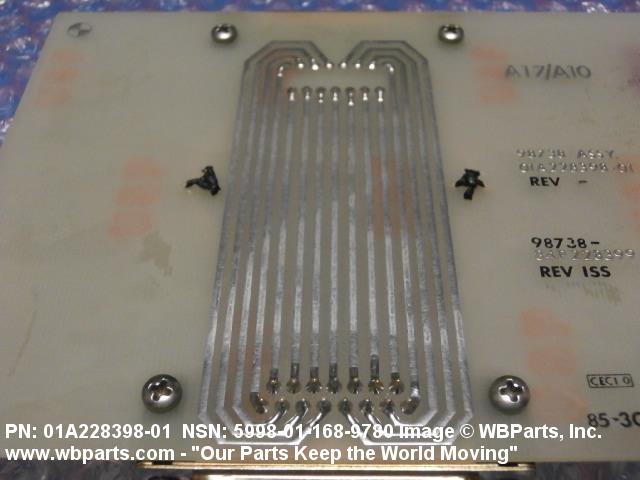

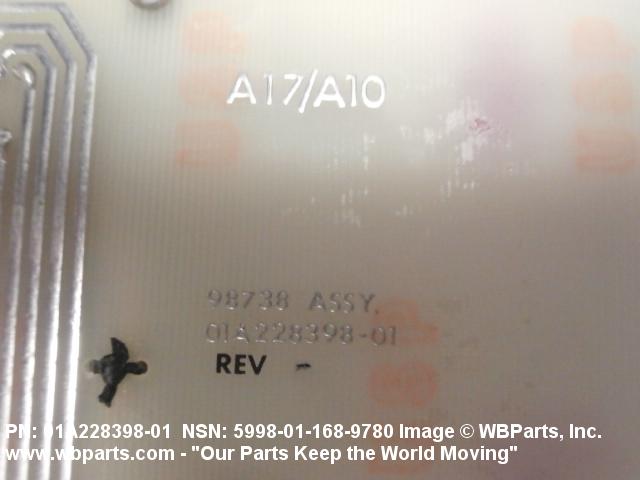

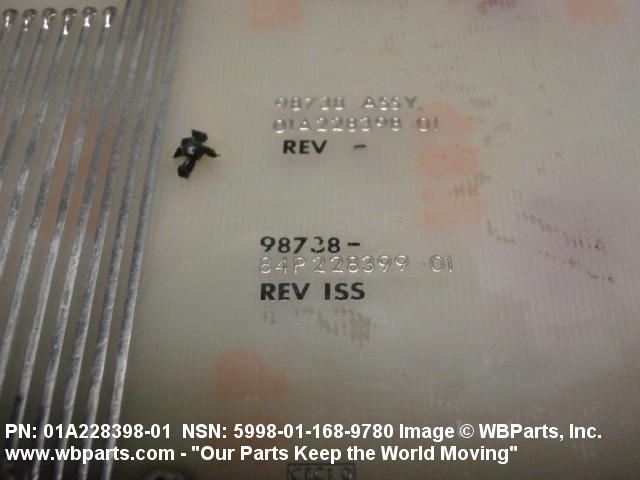

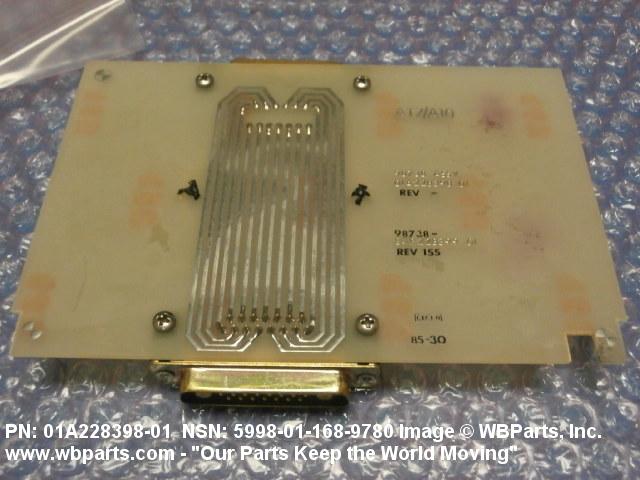

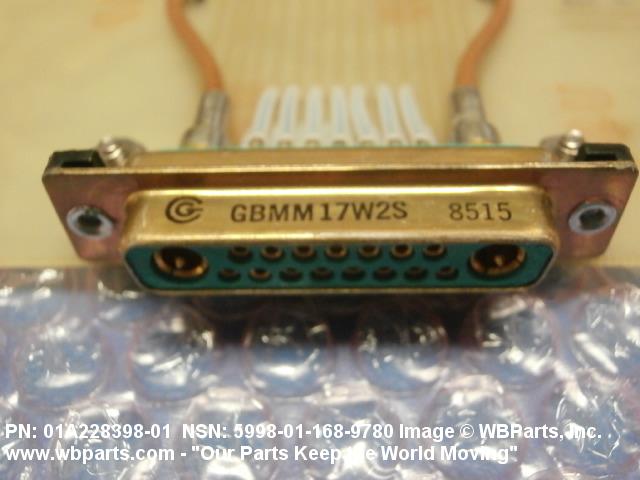

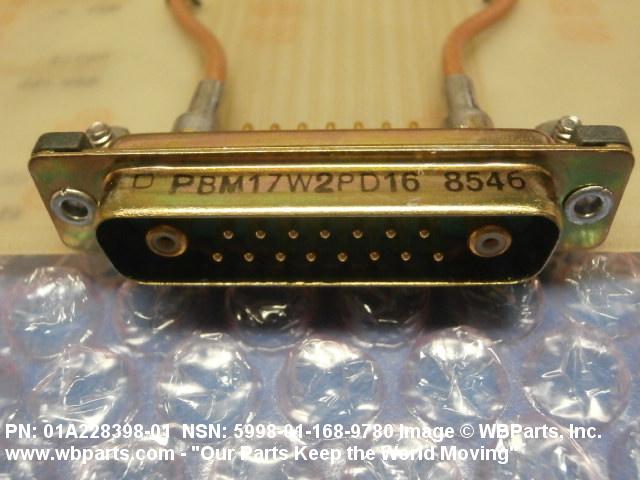

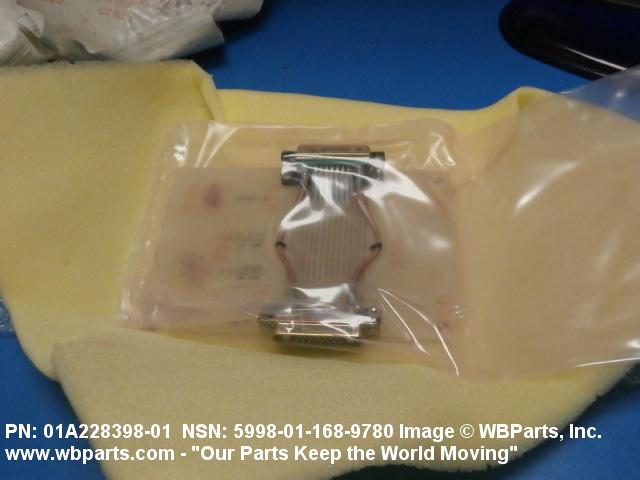

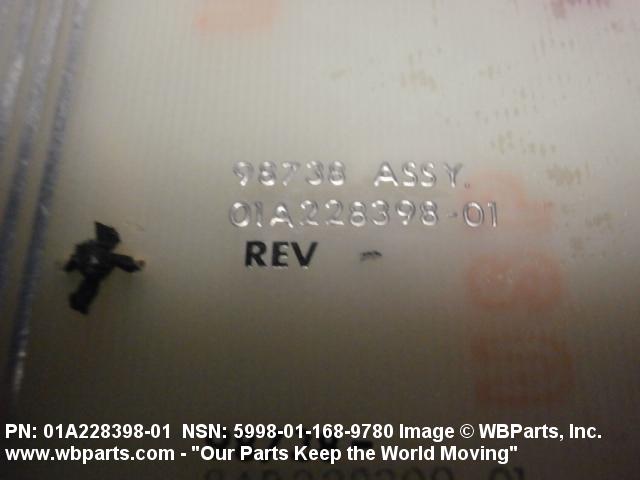

Drawings & Photos | NSN 5998-01-168-9780
Demand History | NSN 5998-01-168-9780
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 01A228398-01 | 2020-11-05 | 3 | DIBBS |
| 5998-01-168-9780 | 2015-06-24 | 3 | us |
| 5998-01-168-9780 | 2014-11-14 | 7 | DIBBS |
| 5998-01-168-9780 | 2014-11-03 | 7 | DIBBS |
| 5998-01-168-9780 | 2014-06-12 | 4 | DIBBS |
| 5998-01-168-9780 | 2014-06-01 | 4 | DIBBS |
| 5998-01-168-9780 | 2014-05-06 | 2 | DIBBS |
| 5998-01-168-9780 | 2012-10-21 | 1 | DIBBS |
Cross Reference | NSN 5998-01-168-9780
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 01A228398-01 | 98738 | HERLEY CHICAGO DBA STEWART WARNER ELECTRONICS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5998-01-168-9780
5998-01-168-9781, 5998-01-168-9782, 5998-01-169-0649, 5998-01-169-0962, 5998-01-169-0963
Restrictions/Controls & Freight Information | NSN 5998-01-168-9780
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061045 | BOARDS PRINTED CIRCUIT ELEC |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5998-01-168-9780
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
