Product Details | KNITTED WIRE MESH

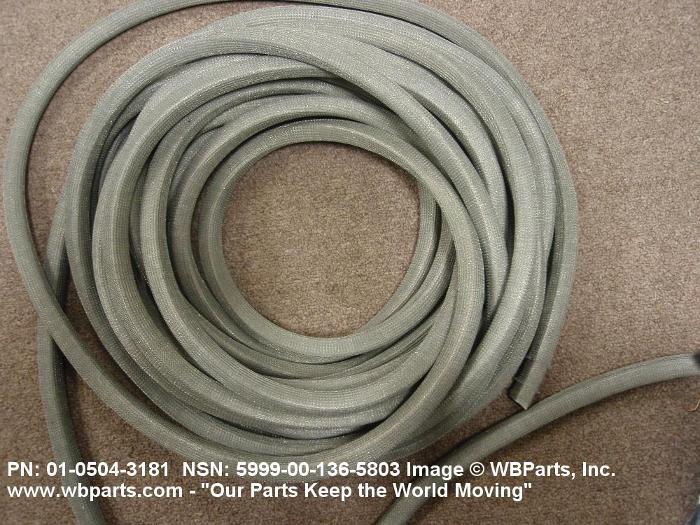

5999-00-136-5803 A resilient knitted mesh consisting of a multiplicity of interlacing wire loops. It is manufactured in various cross-sectional shapes and may include fins. It includes items designed for mechanical and/or electronic use. Item may contain a resilient core or be impregnated with a resilient compound, such as rubber or plastic to provide for weather sealing. For items made by weaving and/or welding wires to form meshes, see WIRE FABRIC. For items shaped from this material, see SHIELDING GASKET, ELECTRONIC. Excludes BRAID, WIRE; WIRE CORD; and WEATHER STRIP.

Part Alternates: CD256111, CD2561-1-1, SMB5646703, SM-B-564670-3, SMB564670-3, 0105043181, 01-0504-3181, 0308047745, 03-0804-7745, 205010400231, 2050-1040-0231, 2143151, 21-43151, 3000501B, 30-00501B, 3186840C, 31-86840C, 3186840E, 31-86840E, 5999-00-136-5803, 00-136-5803, 5999001365803, 001365803

Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components

Supply Group (FSG) NSN Assign. NIIN
59 24 JAN 1969 00-136-5803

Drawings & Photos | NSN 5999-00-136-5803



Demand History | NSN 5999-00-136-5803


Part Number Request Date QTY Origin
03-0804-7745 2021-11-30 39 DIBBS
2050-1040-0231 2021-11-30 39 DIBBS
SM-B-564670-3 2021-11-30 39 DIBBS
03-0804-7745 2021-11-15 9 DIBBS
2050-1040-0231 2021-11-15 9 DIBBS
SM-B-564670-3 2021-11-15 9 DIBBS
03-0804-7745 2021-10-31 9 DIBBS
2050-1040-0231 2021-10-31 9 DIBBS
SM-B-564670-3 2021-10-31 9 DIBBS
5999-00-136-5803 2019-05-16 10 US
5999-00-136-5803 2018-09-28 1 SG
5999-00-136-5803 2018-07-03 1 SG
5999-00-136-5803 2013-03-22 173 DIBBS
5999-00-136-5803 2013-02-01 296 DIBBS
5999-00-136-5803 2013-01-24 159 DIBBS
5999-00-136-5803 2011-06-07 50 United States
5999-00-136-5803 2011-05-27 62 DIBBS
5999-00-136-5803 2011-02-07 150 DIBBS
5999-00-136-5803 2011-01-04 322 DIBBS
5999-00-136-5803 2010-09-02 1 SG
5999-00-136-5803 2009-10-30 129 DIBBS
5999-00-136-5803 2009-08-24 1 Brazil
SMB5646703 2008-02-04 150 United States

Cross Reference | NSN 5999-00-136-5803


Part Number Cage Code Manufacturer
01-0504-3181 12881 METEX CORPORATION DIV ELECTRONIC SHIELDING GROUP
03-0804-7745 12881 METEX CORPORATION DIV ELECTRONIC SHIELDING GROUP
03-0804-7745 18565 PARKER-HANNIFIN, CORPORATION DBA PARKER CHOMERICS DIV
2050-1040-0231 64411 TECH-ETCH, INC.
21-43151 07700 TECHNICAL WIRE PRODUCTS LLC DBA TWP
30-00501B 07700 TECHNICAL WIRE PRODUCTS LLC DBA TWP
31-86840C 07700 TECHNICAL WIRE PRODUCTS LLC DBA TWP
31-86840E 07700 TECHNICAL WIRE PRODUCTS LLC DBA TWP
CD2561-1-1 13175 GENERAL SHELTER CORP
SM-B-564670-3 30817 LAIRD TECHNOLOGIES INC.
SM-B-564670-3 81337 ARMY, UNITED STATES DEPARTMENT OF THE
SMB564670-3 80063 US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 5999-00-136-5803


Technical Data | NSN 5999-00-136-5803


Characteristic Specifications
WIRE MATERIAL STEEL
WIRE SURFACE TREATMENT COPPER CLAD AND TIN COATED
WIRE DIAMETER 0.00450 INCHES NOMINAL
CROSS-SECTIONAL SHAPE SQUARE
CROSS-SECTIONAL WIDTH 0.531 INCHES MINIMUM AND 0.593 INCHES MAXIMUM
CROSS-SECTIONAL THICKNESS 0.531 INCHES MINIMUM AND 0.593 INCHES MAXIMUM
OVERALL LENGTH 202.500 INCHES NOMINAL
WEATHER SEALING COMPOUND IMPREGNATION NOT PROVIDED
NONMETALLIC CORE PROVIDED
CORE MATERIAL SILICONE SPONGE
CORE CONSTRUCTION CELLULAR
III USAGE DESIGN ELECTRONIC SHIELDING ON RADIO FREQ EQUIPMENT
MANUFACTURERS CODE 81337
DESIGN CONTROL REFERENCE SM-B-564670-3
