Product Details | DELAY LINE
5999-00-613-2239 An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY.
Part Alternates: 95G1419, 5999-00-613-2239, 00-613-2239, 5999006132239, 006132239
Electrical and Electronic Equipment Components | Miscellaneous Electrical and Electronic Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-613-2239 | 06373 ( DELAY LINE ) |
Drawings & Photos | NSN 5999-00-613-2239
Cross Reference | NSN 5999-00-613-2239
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 95G1419 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5999-00-613-2239
Related Products | NSN 5999-00-613-2239
5999-00-613-4000, 5999-00-613-5110, 5999-00-613-6321, 5999-00-613-6781, 5999-00-613-6907
Technical Data | NSN 5999-00-613-2239
| Characteristic | Specifications |
|---|---|
| SIGNAL DELAY METHOD | INDUCTANCE |
| DELAY TIME VARIATION METHOD | VARIABLE |
| INDIVIDUAL SECTION QUANTITY | 2 |
| OPERATING TEMP RANGE | NOT RATED |
| INPUT IMPEDANCE RATING | NOT RATED |
| OUTPUT IMPEDANCE RATING | NOT RATED |
| ATTENUATION IN DECIBELS | NOT RATED |
| VOLTAGE RATING | NOT RATED |
| PULSE RISE TIME RATING | 0.2 MICROSECONDS |
| FREQUENCY RATING | NOT RATED |
| FREQUENCY BANDWIDTH | NOT RATED |

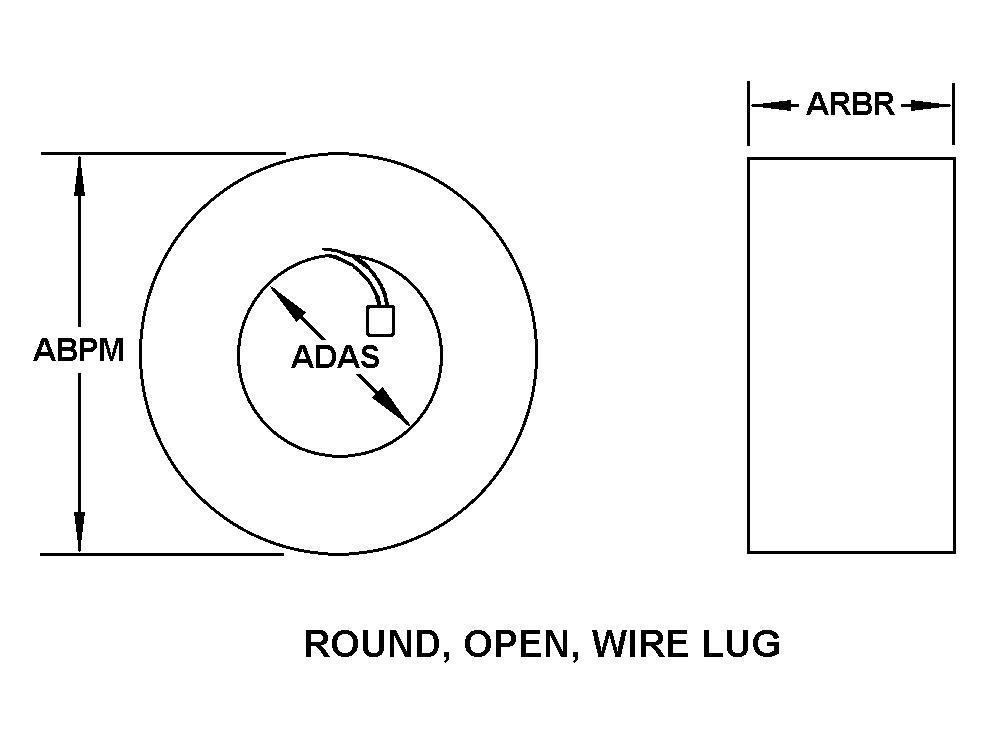

| BODY STYLE | 16 ROUND, OPEN, WIRE LUG |
| BODY DIAMETER | 1.656 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 1.856 INCHES NOMINAL |
| BODY DEPTH | 0.875 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 4 WIRE LOOP |
| MOUNTING FACILITY | THREADED STUD |
| MOUNTING FACILITY QUANTITY | 2 |
| STUD LENGTH | 0.406 INCHES NOMINAL |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.164-32 UNC |
| THREAD CLASS | 1A |
| THREAD PITCH DIAMETERS | 0.2174 TO 0.2175 INCHES |
| MOUNTING PROVISION ARRANGEMENT STYLE | 6 2 POSITION IN-LINE |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 1.500 INCHES NOMINAL |
